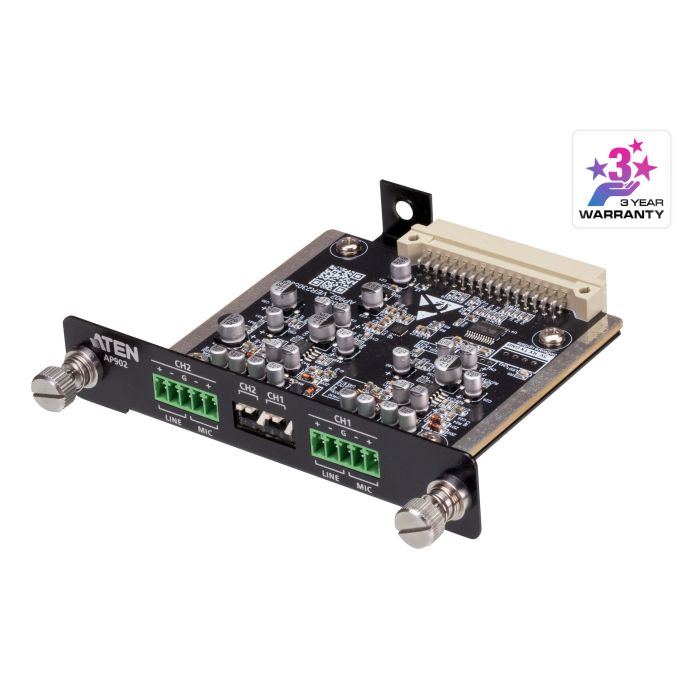

Dedicated for use with ATEN’s AP DSP Power Amplifier series, the AP902 is a plug-in expansion card providing the AP amplifiers with dual-channel inputs. It is capable of handling balanced / unbalanced audio signals ranging from mic level to line level, making it easier to combine the amplifiers with sources coming from mixers, media players, or other audio equipment utilized in pro-level live sound applications, enhancing audio system flexibility and versatility. The preamp’s circuitry is designed to lower the noise floor and improve the dynamic range to assure superior audio reproduction for the two extra microphone inputs it adds to the AP2 power amplifier series, making it a perfect solution for sound reinforcement applications such as paging systems and lecture halls.
| Microphone Inputs | |
| Gain Range | -6~+36dB |
| Impedance | 3kΩ |
| Line Inputs | |
| Gain Range | -6~+36dB |
| Maximum Input Level | +24dBu, Nominal Input Level: +4dBu |
| Impedance | Balanced: 20kΩ Unbalanced: 10kΩ |
| System Specification | |
| Distortion | THD+N: Line In <0.01%, +4dBu @1kHz, 0dB Gain Mic In <0.25%, -20dBu, @1kHz, 0dB Gain |
| Frequency Response | 50~20kHz, +/-0.5dB, Line In to ATEN AP2 Line Out |
| Compliance | |
| Certification | FCC, CE, UKCA Tested with ATEN AP2 Amplifier |
| Environmental | |
| Operating Temperature | 0~50℃ |
| Humidity | 0-80% RH, Non-Condensing |
| Storage Temperature | -20~60℃ |
| Physical Properties | |
| Weight | 0.12 kg ( 0.26 lb ) |
| Housing | Metal Panel |
| Dimensions (L x W x H) | 11.50 x 2.20 x 11.00 cm (4.53 x 0.87 x 4.33 in.) |
