Aten CE604 USB Dual View DVI KVM Extender

€652.41 €539.18
Delivery time: 3-5 working days
USB Dual View DVI KVM Extender with Audio and RS-232 (60m)

Description

The CE604 is a DVI Dual View USB based KVM Extender, features Dual View functionality which enables the video output to seamlessly display on two monitors.With RS-232 serial functionality, that allows access to a computer system from a remote console up to 60m away. The CE604 is aimed for control and security purposes, targeting to fi nancial and industrial market.

The CE604 is equipped with RS-232 serial channel for connecting to a serial terminal, or serial devices such as touchscreens and barcode scanners. In addition, it supports advanced PC Wake- Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site. The CE604 eliminates the need for traveling back and forth between the local computer and remote console, effi cient and fl exible.

The CE604 is ideal for anywhere that the console needs to be in a conveniently accessible location, but the system equipment needs to reside in a safe place – away from dust, dirt, and harsh environmental infl uences. It also provides a cost-effective way of keeping sensitive data such as fi nancial and personal information safe in a heavily secured data center, but still allowing remote access to users.

Voor meer informatie.

Features


• Integrated KVM console with a 19 LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
• LCD module rotates up to 115? for a more comfortable viewing angle
• Improved design – optional single person installation kit
• Compatible with most KVM switches
• Internal power supply
• High video resolution:
• Up to 1280 x 1024 @75Hz
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor – Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
• Keyboard language support: English (US); English (UK);French; German; German (Swiss); Italian; Japanese;Hungarian; Korean; Spanish; Swedish; Traditional Chinese;Russian

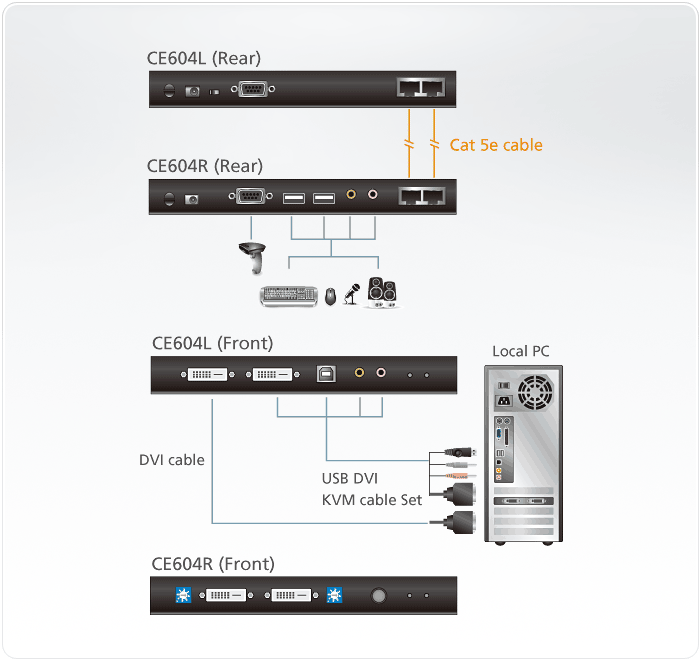

Diagram

Content

• 1x CE604L (Local Unit)
• 1x CE604R (Remote Unit)
• 1x 2L-7D02U USB DVI KVM Cable Set (1.8m)
• 1x LIN5-26W-W11G DVI Cable (1.8m)
• 2x 0AD6-1605-24EG Power Adapters
• 1x Mounting Kit
• 1x User Instructions

Specifications

Function CE604L CE604R
Connectors KVM Ports USB 1 x USB Type B Female (White) N/A
Speakers 1 x Mini Stereo Jack Female (Green) N/A
Mic. 1 x Mini Stereo Jack Female (Pink) N/A
Video input 1 x DVI-D Female (White) N/A
Console Ports Video N/A 2 x DVI-D Female (White)
Speakers N/A 1 x Mini Stereo Jack Female (Green)
Mic. N/A 1 x Mini Stereo Jack Female (Pink)
Keyboard N/A 1 x USB Type A Female (White)
Mouse N/A 1 x USB Type A Female (White)
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack (Black)
Sub / Main 2 x RJ-45 Female (Black)
LEDs Link 1 (Green) 1 (Green)
Power 1 (Green) 1 (Green)
Switches Compensation switch N/A 2 x 8-position switch
F/W Upgrade 1 x Slide Switch N/A
Buttons Wakeup button N/A 1 x pushbutton
Video 1920x1200 @ 60Hz (30 m); 1024x768 @ 60Hz (60 m)
Power Consumption DC5.3V, 3.4W D5.3V, 4.3W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.48 kg
Dimensions
(L x W x H)
20.20 x 8.54 x 2.50 cm 20.20 x 8.70 x 2.50 cm
