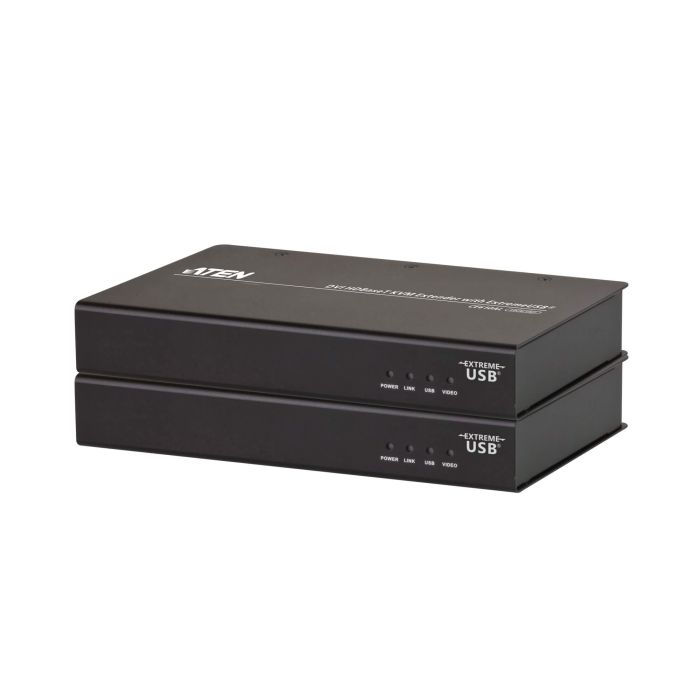

The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
Features
Uses a single Cat 5e cable to connect the local and remote units
Allows access to a computer or KVM installation from a remote console
Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
ExtremeUSB ® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Supports USB 1.1 web cameras
USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel and other USB devices which require moderate amounts of bandwidth
Extends local PC Video/Keyboard/Mouse to remote side
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Works with all major operating systems: Windows®, OS X®, and Linux®
*Note: The CE610A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices.

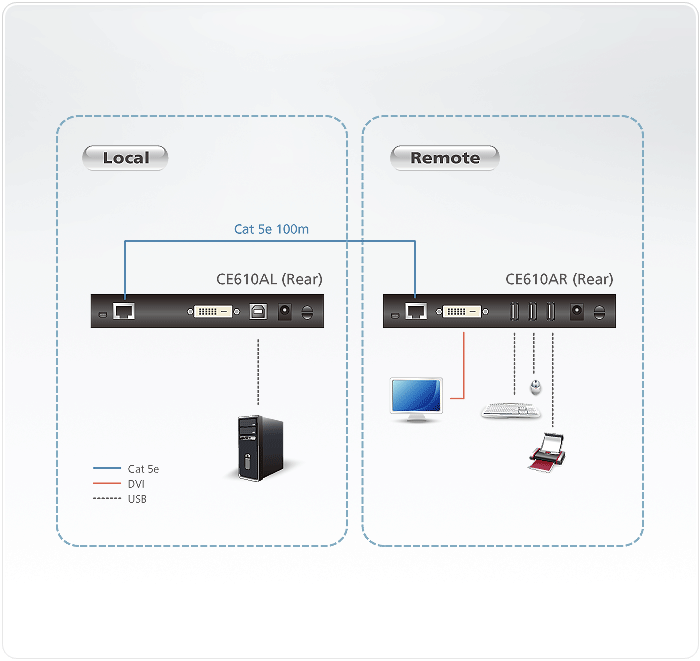

Diagram
Content
1x CE610AL DVI HDBaseT KVM Extender with ExtremeUSB ® (Local Unit)
1x CE610AR DVI HDBaseT KVM Extender with ExtremeUSB ® (Remote Unit)
1x LIN5-26W1-W11G Custom DVI Cable
1x LIN6-04U1-V1BG USB Cable
2x 0AD9-1B05-30EG Power Adapters
1x Mounting Kit
1x User Instructions
