| Rack Mounting Kit | Depth (cm) |
| 2X-010G (Long/Optional) | 70 - 105 |
| Short (Standard) | 52 - 85 |
 | |
| Easy Installation Rack Mounting Kit | Depth (cm) |
| 2X-012G (Long/Optional) | 68 - 105 |
| 2X-011G (Short/Optional) | 57 - 70 |

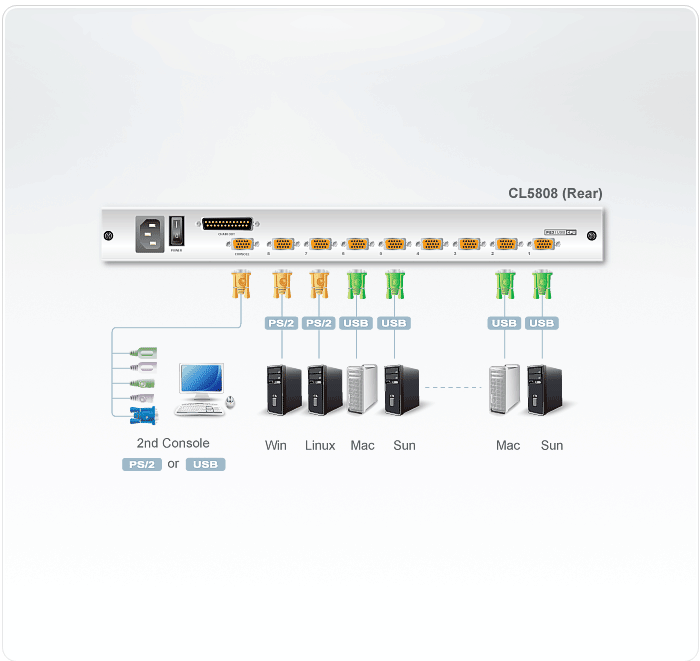

| Computer Connections | Direct | 8 | |
| Max. | 256 (via Daisy-chain) | ||
| Port Selection | OSD, Hotkeys, Pushbuttons | ||
| Connectors | External Console Port | 1 x SPHD-18 Male (Yellow) | |
| External Mouse Port | 1 x USB Type-A Female (White) | ||
| KVM Ports | 8 x SPHD-17/18 Female (Yellow) | ||
| Daisy-chain Port | 1 x DB-25 Male (Black) | ||
| FW Upgrade | 1 x RJ-11 Female (Black) | ||
| Power | 1 x 3-prong AC Socket | ||
| USB Port | 1 x USB Type-A Female | ||
| Switches | Reset | 1 x Semi-recessed Pushbutton | |
| Power | 1 x Rocker | ||
| F/W Upgrade | 1 x Slide | ||
| LCD Adjust | 4 x Pushbutton | ||
| LCD On/Off | 1 x LED Pushbutton (Orange) | ||
| Port Selection | 2 x Pushbutton (LCD); 8 x Pushbutton (Keyboard) |
||
| Station Selection | 2 x Pushbutton | ||
| LEDs | On Line | 8 (Orange) | |
| Selected | 8 (Green) | ||
| Station ID | 2 x 7-segment LED Display (Orange) | ||
| Power | 1 (Dark Green) | ||
| Lock | Num | 1 (Green) | |
| Caps | 1 (Green) | ||
| Scroll | 1 (Green) | ||
| Emulation | Keyboard / Mouse | PS/2, USB | |
| Video | 1280 x 1024 @ 75 Hz; DDC2B | ||
| Scan Interval (OSD Select) | 1–255 sec. | ||
| I/P Rating | 100–240 V AC, 50/60 Hz, 1 A | ||
| Power Consumption | 120V, 30.1W ; 230V, 30.7W | ||
| Environment | Operating Temp. | 0–50°C | |
| Storage Temp. | -20–60°C | ||
| Humidity | 0–80% RH, Non-condensing | ||
| Physical Properties |
Housing | Metal + Plastic | |
| Weight | 14.83 kg |
||
| Dimensions ( D x W x H ) |
68.04 x 48.00 x 4.40 cm | ||
