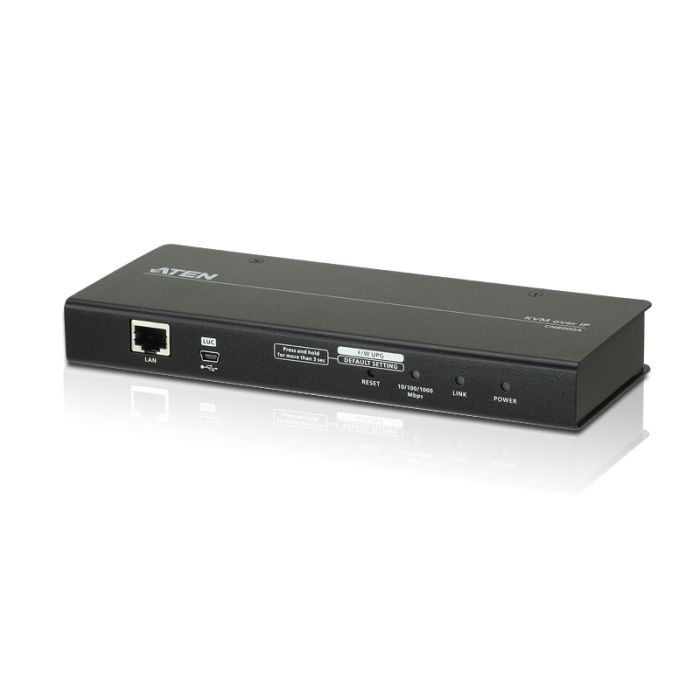

ATEN CN8000A KVM on the NET

Name: ATEN CN8000A KVM on the NET
Brand: Aten
SKU: CN8000A
Price: 490.61 EUR
Availability: InStock

Be the first to review this product

€490.61 €405.46

Item in stock

Over IP Control unit (KVM + Serial), with Virtual Media Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

1-Local/Remote Share AccessSingle Port VGA KVM over IP Switch (1920 x 1200)

Features

Hardware
Provides over-IP capability to KVM switches that do not have built in over-IP functionality *
Supports PS/2,USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
Local console provides PS/2, USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support
High video resolution – up to 1920 x 1200 @ 60 Hz- 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
Enhanced fps (frames per second) throughput for crisp responsive video display
Note:
* Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, CS1308, CS1316, CS1754*, CS1758*, CS1708A, CS1716A, ACS1208A, ACS1216A, CS228*, CS428*, KH0116, KH2508, KH2516, KH1508, and KH1516
- Some of the CN8000A’s features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media.)
- Some features found on the cascaded KVM switches may not be supported on the CN8000A. (For example, the CS1754’s audio.)
** Requires CV131A converter purchase

Management
Laptop USB Console (LUC) – A dedicated USB port directly connects to laptop for easy console operation
Easy configuration through local console OSD
Up to 64 user accounts
Up to 32 concurrent logins
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Critical system events sent by email and SNMP trap; and Syslog support
Remote Firmware upgradable
Serial console management – serial terminal access. Access the CN8000A via a built-in serial viewer, or via third party
PPP mode (modem) dial-in/dial back/dial out support for out-of-band, and low bandwidth operation
Port Share Mode allows multiple users to gain access to a server simultaneously
Local/Remote Share Mode to conveniently grant shared or exclusive console privilege
Integration with ATEN CC2000 Centralized Management Software
Power Over the NET integration for remote power control
DDNS (Dynamic Domain Name System)
Export/import user account and configuration settings
Enable/disable browser operation
IPv6 capable

Easy-to-Use Interface
Browser-based and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel

Advanced Security
Smart Card /CAC Reader Support
External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
TLS 1.2 encryption to protect password when users log in
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
Support for IP/MAC Filter
Supports password protection
Private CA

Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Convenient to use without virtual media cable

Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse Dynasync
Exit Macros support
BIOS-level access

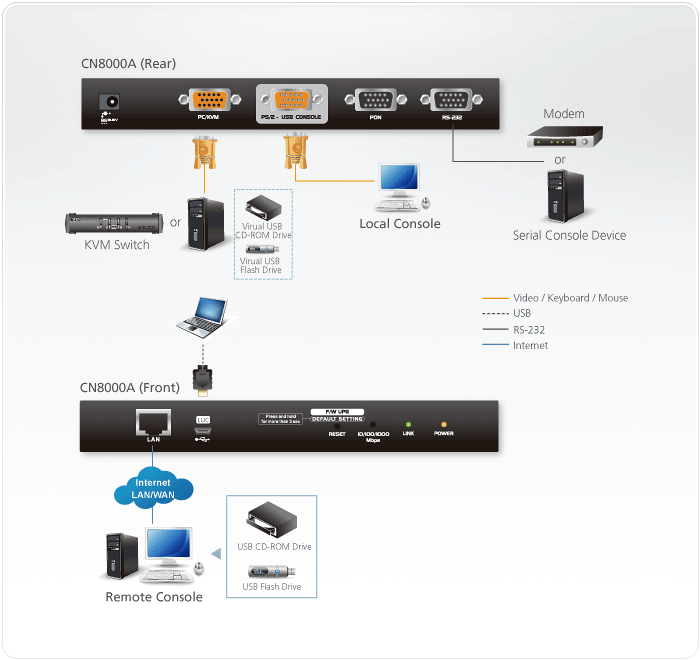

Diagram

Content

1x CN8000A Single Port KVM over IP
1x 2L-5301UP Custom KVM Cable Set
1x LIN5-27X6-U21G Custom Console Cable Set
1x LIN5-04U1-U1LG Laptop USB Cable
1x 0AD6-1605-24EG Power Adapter
1x Rack Mounting Kit
1x User Instructions

Specifications

Connectors
Console Ports	1 x SPHD-18 Male (Yellow)
KVM (Computer) Ports	1 x SPHD-18 Female (Yellow)
Laptop USB Console (LUC) Port	1 x USB Mini-B Female
PON	1 x DB-9 Male
RS-232	1 x DB-9 Male
LAN Ports	1 x RJ-45 Female
Power	1 x DC Jack
Switches
Reset	1 x Semi-recessed Pushbutton
LEDs
Power	1 (Orange)
Link	1 (Green)
10/100/1000 Mbps	1 (Orange / Orange+Green /Green)
Emulation
Keyboard / Mouse	USB; PS/2
Video	Up to 1920 x 1200 @ 60 Hz; DDC2B
Power Consumption	DC5.3V, 7.26W
Environmental
Operating Temperature	0 - 50°C (CN8000A) 0 - 40°C (Power Adapter)
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.49 kg ( 1.08 lb )
Dimensions (L x W x H)	20.00 x 8.14 x 2.50 cm (7.87 x 3.2 x 0.98 in.)

Datasheet

ATEN CN8000A KVM on the NET Datasheet
