Laptop USB Console (LUC) – a dedicated mini USB port for direct, easy console operation via a laptop
Provides over IP capability to KVM switches without over IP functionality
Provides an FPGA graphics processor for better image quality
Dual power supply to ensure seamless connectivity
Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
Supports 5-pin Relay/DI Terminal for environment monitoring and remotely reboot control
Supports USB and legacy PS/2 keyboard and mouse
Management
Complies to the RS-232 standards for serial control
Up to 64 user accounts – up to 32 users can simultaneously share control
Console access right management
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Event Logging – the CN9000 can record all events that take place on it and write them to a searchable database
Supports instant notification of critical system events via email, SNMP trap and Syslog
Firmware upgradable via remote access
Access the CN9000 via a built-in serial viewer, or third-party software (such as PuTTY) for Telnet and SSH sessions
Out of Band support – access the CN9000 through its serial port using a dial-up connection
Port Share Mode allows multiple users to gain access to a server simultaneously
DDNS – allows mapping of a dynamic IP address assigned by a DHCP server to a host name
Supports export/import of user account and configuration settings
Supports permission-controlled browser operation
Supports IPv6
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software
Easy-to-Use Interface
Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac, Linux, Sun)
Multibrowser support (IE, Firefox, Safari, Opera, Chrome)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel with configurable function for quick launch
Advanced Security
Smart Card/CAC Reader support
External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsers RC4 or Random for independent keyboard/mouse, video, and virtual media data encryption
Flexible design allows users to choose any combination of encryption algorithms (e.g. 256-bit AES) or system-generated random selection for independent keyboard/mouse, video, and virtual media data encryption
Supports IP/MAC Filter
Supports password protection
Private CA
Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB-enabled servers at OS and BIOS level
Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, folders and ISO images
Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
Full-screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Supports Exit Macros
BIOS-level access

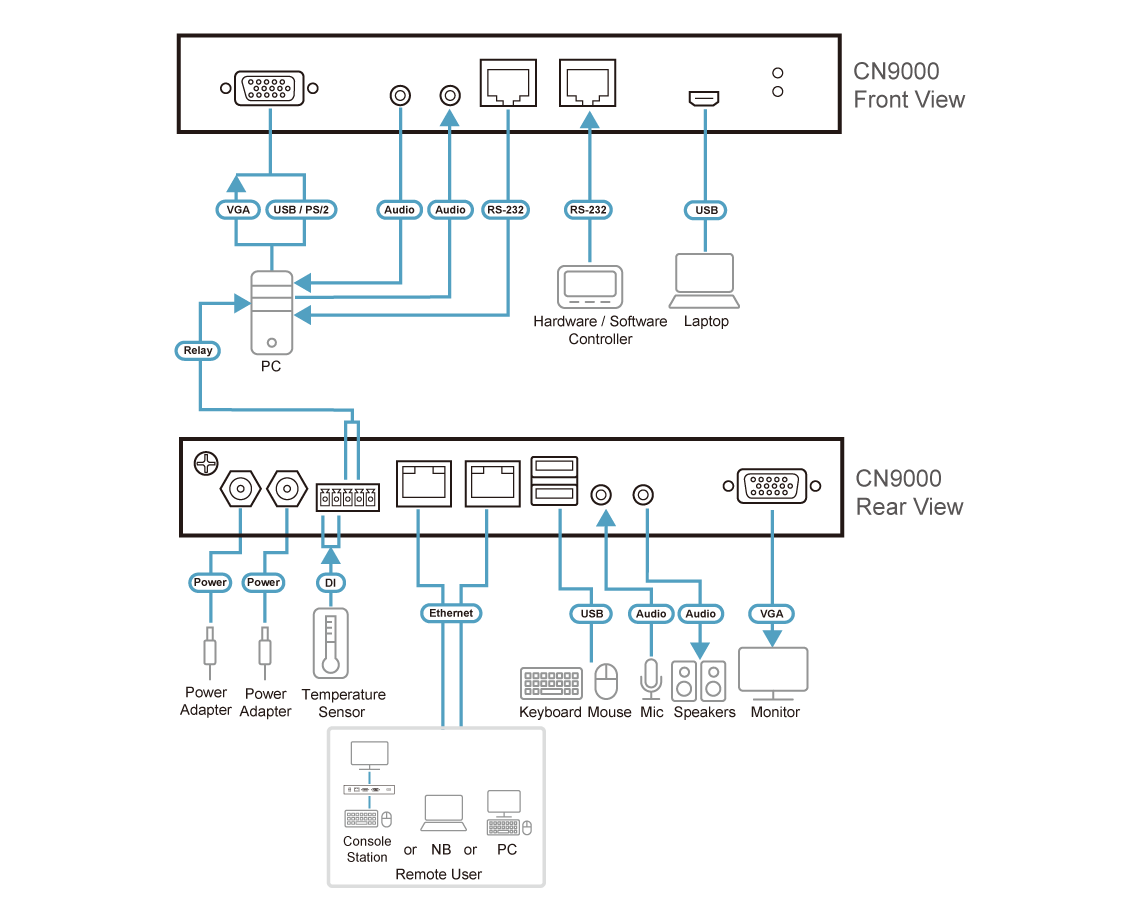

Diagram
Content
1x CN9000 VGA KVM over IP Switch
1x KVM cable (VGA, PS/2, USB)
1x USB cable (USB Type-A to Mini-B)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions
Specifications
Connectors
Console Ports
2 x USB Type A Female (White) 1 x VGA Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
KVM Ports
1 x SPHD Female (Yellow) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
LAN Ports
2 x RJ-45 Female
Virtual Media
1 x USB Mini-B Female
Power
2 x DC Jack
Serial
2 x RJ-45 Female
Control
1x PS/2 Female
Switches
Reset
1 x Semi-recessed pushbutton (Black)
Emulation
Keyboard / Mouse
USB, PS/2
LEDs
Power
2 (Green)
Video
Local console - 1920 x 1200 @ 60 Hz Remote console - 1920 x 1200
