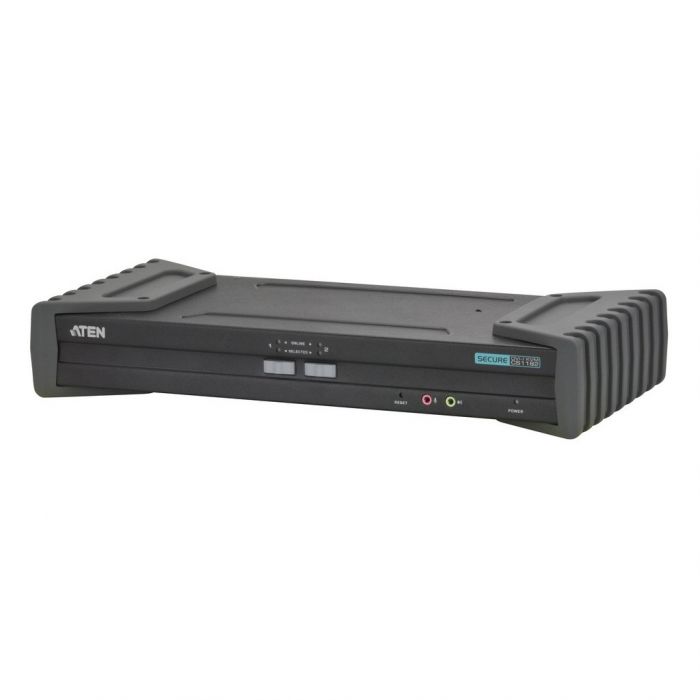

Aten CS1182 2-port USB DVI Secure KVM Switch

Name: Aten CS1182 2-port USB DVI Secure KVM Switch
Brand: Aten
SKU: CS1182
Price: 429.95 EUR
Availability: InStock

Be the first to review this product

€429.95 €355.33

Discontinued

2-port USB DVI Secure KVM Switch

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The ATEN CS1182 2-Port USB DVI Dual-Link Secure KVM Switch offers secure and reliable access for any government/military desktop environment where security is imperative by providing safe switching between computers operating on different secure networks. NIAP-certified according to Common Criteria’s EAL2+ certification, the CS1182 provides 2-port models for secure desktop workstation use.

Hardware security includes tamper-evident tape, chassis intrusion detection, and tamper-proof hardware, while software security includes restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching — an isolated channel per port that makes it impossible for data to be transferred between secure and unsecure computers, and automatic clearing of the keyboard buffer.

By combining physical security with controlled USB connectivity, the CS1182 gives you the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor and mouse (KVM) console.

Note: 1. The National Information Assurance Partnership (NIAP) is a United States government initiative to meet the security testing needs of IT consumers and manufacturers. It is operated by the National Security Agency (NSA) and the National Institute of Standards and Technology (NIST).
2. The CS1182 additionally satisfies Evaluation Assurance Level 2+ (EAL2+) requirements for Peripheral Sharing Switch (PSS) for Human Interface Devices Protection Profile v2.1.

Voor meer informatie.

Features

2-port USB DVI Dual-Link Secure KVM Switch
Port selection via Pushbutton only (OSD, hotkey methods are not allowed) to enhance security
One USB console controls 2 secure computers
NIAP-certified — validated to Common Criteria EAL2+ security requirements
Restricted USB connectivity — non HIDs (Human Interface Devices) are ignored when switching
Isolated channel per port — makes it impossible for data to be transferred between computers
Tamper-evident tape – provides a visual indication of any attempt to gain access to the switch’s internal components
Chassis intrusion detection — if the cover is removed from the switch, the unit becomes inoperable and the LEDs flash
Tamper-proof hardware — all integrated circuits are soldered directly to the circuit board to prevent tampering with the components
Non-reprogrammable ROM — prevents tampering and attempts to reprogram the switch’s firmware
Clears keyboard buffer — keyboard data is automatically cleared after transmission to the switch
Video DynaSync™ — stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution
Multiplatform support — Windows, Linux, Mac, and Sun
Superior video quality — 2560 x 1600 (DVI Dual Link); 1920 x 1200 (DVI Single Link) and 2048 x 1536 (DVI-A)
Rugged metal enclosure
Built-in internal power
Speaker and microphone support

Diagram

Content

• 1x CS1182 USB DVI Secure KVM Switch
• 1x 0AD8-0C05-24EG Power Cord
• 1x User Instructions

Specifications

ComputerConnections				2
Port Selection				Pushbutton
Connectors	Console Ports	Keyboard		1 x USB Type-A Female (Black)
		Video		1 x DVI-I Dual Link Female (White)
		Mouse		1 x USB Type-A Female (Black)
		Audio	Speaker	2 x Mini Stereo Jack Female (Green;1 x front panel,1 x rear panel)
			Microphone	2 x Mini Stereo Jack Female (Pink;1 x front panel,1 x rear panel)
	KVM Ports	Keyboard / Mouse		2 x USB Type-B Female (White)
		Video		2 x DVI-I Dual Link Female (White)
		Audio	Speaker	2 x Mini Stereo Jack Female (Green)
			Microphone	2 x Mini Stereo Jack Female (Pink)
	Power			1 x 3-prong AC Socket
Switches	Port Selection			2 x Pushbuttons
	Reset			1 x Semi-recessed Pushbutton
	Power			1 x Rocker
LEDs	Power			1 (Blue)
	On Line			2 (Green)
	Selected			2 (Orange)
Emulation	Keyboard / Mouse			USB
Video				DVI Dual Link: 2560x1600; DVI Single Link: 1920x1200 DVI-A: 2048x1536
I/P Rating				100–240V AC; 50/60 Hz; 0.5A
Power Consumption				120V / 5.1W; 230V / 5.1W
Environment	Operating Temp.			0-40°C
	Storage Temp.			-20-60°C
	Humidity			0 - 80% RH, Non-condensing
Physical Properties	Housing			Metal
	Weight			2.06 kg
	Dimensions ( L x W x H )			34.9 x 16.9 x 6.06 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
