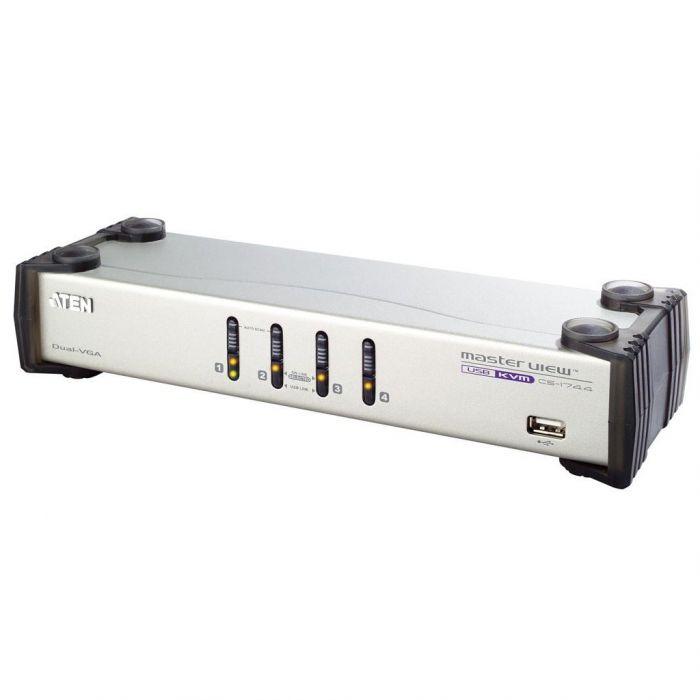

Aten CS1744C 4-Port USB Dual-View KVMP Switch

€238.95 €197.48
Delivery time: 3-5 working days
4-Port USB Dual-View KVMP Switch. (incl. bijhorende kabels)

Description


CS1744 KVM Switch integrates functions of video signal dual output and USB KVM switches. It allows a computer with dual-screen support to pair with two VGA/SVGA/Multisync displays via a USB keyboard and mouse. Furthermore, CS1744 provides 1 USB port on each of the front and rear panels, allowing each server to share any USB peripheral device that is connected to this HUB. Voor meer informatie.

Features


Allows one USB keyboard, USB mouse, speakers, microphone and two displays to control four dual display computers
2 port USB Hub built in
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting
Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradeable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers.

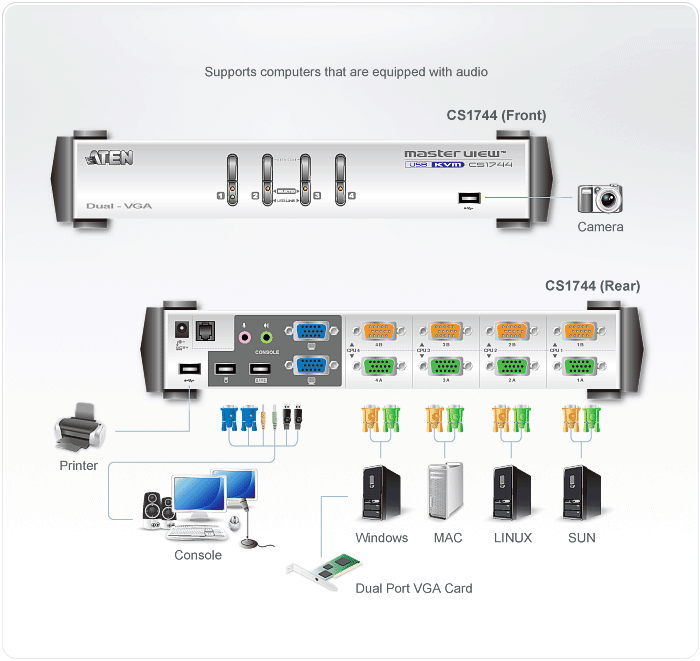

Diagram

Content


• 1x 4-Port USB Dual-View KVMP™ Switch
• 4x 2L-5202A-1 KVM Cable (Audio/Video)
• 4x 2L-5202U USB KVM Cables
• 1x UC20KMZ-A-11 USB-to-PS/2 Converter
• 1x Firmware Upgrade Cable
• 1x User Instructions

Specifications

Computer Connections 4
Port Selection Hotkeys, Pushbutton
USB Port/ Audio Port Selection Hotkey
Connectors Console Ports Keyboard 1 x USB Type A Female (White)
Video 2 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female (Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Speaker/Microphone 4 x SPHD-15 Male (Yellow)
Video1
Keyboard/Mouse 4 x SPHD-15 Female (Green)
Video2
USB Hub 2 x USB Type A Female (White)
F/W upgrade 1 x RJ11 Female (Black)
Power 1 x DC Jack (Black)
Switches Port 4 x Pushbutton
LEDs On Line / Selected 4 (Orange)
USB Link 4 (Green)
Emulation Keyboard/Mouse USB
Video 2048 x 1536; DDC2B
Scan Interval 1~99 seconds
Power Consumption DC5V, 1.35W
Environment Operating Temp. 0~50°C
Storage Temp. -20~60°C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Metal
Weight 1.03 kg
Dimensions ( L x W x H ) 27.00 x 8.70 x 5.50 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
