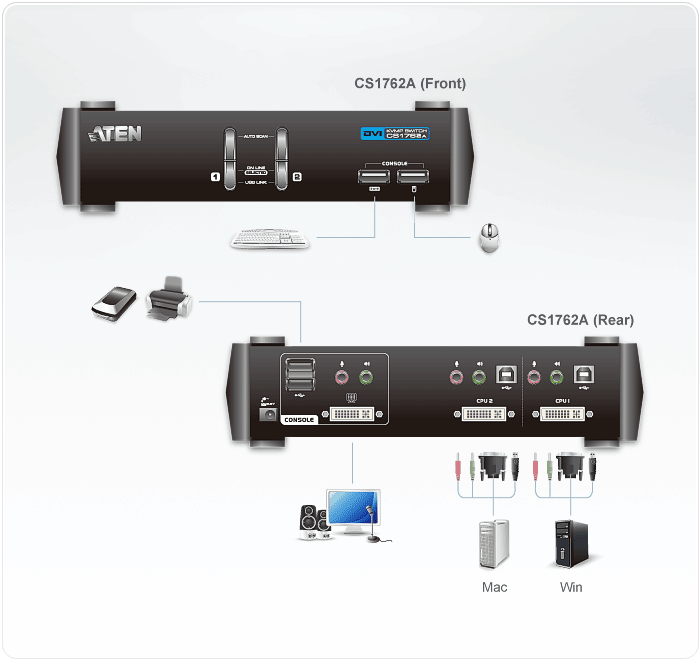

One USB console controls two DVI computers and two additional USB 2.0 devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
Computer selection via front panel pushbuttons, hotkeys, and mouse
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support – Windows, Linux, Mac, and Sun
Supports widescreen resolutions
Superior video quality – 1920 x 1200
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifi cations
HDCP compatible
Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboards only work with their own computer
Content

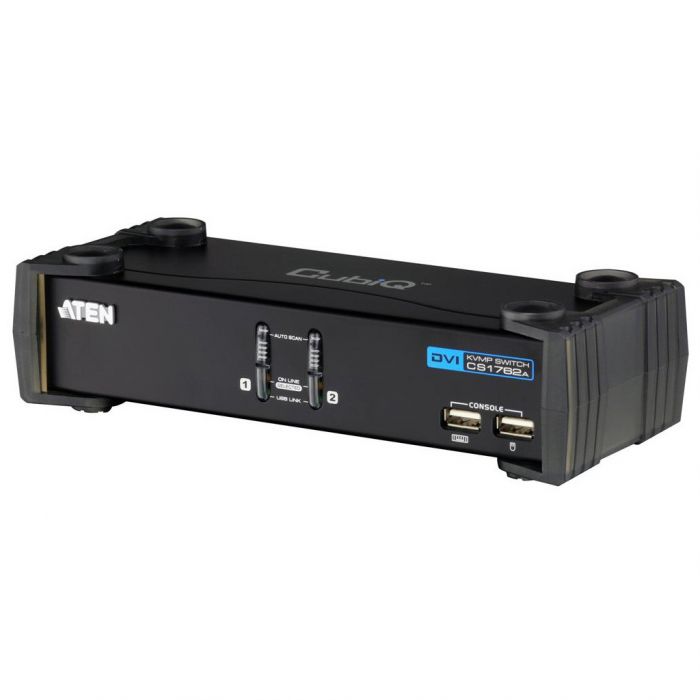

• 1 x CS1762A USB 2.0 DVI KVMP™ Switch
• 2 x 2L-7D02U USB DVI-D Single Link KVM Cables
• 1 x 0AD6-1605-24EG Power Adapter
• 1 x User Instructions
