Aten CS1784A 4 Port USB 2.0 DVI KVMP Switch

Be the first to review this product

€277.90 €229.67

Item in stock

4 Port USB 2.0 DVI KVMP Switch with 2.1 Audio , Supports 3D(incl. bijbehorende kabels)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

Voor meer informatie.

Features

4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
One USB console controls four computers and two additional USB devices
2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
Full bass response for high quality 2.1 channel surround sound systems
Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
Multiplatform support – Windows, Linux, Mac, and Sun*
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support – fully compliant with the DVI specifications
Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link): Works with cutting edge 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080 for your ideal workspace and entertainment
HDCP compatible
Support widescreen resolutions
Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping – supports English, Japanese, and French keyboards
Auto Scan Mode for monitoring all computers
Firmware upgradable

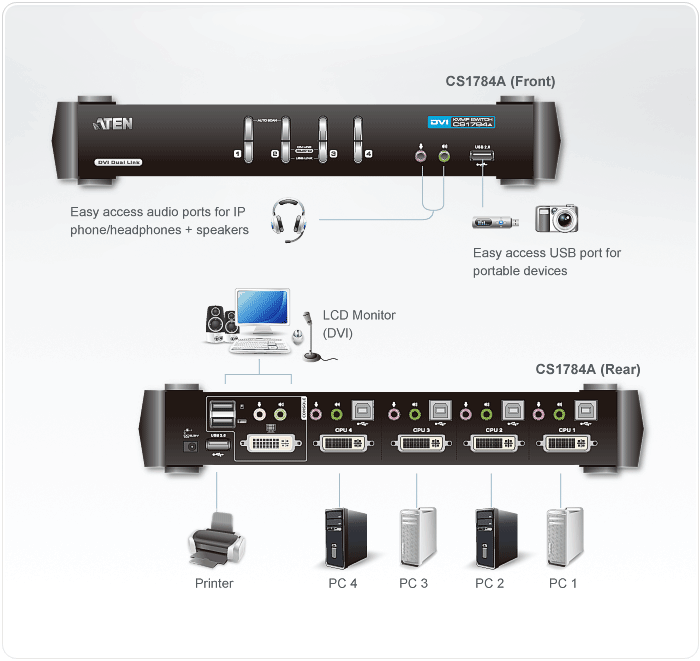

Diagram

Content

• 1x CS1784A USB DVI Dual Link KVMP™ Switch
• 4x 2L-7D02UD DVI-D KVM Cable Sets
• 1x 0AD6-1605-24EG Power Adapter
• 1x User Instructions

Specifications

Computer Connections				2
Port Selection				Front Panel Pushbuttons, Hotkeys, Mouse
Connectors	Console Ports	Keyboard		1 x USB Type A Female (Black; rear panel)
		Video		1 x DVI-I Female (White)
		Mouse		1 x USB Type A Female (Black; rear panel)
		Audio	Line Out	2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel)
			Microphone	2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel)
	KVM Ports	Keyboard / Mouse		4 x USB Type B Female (White)
		Video		4 x DVI-I Female (White)
		Audio	Line Out	4 x Mini Stereo Jack Female (Green)
			Microphone	4 x Mini Stereo Jack Female (Pink)
	Power			1 x DC Jack
	USB 2.0 Hub			2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)
Switches	Power Selected			4 x Pushbutton
LEDs	On Line / Selected			4 (Orange)
	USB Link			4 (Green)
Emulation	Keyboard / Mouse			USB
Video				DVI Dual Link: 2560x1600 DVI Single Link: 1920 x 1200
Scan Interval				1–99 secs. (5 secs. default)
Power Consumption				DC 5.3V, 10 W
Environment	Operating Temp.			0 -50°C
	Storage Temp.			-20-60°C
	Humidity			0–80% RH, Non-condensing
Physical Properties	Housing			Metal
	Weight			0.93 kg
	Dimensions ( L x W x H )			27.00 x 8.70 x 5.50 cm
