Aten CS1794 4-Port USB 2 HDMI KVMP Switch

€321.29 €265.53
Delivery time: 3-5 working days
4-Port USB 2.0 HDMI KVMP Switch. (incl. bijhorende kabels)

Description

With its unique design and innovative features, the CubiQ™ CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.
Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the home or office, the CubiQ™ CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Voor meer informatie.

Features

4-port HDMI USB 2.0 KVMP™ Switch
One USB console controls two HDMI-interface computers and two additional USB devices
2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
HDMI digital monitor support - fully compliant with HDMI 1.3a; also HDCP compliant
Dolby True HD and DTS HD Master Audio support
Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
Supports widescreen resolutions
Multiplatform support - Windows, Linux,and Mac
Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Complete keyboard emulation for error-free booting
Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers and HDMI devices
Firmware Upgradable

* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers

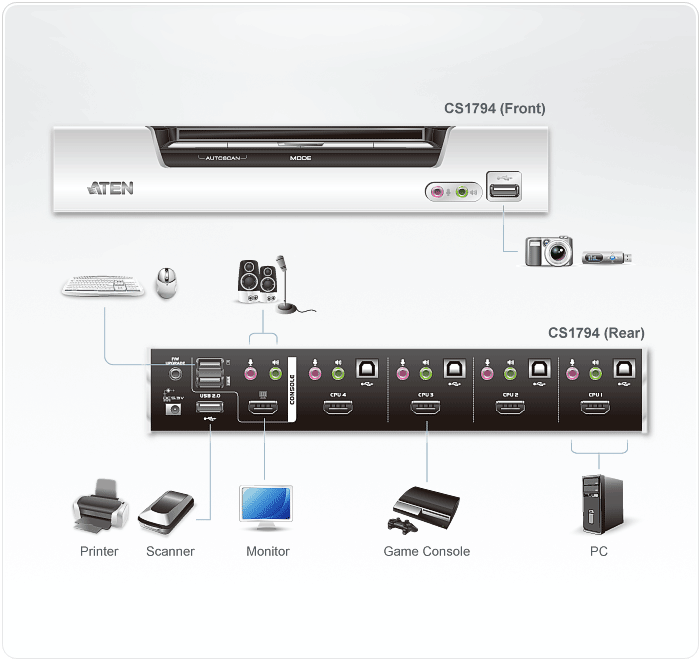

Diagram

Content

• 1x CS1794 USB 2.0 HDMI KVMP™ Switch
• 4x 2L-7D02UH HDMI KVM Cable Sets
• 1x Firmware Upgrade Cable
• 1x 0AD6-1605-24EG Power Adapter
• 1x UC20KMZ-A-11 USB-to-PS/2 Converter
• 1x User Instructions

Specifications


Computer Connections 4
Port Selection Front Panel Pushbuttons; Hotkeys
Connectors Console
Ports
Keyboard 1 x USB Type A Female
(Black; rear panel)
Video 1 x HDMI Type A Female (Black)
Mouse 1 x USB Type A Female
(Black; rear panel)
Speaker 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear)
Mic. 2 x Mini Stereo Jack Female
(Pink; 1 x front, 1 x rear)
KVM
Ports
Keyboard / Mouse 4 x USB Type B Female (White)
Video 4 x HDMI Type A Female (Black)
Speaker 4 x Mini Stereo Jack Female (Green)
Mic. 4 x Mini Stereo Jack Female (Pink)
F/W Upgrade 1 x 4-conductor 3.5mm Jack (Black)
Power 1 x DC Jack
USB 2.0 Hub 2 x USB Type A Female
(White; 1 x front panel; 1 x rear panel)
Switches Selected 5 x Pushbutton
LEDs Audio 5 (Green)
KVM 5 (Orange)
USB 5 (Green)
Emulation Keyboard/Mouse USB
Video 1080p (HDTV) / 1920 x 1200 (DVI)
Scan Interval 1-99 secs. (Default: 5 secs)
Power Consumption DC 5.3 V, 4.8 W
Environment Operating Temp. 0-50?XC
Storage Temp. -20-60?XC
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal, Plastic
Weight 0.53 kg
Dimensions
(L x W x H)
26.50 x 7.30 x 4.50 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
