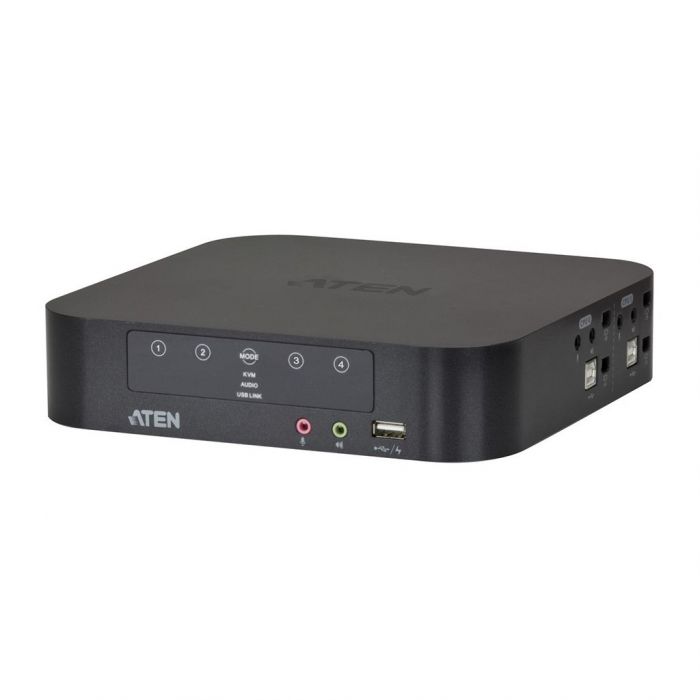

The CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch allows access to 4 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches amazing functionality combines a Dual view 4-port Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices.
The CS1944 further improves on previous KVM designs with the latest Mini-DisplayPort and Mini-TOSLINK connectors. It also provides the capability of digital video & audio with reliable Ultra high resolution, vivid picture quality, surround sound with SPDIF connections. The CS1944 is ideal for multimedia applications, and offers the ultimate in space-saving, streamlined KVM technology for the desktop.
• One dual-view USB console independently and simultaneously controls four Mini DisplayPort computers and two USB devices • USB quick charge mode (front panel USB port) • Mini DisplayPort 1.1a & HDCP compatible • Full bass response provides a rich experience for digital surround sound systems via Mini-TOSLINK • Superior video quality – enables up to 2560 x 1600 resolution and 3D displays up to 1920x1080 resolution at 120Hz • Nvidia 3D Vision Ready • 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specifications • Computer selection via front touch panel /hotkeys/ mouse* • Independent switching for USB peripherals, audio, and KVM focus • Keyboard and Mouse support emulation and bypass • Power on Detection • Mac keyboard support and emulation** • Multilingual keyboard mapping – Supports English, Japanese, and French keyboards • Multiplatform support – Windows, Linux and Mac
* Mouse port switching is only workable under mouse emulation mode. For 3-key USB wheel mouse only. **PC keyboard combinations emulate Mac keyboards. **Mac keyboards only work with their own computers.

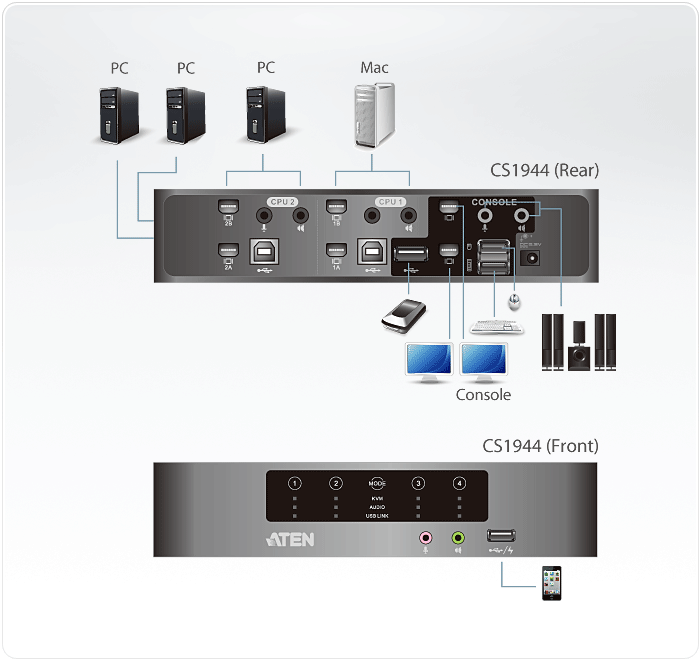

Diagram
Content
• 1x CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch • 4x Mini DisplayPort 1.1a 1 m Cable • 4x Mini DisplayPort 1.1a 2 m Cable • 4x USB 2.0 1.8 m Cable • 4x LIN5-0205-21DG Audio Jack 1.8 m Cable Sets • 1x 0AD6-1605-24EG Power Adapter • 1x User Instructions
Specifications
Computer Connections
4
Port Selection
Touch Panel Switches, Hotkey, Mouse
Connectors
Console Ports
Keyboard
1 x USB Type A F (Black, rear panel)
Video
2 x Mini DisplayPort F (Black)
Mouse
1 x USB Type A F (Black, rear panel)
Speaker
1 x Mini TOSLINK Jack F (Black) 1 x 3.5mm Audio Jack F (Green)
Microphone
1 x Mini TOSLINK Jack F (Black) 1 x 3.5mm Audio Jack F (Pink)
KVM Ports
Keyboard / Mouse
4 x USB Type B F (White)
Video
8 x Mini DisplayPort F (Black)
Speaker
4 x Mini TOSLINK Jack F (Black)
Microphone
4 x Mini TOSLINK Jack F (Black)
USB 2.0 Hub
2 x USB Type A F (White; 1 x Front panel, 1 x Rear panel)
Power
1 x DC Jack
Switches
Selected
4 x Point Touch Panel
LEDs
KVM
4 (Orange)
Audio
4 (Green)
USB
4 (Green)
Emulation
Keyboard
USB
Mouse
Video
DP: 2560 x 1600 resolution @ 60Hz, or 3D Display 1920 x 1080 resolution @ 120Hz
Scan Interval
1 – 99 seconds (Default: 5 seconds)
Power Consumption
DC5.3V, 8.63W
Environment
Operating Temp.
0 – 50°C
Storage Temp.
–20 – 60°C
Humidity
0 - 80% RH, Non-condensing
Physical Properties
Housing
Plastic
Weight
614 g
Dimensions ( L x W x H )
19.70 x 19.70 x4.47 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
