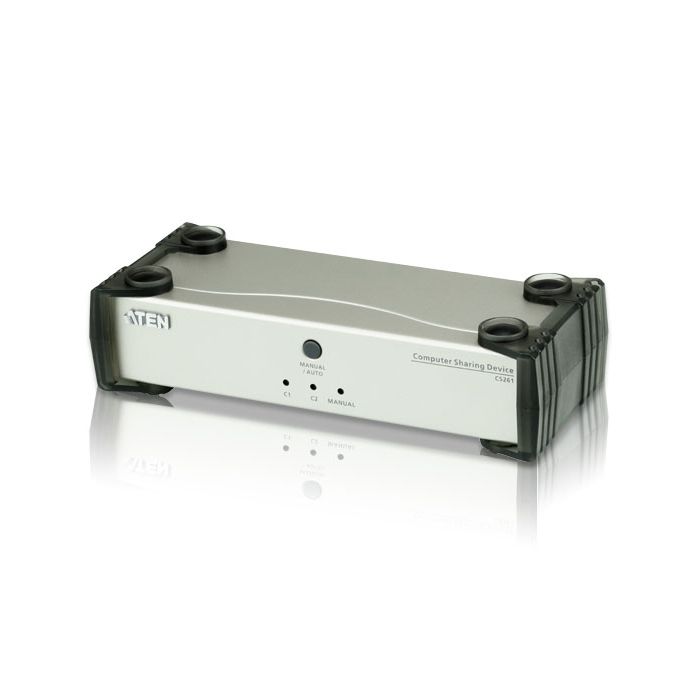

The CS261 offers a multi-user/single-task experience that enables two users to share the use of a computer from two consoles (monitor, USB keyboard, USB mouse, speakers and microphone).
Features
Expand control of a DVI computer with (one at a time) shared access between two user consoles
Superior Video Quality – supports resolutions up to 1080p, 1920 x 1200, and 4K @ 30 Hz*
Supports 2.1 channel stereo sound and high definition audio**
HDCP Compliant – supports HDCP-enabled devices
EDID Expert™ – selects optimum EDID settings for smooth power up, high-quality display and use of the best resolution across different monitors
Exclusive Console Modes: -Auto: Computer access switches to a console on a first come first serve basis -Manual: Computer access switches to a console using the front panel pushbutton or a hotkey
Supports RS-232 serial commands to switch operation and configure settings
Screen Saver Feature – blocks the console's display after a period of inactivity
Mac/Sun keyboard emulation: consoles can use PC keyboards while working on Macintosh/Sun platforms***
Multilingual Keyboard Mapping – supports English, Japanese, French and German keyboards
Multiplatform Support: Windows, Linux, Mac or Sun
Upgradeable firmware to stay current with updates
No Software Required – eliminates incompatibility and installation issues and the need to configure software
Note: * 4K @ 30 Hz is supported when using a DVI to HDMI cable. ** High definition audio can be converted using a DVI to HDMI cable. *** PC keyboard combinations emulate Mac/Sun keyboards.

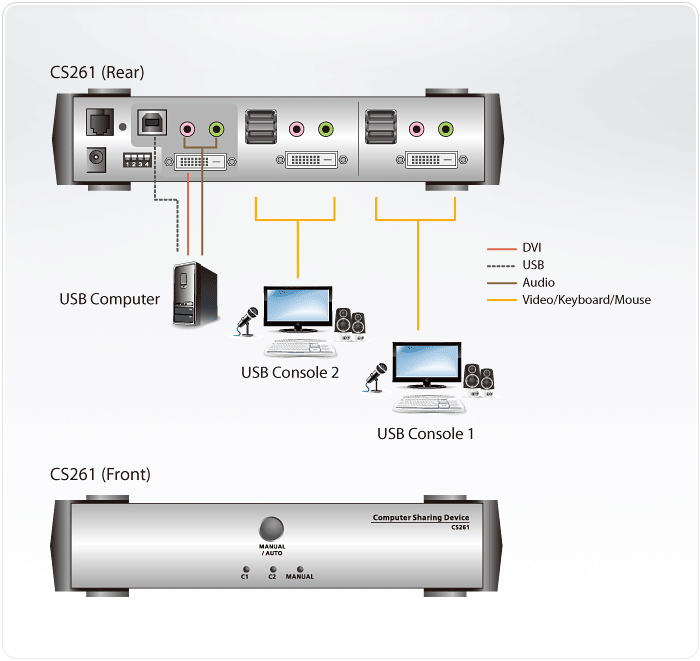

Diagram
Content
1x CS261 DVI Computer Sharing Device 1x 2L-7D02UI Custom KVM Cable Set 1x 0AD6-1005-26EG Power Adapter 1x User Instructions
Specifications
Computer Connections
1
Console Selection
Pushbutton, RS-232, Hotkey* Note: Selecting the console via hotkeys only works in Manual Mode
Connectors
Console Ports
2 x DVI-D Female (White) 4 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
KVM Ports
1 x DVI-D Female (White) 1 x USB Type B Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
