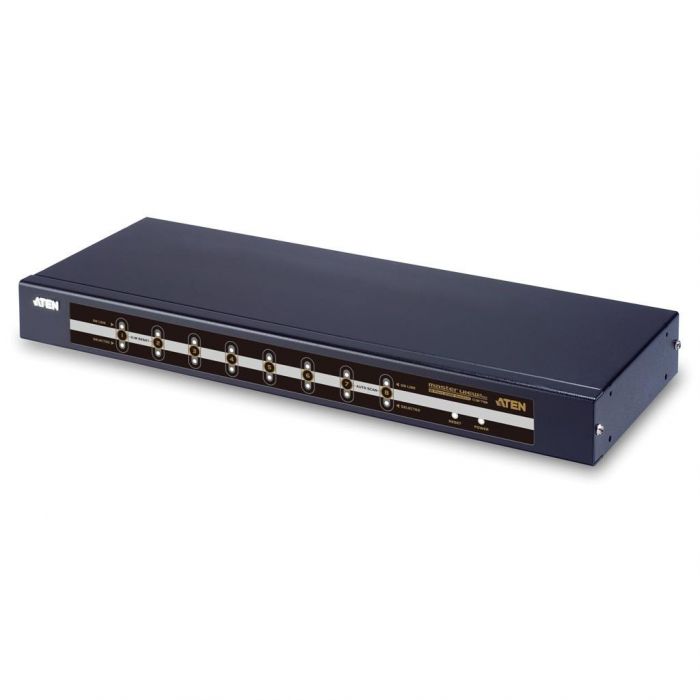

The CS78 KVM switch is a control unit that allows access to 8 computers from a single console (keyboard, monitor, and mouse). It provides pushbuttons and hotkey combinations for convenient computer selection. Setup is fast and easy; plugging cables into their appropriate ports is all that is entailed. A powerful Auto Scan feature also permits auto scanning and monitoring the activities of all computers on the installation one by one. Voor meer informatie.
Features
• One PS/2 console controls 8 computers • Computer selection via front panel pushbuttons or hotkeys • Keyboard and mouse emulation for error free booting • Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse • Auto Scan function to monitor computer operation • Superior video quality: up to 1920 x 1440; DDC2B • SVGA, VGA, and Multisync Monitor Support • Hot Pluggable - Add or remove computers for maintenance without powering down the switch • LED display for easy status monitoring • Rack mountable in 19 (1U) system rack

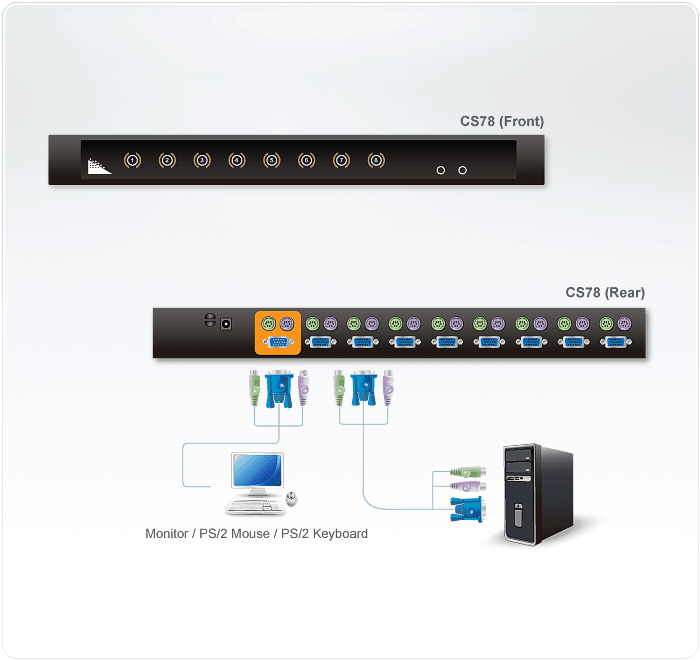

Diagram
Content
• 1 x CS78 KVM Switch
• 1 x Power Adapter
• 1 x Rack Mount Kit
• 1 x Foot Pad Set (4 pcs.)
• 1x User Instructions
Specifications
Computer Connections
8
Port Selection
Hotkeys, Pushbutton
Connectors
Console Ports
Keyboard
1 x 6-pin Mini-DIN Female (Purple)
Video
1 x HDB-15 Female (Blue)
Mouse
1 x 6-pin Mini-DIN Female (Green)
KVM Ports
Keyboard
8 x 6-pin Mini-DIN Female (Purple)
Video
8 x HDB-15 Male (Blue)
Mouse
8 x 6-pin Mini-DIN Female (Green)
Power
1 x DC Jack (Black)
Switches
Port Selection
8 x Pushbutton
Reset
1 x Semi-recessed pushbutton
LEDs
On Line
8 (Green)
Selected
8 (Orange)
Power
1 (Blue)
Emulation
Keyboard/Mouse
PS/2
Video
1920 x 1440; DDC; DDC2; DDC2B
Scan Interval
5 Seconds
Power Consumption
DC9V; 1.98W (Max.)
Environment
Operating Temperature
0~40?C
Storage Temperature
-20~60?C
Humidity
0~80% RH, NC
Physical Properties
Housing
Metal
Weight
2.85 kg
Dimensions ( L x W x H )
48.3 x 15.0 x 4.45 cm (19"/1U)
• * The specification and pictures are subject to change without notice.
• * All trademarks and logos are the properties of their respective holders.
