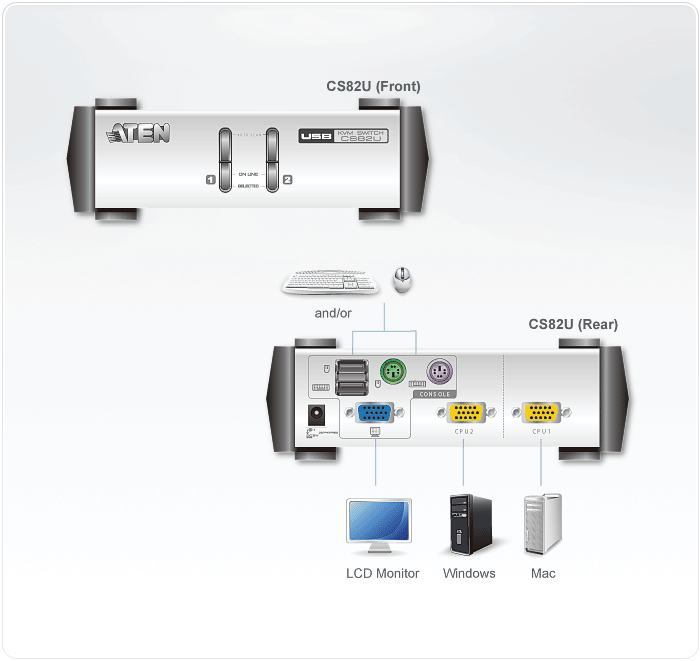

One PS/2-USB VGA console controls two VGA interface computers. Dual Interface - supports computers with PS/2 or USB keyboards and mice Computer selection via front panel pushbuttons, hotkeys, and mouse Multiplatform support - Windows, Linux, Mac, and Sun Superior video quality - 2048 x 1536; DDC2B Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports Power on detection - if one computer is powered off, the switch will automatically switch to the next powered-on computer Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keyboard support and emulation* Multilingual keyboard mapping - supports English, Japanese, and French keyboards Gaming keyboard support Auto Scan Mode for monitoring all computers Firmware upgradable Non-powered
| Computer Connections | 2 | ||
| Port Selection | Front Panel Pushbuttons; Hotkey, USB Mouse | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Purple) |
| Video | 1 x HDB-15 Female (Blue) | ||
| Mouse | 1 x USB Type A Female (Black), 1 x 6-pin Mini-DIN Female (Green) |
||
| KVM Ports | 2 x SPHD-18 Female (Yellow) | ||
| Power | 1 x DC Jack | ||
| Switches | Selected | 2 x Pushbutton | |
| LEDs | On Line | 2 (Orange) | |
| Selected | 2 (Green) | ||
| Emulation | Keyboard/Mouse | PS/2, USB | |
| Video | 2048 x 1536 @ 60 Hz; DDC2B | ||
| Scan Interval | 3, 5, 10, 20 secs. (5 secs. default) | ||
| Power Consumption | DC 5V, 1.1W | ||
| Environment | Operating Temp. | 0 - 50°C | |
| Storage Temp. | -20 - 60°C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.54 kg | ||
| Dimensions ( L x W x H ) |
14.00 x 8.70 x 5.50 cm | ||
| * The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders. |
