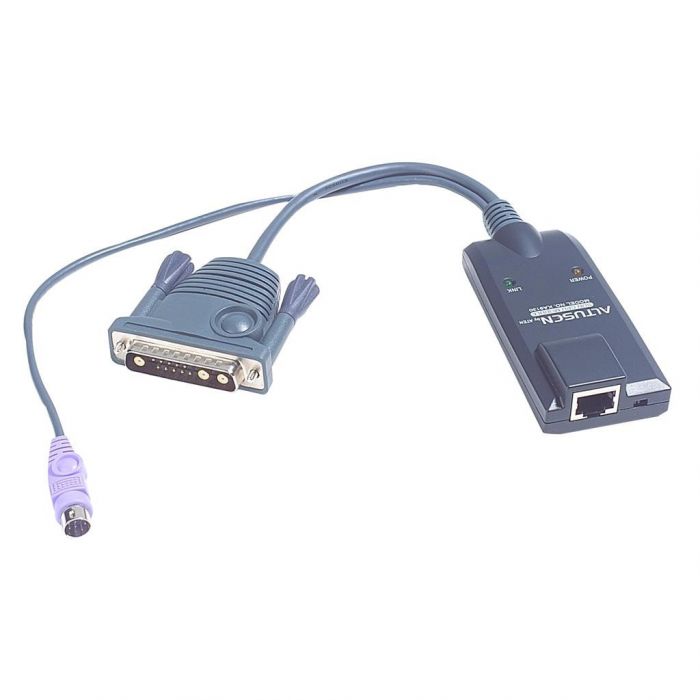

The Altusen SUN CPU adapters connect KVM cables to the console ports of the SUN servers. Those adapters are light and in small form factor, fit perfectly into most of the rack-mount or desktop servers.
Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances. Hot pluggable - add or remove computers without having to power down the switch. Lifetime firmware upgrades. Superior video quality - supports resolution of up to 1024 x 768 within the distance of up to 300m (KM0832) / 150m (KM0432/KM0216); DDC2B. Built in ASIC for greater reliability and compatibility. CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (Sun Legacy). Compact size.

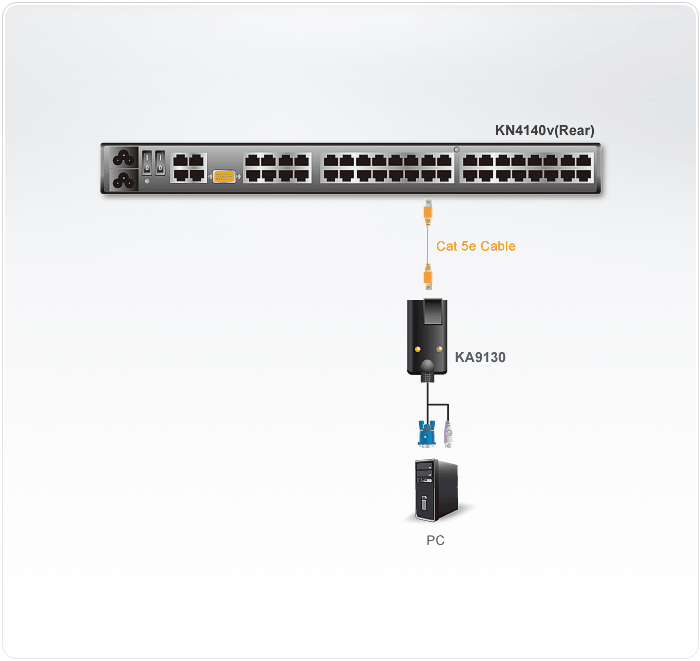

Diagram
Content
1x Sun Legacy KVM Adapter Cable (CPU Module) 1x Rack Mount Kit
Specifications
Connectors
Link
1 x RJ-45 Female
Keyboard/Mouse to computer
1 x Min Din 6 Male
VGA to computer
1 x 13W3 Male
LEDs
On Line
1 (Green)
Link
1 (Orange)
Physical Properties
Housing
Plastic
Weight
120 g
Dimensions ( L x W x H )
9 x 4.3 x 2.3 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
