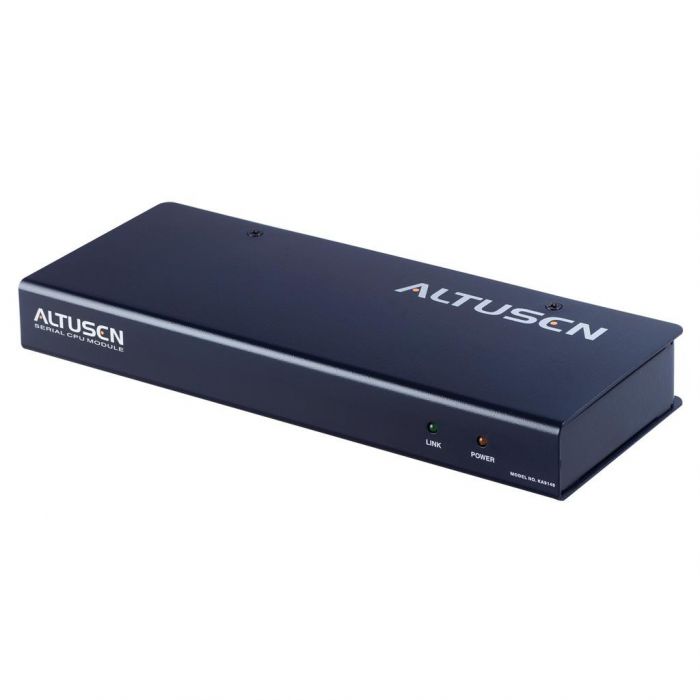

The Altusen serial CPU adapters connect KVM cables to the serial ports of the servers. Those adapters are light and in small form factor, fit perfectly into most of the rack-mount or desktop servers.
• Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances. • Hot pluggable - add or remove computers without having to power down the switch. • Support VT-100. • Lifetime firmware upgrades. • Superior video quality - supports resolution of up to 1024 x 768; DDC2B. • Built in ASIC for greater reliability and compatibility. • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (Serial).

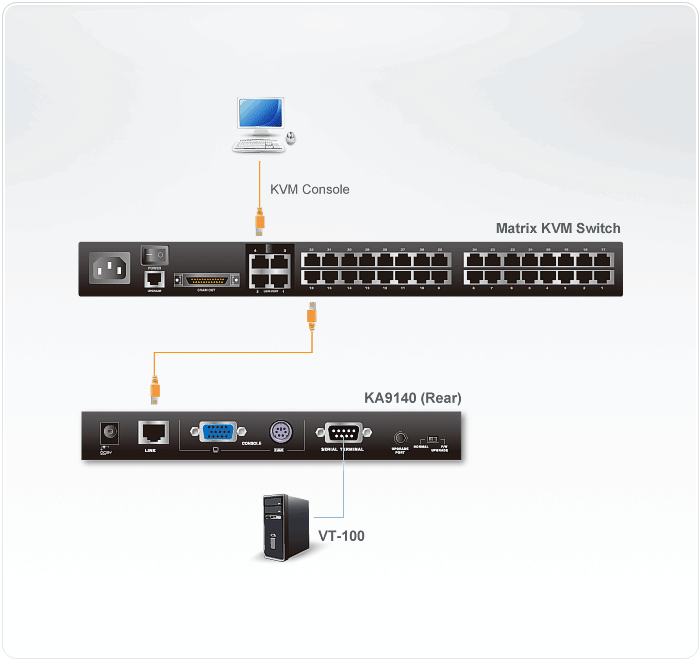

Diagram
Content
• 1x KA9140
• 1x 0AD6-1005-10EG Power Adapter
• 1x Rack Mount Kit
• 1x Firmware Upgrade Cable
• 4x Foot Pads
• 1x User Instructions
• 1x Registration Card
Specifications
Connectors
Computer Side
RS-232
1 x DB-9 Female
Console Side
Link
1 x RJ-45 Female
Keyboard
1 x Min Din Female
VGA
1 x HDB-15 Female
Upgrade
1 x Earphone-jack-4 Female
LEDs
Power
1 (Orange)
Link
1 (Green)
Switch (Normal / Upgrade)
1 x 2 way slide switch
Power Consumption
DC 5V 1.5W
Environment
Operating Temperature
0? ~ 50?C
Storage Temperature
-20? ~ 60?C
Humidity
0~80% RH, NC
Physical Properties
Housing
Metal
Weight
500 g
Dimensions ( L x W x H )
20 x 8 x 3.5 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
