• One console module can control a local computer and a matrix KVM switch • Local-user operation - access any server on the same switch • Master-user operation - access all servers on the matrix KVM switch installation • Control servers regardless of differences in monitor, keyboard, and mouse interfaces • Auto Signal Compensation (ASC) - no DIP switch setting necessary to compensate for distance • Superior video quality - supports resolution of up to 1024 x 768; DDC2B • Lifetime flash firmware upgrades

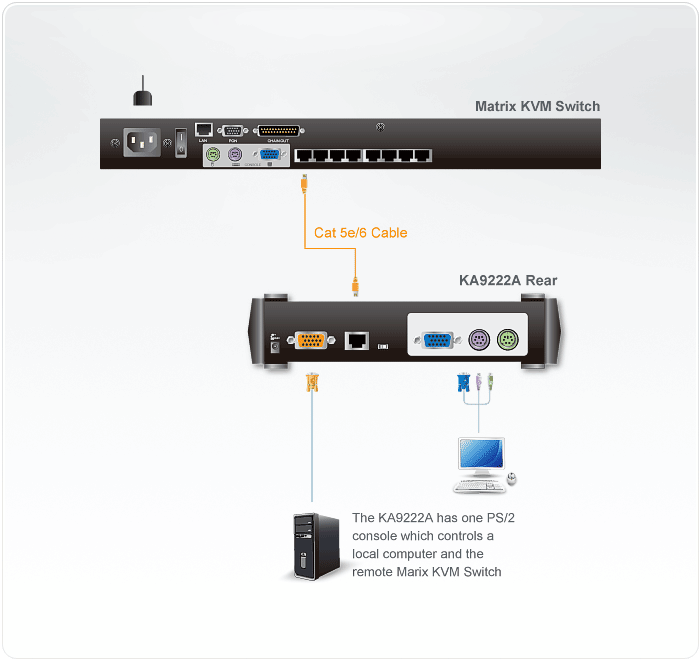

Diagram
Content
• 1x KA9222A Console Module
• 1x 2L -5702P PS/2 KVM Cable
• 1x 0AD6-1005-10EG AC Power Adapter
• 1x User Instructions
• 1x Registration Card
Specifications
Computer Connections
1
Console Connections
1
Connectors
Console Ports
Keyboard
1 x Mini Din 6 Female (Purple)
Video
1 x HDB-15 Female (Blue)
Mouse
1 x Mini Din 6 Female (Green)
KVM Ports
1 x SPHD-15 Female (Yellow)
Link
1 x RJ-45 Female
Power
1 x DC Jack
Switch
Select
1 x Pushbutton
Normal / Recover
1 x Slide Switch
LEDs
Link
1 (Green)
Local
1 (Orange)
Environment
Operating Temp.
0 - 50?C
Storage Temp.
-20 - 60?C
Humidity
0 ~ 80% RH, NC
Physical Properties
Housing
Metal
Weight
0.73 kg
Dimensions ( L x W x H )
20.00 x 7.45 x 4.20 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
