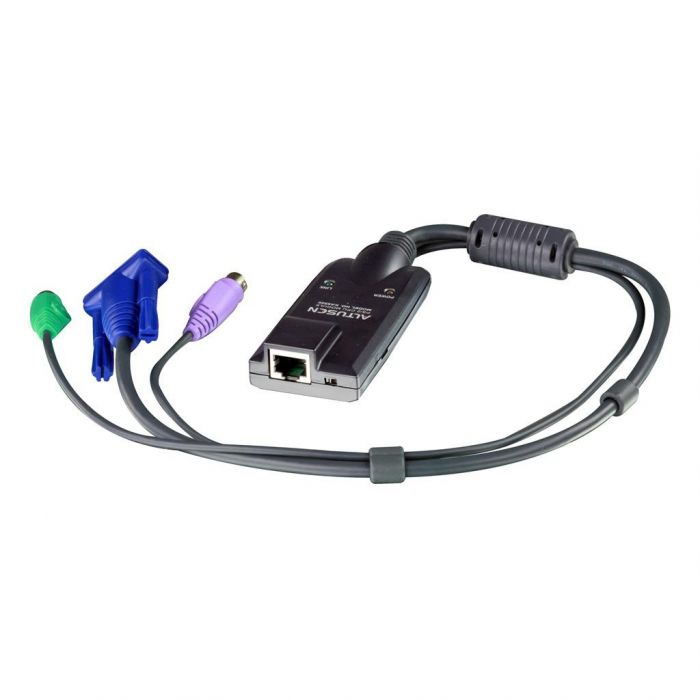

The KA9250 KVM Extender Module allows a user at a keyboard, video, mouse (KVM) console to manage the servers in a KH0116 16 Port High-Density KVM Switch installation up to 150m away. The KA9250 module connects to the KH0116's RJ-45 remote console port via standard Category 5 cable for a neat and realiable installation. When a local and remote console are present,both can access the KVM switch. The KA9250 features a custom ASIC to ensure the utmost in reliability and compatibility. It can also sense the distance to the KH0116 and automatically adjust the video gain to compensate. Control your KVM switch from up to 150m away by extending the distance to your KVM console with a KA9250 KVM Extender.
• Built-in ASIC for greater reliability and compatibility • Cat 5e cable to connect the remote unit to the KH0116 up to 150m away • High resolution video-up to 1280 x 1024 (SXGA) • Supports VGA, SVGA, and MultiSync monitors • Automatic gain control-adjusts signal strength to compensate for distance • Multiplatform support: Windows 2000/XP/Vista.

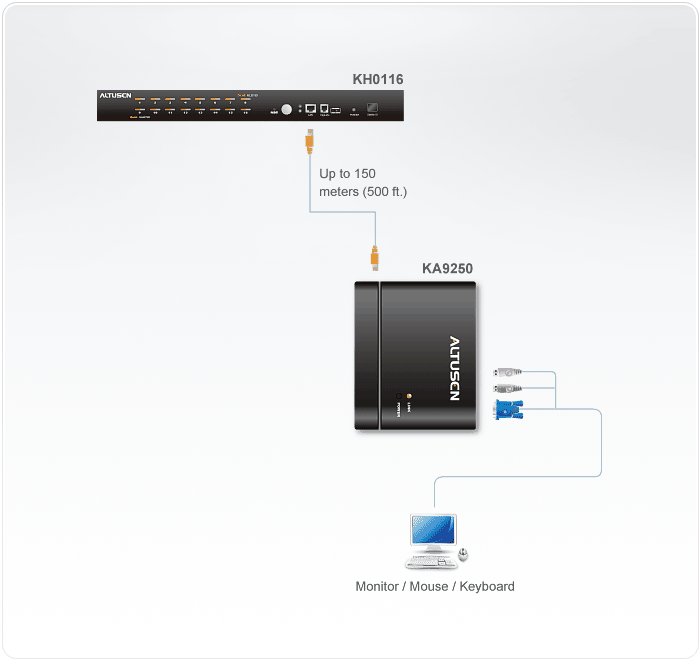

Diagram
Content
• 1x KVM Extender Module
• 1x Power Adapter
• 1x User Instructions
Specifications
Connectors
Link
1 x RJ-45 Female
Mouse to computer
1 x Min Din 6 Male
Keyboard to computer
1 x Min Din 6 Male
VGA to computer
1 x HDB-15 Male
LEDs
On Line
1 (Green)
Link
1 (Orange)
Physical Properties
Housing
Plastic
Weight
120 g
Dimensions ( L x W x H )
9 x 4.3 x 2.3 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
