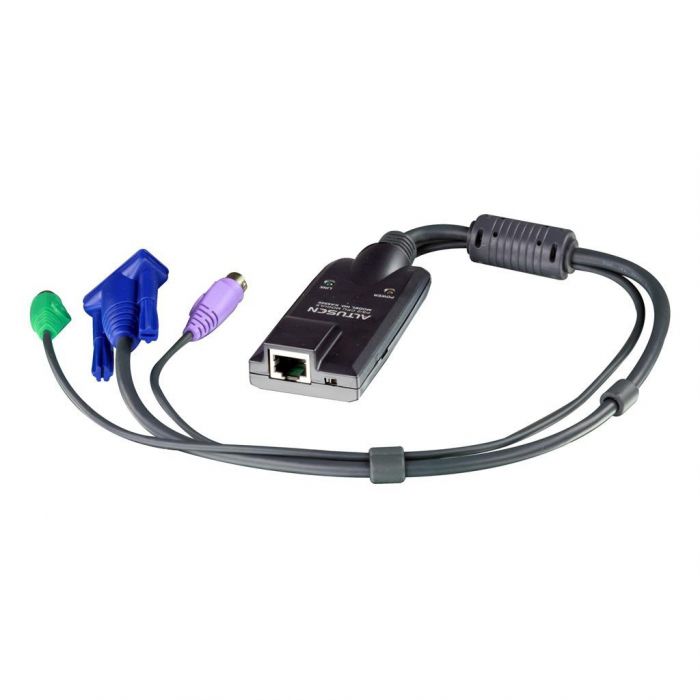

The Altusen PS/2 CPU adapters connect KVM cables to the PS/2 console ports of the servers. Those adapters are light and in small form factor, fit perfectly into most of the rack-mount or desktop servers.
Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances. Hot pluggable - add or remove computers without having to power down the switch. Lifetime firmware upgrades. Superior video quality - supports resolution of up to 1280 x 1024 within the distance of up to 40m (130'); DDC2B. Built in ASIC for greater reliability and compatibility. CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC). Compact size
Note: Not Compatible with Matrix KVM Switch KM0832/KM0432/KM0216.

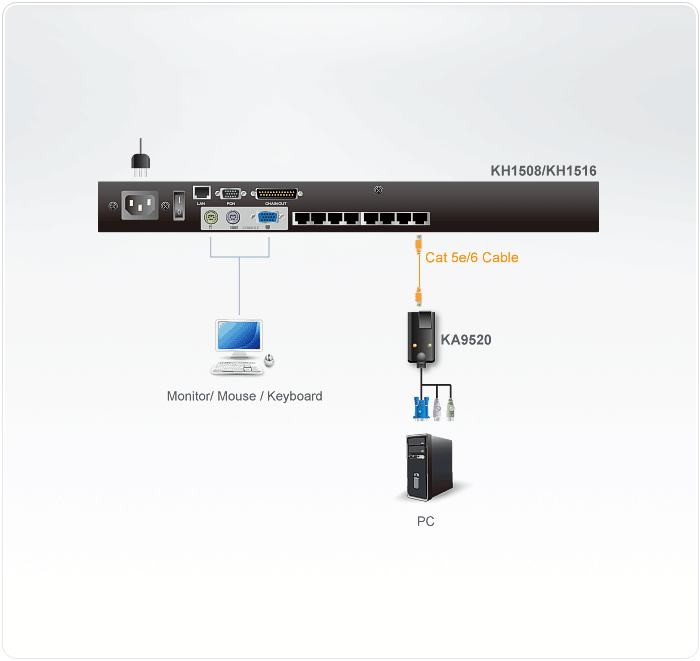

Diagram
Content
1 x PS/2 KVM Adapter Cable (CPU Module) 1 x Rack Mount Kit
Specifications
Connectors
Link
1 x RJ-45 Female
Mouse to computer
1 x Min Din 6 Male
Keyboard to computer
1 x Min Din 6 Male
VGA to computer
1 x HDB-15 Male
LEDs
On Line
1 (Green)
Link
1 (Orange)
Physical Properties
Housing
Plastic
Weight
120 g
Dimensions ( L x W x H )
9 x 4.3 x 2.3 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
