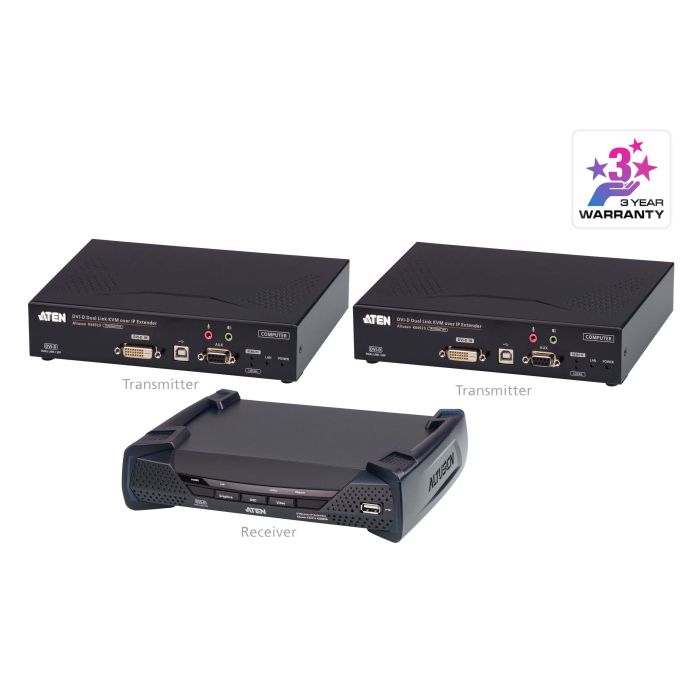

ATEN KE6920ATC Bundle (2Tx & 1Rx) USB 2K DVI-D Dual-Link KVM over IP Extender with Local Console, Power/LAN Redundancy (Dual SFP Slot), RS-232 Control and Audio
ATEN KE6920 Air Traffic Control Bundle Solution consists of two high performance IP-based transmitters (KE6920T) that connect to two PCs / servers and an IP-based receiver (KE6920R), providing console access from a separate location. The solution builds effortless IP extension that eliminates the distance restrictions of control room management, enabling a faster response to mission-critical data center emergencies. With Primary-Secondary Architecture, the KE6920 Air Traffic Control Bundle Solution enables connection to a primary and a secondary computer that allows instant system failover via hotkey switching without moving around workstations. The deployment of ATEN KE6920 Air Traffic Control Bundle Solution allows access to a computer system from a remote USB console (USB keyboard / mouse and DVI monitor) over the intranet, allowing the computer to be located in a secure and temperature controlled environment, which is also isolated from the user workstation.
Features
Exclusive Features for ATC Industry
Supports 2K x 2K video resolution (2048 x 2048 @ 60Hz)
Disconnection Alert – pop-up warning message and looping alarm beeping notify users the disconnection status
Supports power / network failover – 2 DC jacks for power redundancy and 1 RJ-45 & 2 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
Advanced Features
Connection Redundancy – automatically connects to two additional transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers (via KE OSD)
Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button* *The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.
Hardware
Supports DVI-D Dual Link video resolutions up to 2560 x 1600 @60Hz and 2560 x 2048 @50Hz
Supports stereo speakers and stereo microphone
High speed USB Storage Transmission support
Auto-MDIX – automatically detects cable type
Built-in 8KV / 15KV ESD protection and 2KV surge protection
Fanless design for silent operations that are energy efficient
Supports connection via Gigabit Ethernet port (RJ-45) or 1Gbps SFP fiber module expansions* for failover
Supports 1Gbps SFP fiber module* expansions up to 10 km
Power Redundancy –2 DC jacks for power redundancyv
Rack Mountable – Mounting options: – 2X-021G Dual Rack Mount Kit – 2X-031G Single Rack Mount Kit
Includes an industrial-grade power adapter – supports operating temperature of 0°C- 50°C to ensure durability and adaptability under harsh environmental conditions
*The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
Management
Dual console operation – controls your system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
Local console for emergency operation
OSD (On Screen Display) on the receiver configures both Tx / Rx devices
EDID Expert™ – selects optimum EDID settings to prevent video compatibility issue caused by different monitors
Video Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
CLI – administrators can control all KE devices via RS-232 or Telnet by issuing commands
RS-232 serial ports – allow you to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
Security
Dedicated LAN port for KE direct connections – can be isolated from the corporate network
Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
Supports industry standard Transport Layer Security (TLS) protocol
Virtual Media
Virtual Media mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
Supports Smart Card / CAC Reader
Diagram
Content
2x KE6920T DVI-D KVM over IP Transmitter
1x KE6920R DVI-D KVM over IP Receiver
2x USB DVI-D KVM Cable Set
3x Power Adapters
3x Power Cords
2x Mounting Kit
3x User Instructions
Specifications
Function
KE6920R
KE6920T
Connectors
USB Port
2 x USB Type A Female (White)
N/A
Console Ports
2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
2 x USB Type A Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black)
KVM Ports
N/A
1 x USB Type B Female (White) 1 x DVI-D Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Female (Black)
Power
2 x DC Jack (Black)
2 x DC Jack (Black)
LAN Ports
1 x RJ-45 (Black) 2 x SFP Slot
1 x RJ-45 (Black) 2 x SFP Slot
Switches
OSD
1 x Pushbutton
N/A
Video
1 x Pushbutton
N/A
Graphics
1 x Pushbutton
N/A
Reset
1 x Semi-recessed Pushbutton
1 x Semi-recessed Pushbutton
Mode Selection
1 x Slide Switch (Extension, RS-232 Config)
1 x Slide Switch (Auto, RS-232 Config/Access Control, Local)
