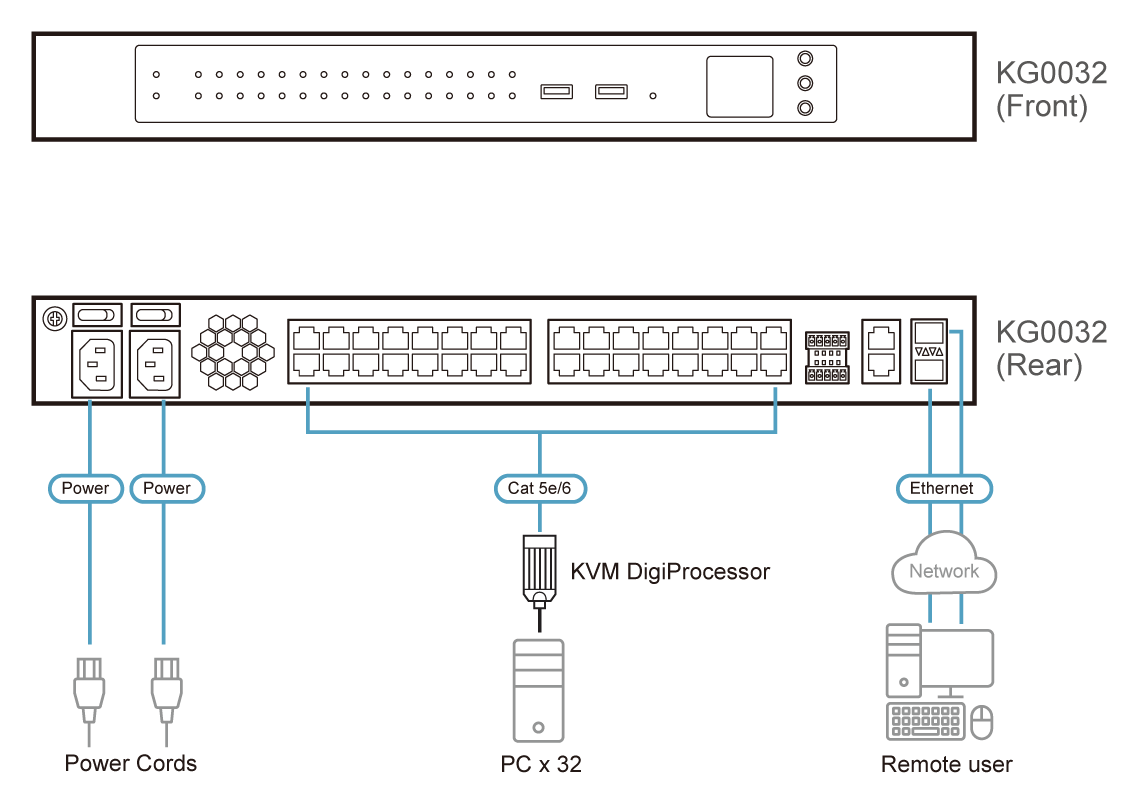

High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 32 ports in 1U housing
All-digital KVM over IP optimum transmission – offers reliable transmission over long distances with noise immunity, signal quality preservation, and efficient compression and storage
Extends 1920 x 1200 @ 60 Hz resolutions up to 100m via Cat 5e/6 without signal interference and close-to-zero latency
Up to 32 independent connections for remote KVM over IP access
Dual 10G NICs for redundant LAN or two IP operation
LCD display – provides real-time connection status, notifications, and system alert message
LED indication of connection and hardware status
Multi-platform server environments: Windows, Mac, and Linux
All-around ventilation chassis design improves airflow efficiency – induces cold air suction on both sides at the front panel and dissipates heat via ventilation holes on the back panel
Dual power supply with power redundancy
Management
Simultaneously shares 32 independent connections to the attached servers
Out-of-Band access
Integration with ATEN CC2000 Centralized Management Software
Green IT Fan – auto-fan-speed adjustment corresponding to temperature
Event logging and Windows-based log server
Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
Event destination – event logs will be saved to Log server, Syslog server, and USB drive
Firmware upgradeable
Port share mode – allows multiple users to gain access to a server simultaneously
Supports IPv4, IPv6
Easy-to-Use Interface
The intuitive WinClient AP's supports of an Array View and a Control View – enables users to monitor all servers and control a specific server concurrently
Panel Array Mode™ Live+ – real-time monitoring of livestreamed video feeds from all ports in a configurable multiscreen layout
Browser-based, and AP GUIs offer a unified multi-language interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, and Linux) via WebClient
Multi-browser support – Edge, Chrome, Firefox, Safari, and Opera
Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
Full-screen or sizable and scalable virtual remote desktop
Security
High-grade security – supports an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #4282)
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports TLS 1.3 data encryption and RSA 2048-bit certificates to secure user logins in from browser
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random for video, and virtual media data encryption
Support for IP / MAC filter
Configurable user and group permissions for server access and control
Automated CSR creation utility and third party CA certificate authentication
Virtual Media
Virtual media transmission rate is approximately 10 times faster than traditional KVM, ideally for file transfers, OS patching, software installation, and diagnostic testing
Works with USB-enabled servers in operating system and at the BIOS level
Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives, and ISO images
Virtual Remote Desktop
Video quality such as monochrome color depth and bandwidth’s increment / decrement can be adjusted for optimizing data transfer speed
1x KG0032 32-Port KVM over IP OmniBus Gateway
1x footpad set (4 pcs)
1x mounting kit
2x control terminal blocks
2x power cords
2x Lok-U-Plugs
1x Lok-U-Plug installation tool
1x user instructions
Specifications
Console Connections
Local
N/A
Remote
32
Computer Connections
Direct
32
Port Selection
GUI
Connectors
USB Port
2 x USB Type-A Female (Reserved for future expansion)
KVM Ports
32 x RJ-45 Female
SFP+ Uplink Ports
2 x SFP+ Slots*
Serial
2 x RJ-45 Female (Reserved for future expansion)
Power
2 x IEC 60320/C14
Input
2 x 2-pin DI (Reserved for future expansion)
Relay
2 x 3-pin Relay (Reserved for future expansion)
Switches
Reset
1 x Semi-recessed Pushbutton
Power
2 x Rocker Switches
LEDs
KVM Ports
32 (Green)
Power
2 (Green)
Panel Spec
Size
1.6"
Resolution
128x64
Pushbuttons
Select
3 x Pushbuttons (Up, Down, Enter)
Emulation
Keyboard / Mouse
USB
Video
Remote
Up to 3840 x 2160 @ 30Hz
Maximum Input Power Rating
100–240V~, 2.5A max, 50-60Hz
Power Consumption
AC110V:46.8W:160BTU/h AC220V:46.9W:160BTU/h
Environmental
Operating Temperature
0 - 40˚C
Storage Temperature
-20 - 60˚C
Humidity
10 - 80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
6.53 kg ( 14.38 lb )
Dimensions (L x W x H)
43.36 x 37.90 x 4.40 cm (17.07 x 14.92 x 1.73 in.)
Note
* Fiber or copper SFP modules are sold separately. Please find them on the compatible accessories list and order with KG devices together.
