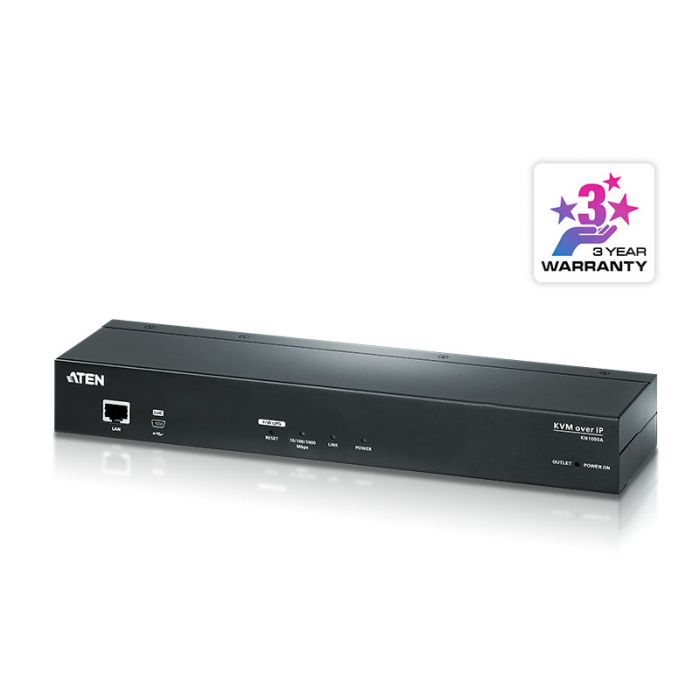

ATEN KN1000A Single Port KVM over IP Switch with Single Port Power Switch

Name: ATEN KN1000A Single Port KVM over IP Switch with Single Port Power Switch
Brand: Aten
SKU: KN1000A
Price: 748.86 EUR
Availability: InStock

Be the first to review this product

€748.86 €618.89

Delivery time: 3-5 working days

Single Port KVM over IP Switch with Single Port Power Switch

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

ATEN’s new KN1000A Single Port KVM over IP Switch provides access and control “over-IP” for conventional KVM switches and servers that do not have built-in over-IP functionality. It allows system operators to monitor and access computers from remote locations for down to the BIOS-level" troubleshooting, using standard Web browsers or Windows and Java based application programs, without the need to be on site for constant IT maintenance. In addition, the KN1000A supports out-of-band access in case the LAN goes down, with external modem support as backup. TEST NOW!

Features

Hardware
Provides over-IP capability to servers or KVM switches that do not have built-in over-IP functionality*
Built in single port Power Switch
Supports PS/2, USB, Sun Legacy (13W3)** and serial (RS-232) connectivity
Local console provides PS/2 and USB keyboard and mouse support
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media Support
High video resolution – up to 1920 x 1200 @ 60 Hz with 24 bit color depth for the local console; up to 1920 x 1200 @ 60 Hz with 24 bit color depth for remote sessions
Note: * Compatible KVM Switches include the following: CS9134, CS9138, CS1308, CS1316, CS1754, CS1758, CS1708A, CS1716A, ACS1208A, ACS1216A, KH2508A, KH2516A, KH1508A and KH1516A (Some of the KN1000A’s features may not be supported, depending on the functionality of the connected KVM switch. For example, some switches do not support virtual media). Some features found on the connected KVM switches may not be supported on the KN1000A. (For example, the CS1754’s audio.)
** Requires CV130A converter purchase
Management
Up to 64 user accounts
Up to 32 concurrent logins
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Critical system event notification via SMTP email; SNMP trap and Syslog support
Remote firmware upgradable
Serial console management – serial terminal access. Access the device connected to KN1000A via a built-in serial viewer, or via third party software (such as PuTTY) for Telnet and SSH sessions
PPP mode (modem) dial-in/dial out support for out-of-band, and low bandwidth operation
Port Share Mode allows multiple users to gain access to a server simultaneously
Integration with ATEN CC2000 Centralized Management Software
Integration with ATEN PDU for remote power control
Remote power on and off control function with Wake on LAN
On/Off scheduling for power outlet. Power management tasks can be scheduled on a daily, weekly, monthly or user specified time basis
Safe shutdown support
Auto-Ping pings a device to determine its status, if the ping test fails after a set amount of time – it automatically takes an action assigned
DDNS (Dynamic Domain Name System)
Export/import user account and configuration settings
Manage browser access methods (disable browser, http, or https)
Easy-to-Use Interface
Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
Full-screen or sizable and scalable Virtual Remote Desktop window
Magic Panel – a special hideaway control panel with configurable function icon
Advanced Security
Smart Card / CAC Reader Support
External authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
IP/MAC Filter for enhanced security protection
Supports password protection
Private Certificate Authority
Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB enabled servers at the operating system and BIOS levels
Supports USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
Virtual Remote Desktop
BIOS-level access
Video quality and video tolerance can be adjusted to optimize data transfer speeds; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
Full screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse Dynasync™
Exit Macros support

Diagram

Content

1 x KN1000A Single Port KVM over IP Switch1 x 2L-5301UP Custom KVM Cable Sets1 x LIN5-27X6-U21G Custom Console Cable Set1 x LIN6-04U1-M18G Mini USB to Type A USB Cable1 x 0AD8-1605-24M1 Power Adapter1 x LIN2-418K-P13G Outlet Power Cord1 x Mounting Kit1 x User Instructions

Specifications

Connectors
Console Ports	1 x SPHD-18 Male (Yellow)
KVM (Computer) Ports	1 x SPHD-18 Female (Yellow)
Laptop USB Console (LUC) Port	1 x USB Mini-B Female
PON	1 x DB-9 Male
RS-232	1 x DB-9 Male
LAN Ports	1 x RJ-45 Female
Power Inlets	1 x IEC320 C14
Power Outlets	1 x IEC320 C13
Power	1 x DC Jack
Switches
Reset	1 x Semi-recessed Pushbutton
LEDs
Power	1 (Orange)
Power Outlets	1 (Orange)
Link	1 (Green)
10/100/1000 Mbps	1 (Orange/ Orange&Green /Green)
Emulation
Keyboard / Mouse	USB; PS/2
Video	1920 x 1200 @ 60 Hz; DDC2B
Maximum Input Power Rating	100–240 V~; 50-60 Hz; 10A
Output	100–240 V~; 50-60 Hz; 9A
Power Consumption	DC5.3V:4.48W:30BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20-60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.88 kg ( 1.94 lb )
Dimensions (L x W x H)	31.00 x 8.39 x 4.20 cm (12.2 x 3.3 x 1.65 in.)
