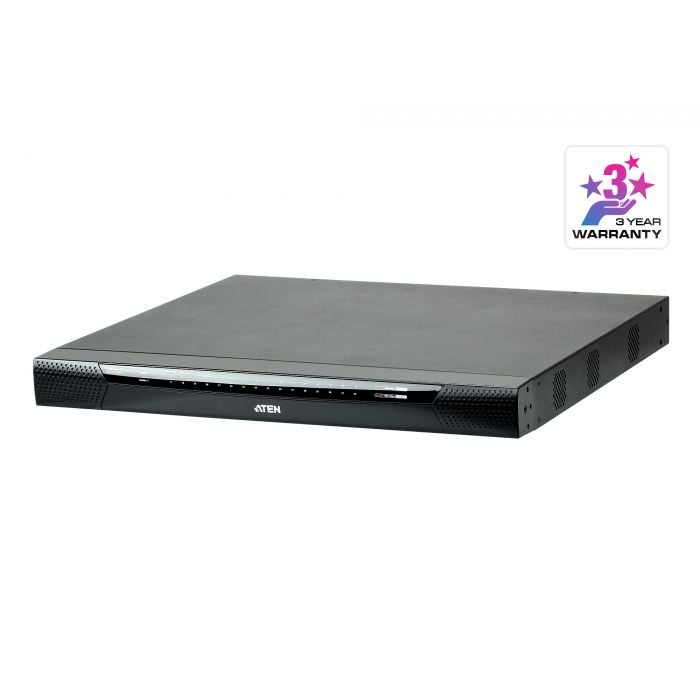

ATEN KN1132V 32-Port 2-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

€7,249.21 €5,991.08
Delivery time: 3-5 working days
32-Port 2-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support

Description

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN1132V features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. TEST NOW!

Features

    • New KN Series Exclusive
    • High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
    • Extreme virtual media speed – 2 x faster virtual media transmission speed
    • Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
    • Simultaneously share one local console and one remote independent connection to the attached servers



    • Hardware
    • High port density – RJ-45 connectors and Cat 5e/6 cable for up to 32 ports in a 1U housing
    • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy console operation
    • One separate bus for remote KVM over IP access
    • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
    • Blade server support
    • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
    • Local console provides USB keyboard and mouse support
    • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
    • Audio enabled
    • Dual Power Supply
    • High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
    • Monitor and control up to 32 computers on a single level, or control up to 512 computers in a cascade*
      * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS1308, CS1316, KH1508A, and KH1516A



    • Management
    • Up to 64 user accounts
    • Up to 32 concurrent logins
    • Green IT-Fan speed varies according to temperature
    • Event logging and Windows-based Log Server support
    • Critical system event notification via SMTP email; SNMP trap and Syslog support
    • Customizable events notification
    • Firmware upgradeable
    • Out-of-Band Access-Modem dial-in/dial-out/dial-back support
    • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
    • Port Share Mode allows multiple users to gain access to a server simultaneously
    • Integration with ATEN CC2000 Management Software
    • Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
    • Integration with ATEN CCVSR Video Session Recording Software*
    • Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
    • IPv6 capable
      *Supports recording computer operations accessed via remote sessions.



    • Easy-to-Use Interface
    • ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
    • Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
    • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
    • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
    • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
    • Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
    • Full-screen or sizable and scalable Virtual Remote Desktop
    • Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
    • Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization



    • Advanced Security
    • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
    • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
    • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
    • Support for IP/MAC Filter
    • Configurable user and group permissions for server access and control
    • Automated CSR creation utility and third party CA certificate authentication



    • Virtual Media
    • Virtual media enables file applications, OS patching, software installation and diagnostic testing
    • Works with USB enabled servers in operating system and BIOS level
    • Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images



    • Virtual Remote DesktopHI
    • Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
    • Full screen video display or scalable video display
    • Message Board for communication among remote users
    • Mouse DynaSync-automatically synchronizes the local and remote mouse movements
    • Exit Macros support
    • On-screen keyboard with multilanguage support
    • BIOS-level access for trouble shooting

    Diagram

    Content

    1x KN1132V KVM over IP Switch2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)2x LIN2-418K-E12G Power Cords1x Mounting Kit|2x 0X12-0017-301G Lok-U-Plugs1x 0X12-0017-401G Lok-U-Plug Installation Tool1x Foot Pad Set (4 pcs.)1x User Instructions

    Specifications

    Console Connections
    Local1
    Remote1
    Computer Connections
    Direct32
    Maximum512 (via Cascade)
    Port SelectionPushbuttons, Hotkeys, GUI
    Connectors
    Console Ports2 x USB Type-A Female (White)
    1 x DVI-D Female (White)
    1 x VGA HDB-15 (Blue)
    1 x RJ-45 Female (Black)
    USB Port3 x USB Type-A Female
    Audio2 x Audio Jack Female
    Laptop USB Console (LUC) Port1 x USB Mini-B Female
    KVM Ports32 x RJ-45 Female
    Serial1 x RJ-45 Female
    PON1 x RJ-45 Female
    LAN Ports2 x RJ-45 Female
    Power2 x IEC 60320/C14
    Switches
    Port Selection2 x Pushbuttons
    Reset1 x Semi-recessed Pushbutton
    Power2 x Rocker Switches
    LEDs
    Online / Selected32 (Green/Orange)
    Link 10 / 100 / 1000 Mbps2 (Red/Orange/Green)
    Power2 (Blue)
    Emulation
    Keyboard / MousePS/2; USB
    Video
    Local1920 x 1200 @ 60Hz
    Remote1920 x 1200 @ 60Hz
    Scan Interval1 – 255 Sec
    Maximum Input Power Rating100–240V~ ; 50-60Hz; 1A
    Power ConsumptionAC110V:26.88W:162BTU
    AC220V:27.83W:167BTU
    Environmental
    Operating Temperature0 - 40˚C
    Storage Temperature-20 - 60˚C
    Humidity0 - 80% RH, Non-condensing
    Physical Properties
    HousingMetal
    Weight5.54 kg ( 12.2 lb )
    Dimensions (L x W x H)43.36 x 41.21 x 4.40 cm
    (17.07 x 16.22 x 1.73 in.)
