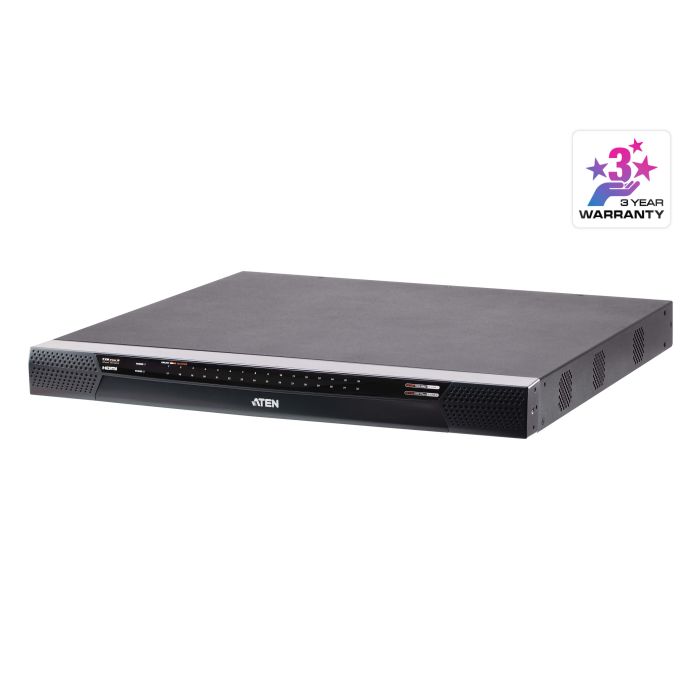

ATEN KN1132VB 32-Port Cat 5 KVM over IP Switch (1 Local and 1 Remote Access) with USB Peripheral Support, Broadcast Mode, Panel Array Mode, Virtual Media, Power/LAN Redundancy and FIPS 140-2 level 1 Security (USB VGA - HDMI)
The KN1132VB KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app – PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit the PadClient webpage for more information.
Features
Hardware
High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 32 ports in 1U housing
Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
1 separate buses for remote KVM over IP access
Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
Blade server support
Supports PS/2, USB, Sun Legacy and serial (RS-232) connectivity
Multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Audio enabled
Dual power supply
Superior video quality – video resolution up to 1920 x 1200 @ 60 Hz, 24-bit color depth; transmission distance of up to 50m
Cascadable – controls up to 512 computers
Management
Simultaneously share 1 local console and 1 independent connection to the attached servers
End session feature – administrators can terminate running sessions
Integration with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
Supports 64 user accounts and up to 32 users can be logged in at the same time for management
Green IT Fan – auto-fan-speed adjustment responding to temperature
Event logging and Windows-based log server
Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
Event destination – event logs will be saved to Log server, Syslog server, and USB drive
Firmware upgradeable
Out-of-Band access – modem dial-in / dial-out / dial-back support
Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
Port share mode – allows multiple users to gain access to a server simultaneously
Supports ATEN KVM over IP console station (KA82xx series)
Power association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
Supports IPv4, IPv6
Easy-to-Use Interface
Supports PadClient application on an iPad for mobile management
Panel Array Mode™ – monitors all ports in a grid display (both local and remote screens)
Local console, browser-based, and AP GUIs offer a unified multi-language interface to minimize the user training time and increase productivities
Multiplatform client support (Windows, Mac OS X, Linux, and Sun)
Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, and Netscape
Browser-based GUI in pure Web technology – allows administrators to perform administrative tasks without pre-installed software. (e.g. Java)
Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
Full-screen or sizable and scalable virtual remote desktop
Keyboard / mouse broadcast – keyboard and mouse signals can be duplicated across all servers simultaneously
Video syncing with the local console – local console monitor’s EDID information stored on the KVM adapter for display resolution optimization
Security
High-grade security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, or random for independent keyboard / mouse, video, and virtual media data encryption
Support for IP / MAC filter
Configurable user and group permissions for server access and control
Automated CSR creation utility and third party CA certificate authentication
Virtual Media
Virtual media enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
Works with USB enabled servers in operating system and BIOS level
Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
Virtual Remote Desktop
Message Board for communication among remote users
Video quality such as monochrome color depth, threshold and noise settings, bandwidth increment / reduction can be adjusted for optimizing data transfer speed
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
On-screen keyboard with multi-language support
BIOS-level access for troubleshooting

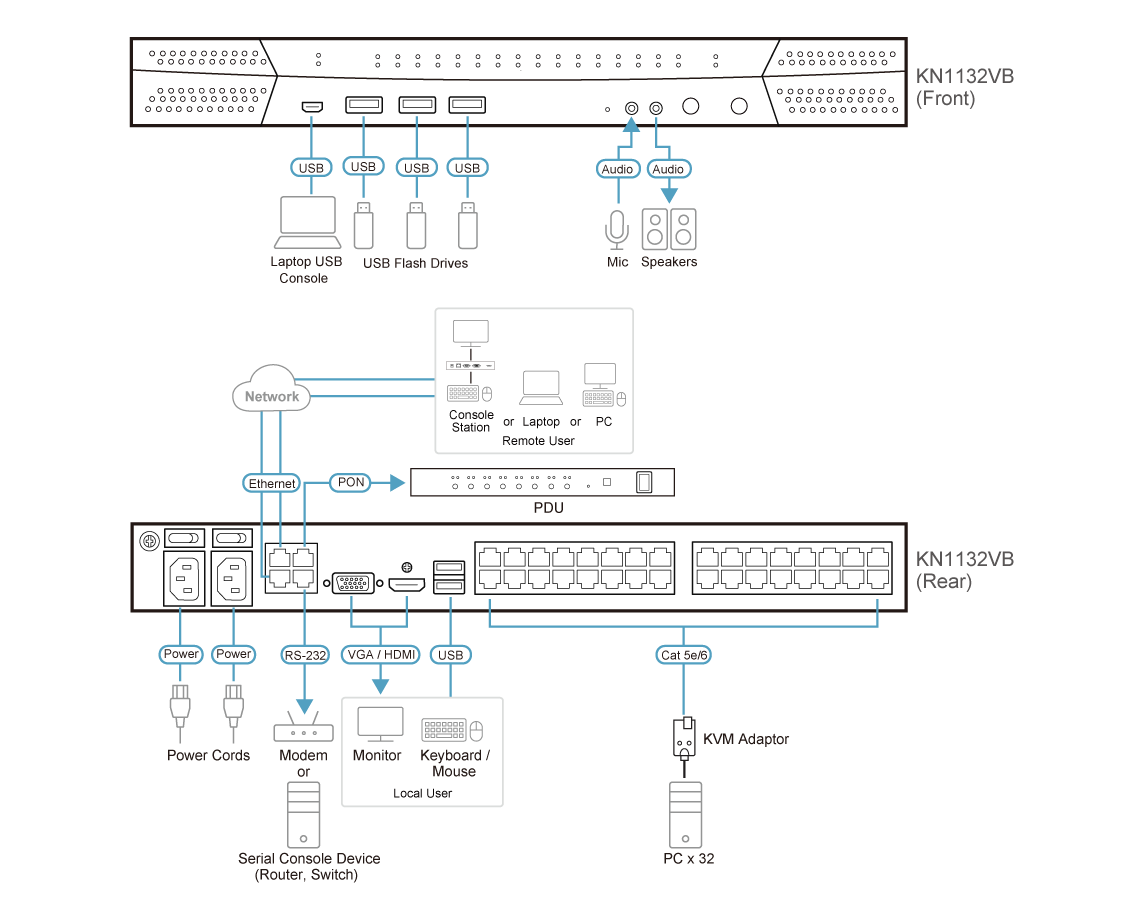

Diagram
Content
1x KN1132VB KVM over IP Switch
2x power cords
1x mounting kit
2x Lok-U-Plugs
1x Lok-U-Plug installation tool
1x foot pad set (4 pcs.)
1x user instructions
Specifications
Console Connections
Local
1
Remote
1
Computer Connections
Direct
32
Maximum
512 (via Cascade)
Port Selection
Pushbuttons, Hotkeys, GUI
Connectors
Console Ports
2 x USB Type-A Female (White) 1 x HDMI Female (Black) 1 x VGA HDB-15 (Blue)
USB Port
3 x USB Type-A Female
Audio
2 x Audio Jack Female
Laptop USB Console (LUC) Port
1 x USB Mini-B Female
KVM Ports
32 x RJ-45 Female
Serial
1 x RJ-45 Female
PON
1 x RJ-45 Female
LAN Ports
2 x RJ-45 Female
Power
2 x IEC 60320/C14
Switches
Port Selection
2 x Pushbuttons
Reset
1 x Semi-recessed Pushbutton
Power
2 x Rocker Switches
LEDs
Online / Selected
32 (Green/Orange)
Link 10 / 100 / 1000 Mbps
2 (Red/Orange/Green)
Power
2 (Green)
Emulation
Keyboard / Mouse
PS/2; USB
Video
Local
1920 x 1200 @ 60Hz
Remote
1920 x 1200 @ 60Hz
Scan Interval
1 – 255 Sec
Maximum Input Power Rating
100–240V~ ; 50-60Hz; 1A
Power Consumption
AC110V:32.4W:205BTU/h AC220V:31.7W:202BTU/h
Environmental
Operating Temperature
0 - 40˚C
Storage Temperature
-20 - 60˚C
Humidity
0 - 80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
5.03 kg ( 11.08 lb )
Dimensions (L x W x H)
43.36 x 41.21 x 4.40 cm (17.07 x 16.22 x 1.73 in.)
