Aten KN4124VA 24-Port KVM Over the NET

Be the first to review this product
€10,375.53 €8,574.82
Discontinued
24 Port Cat 5 KVM Switch with 1 Local 4 Remote User Access, Virtual Media

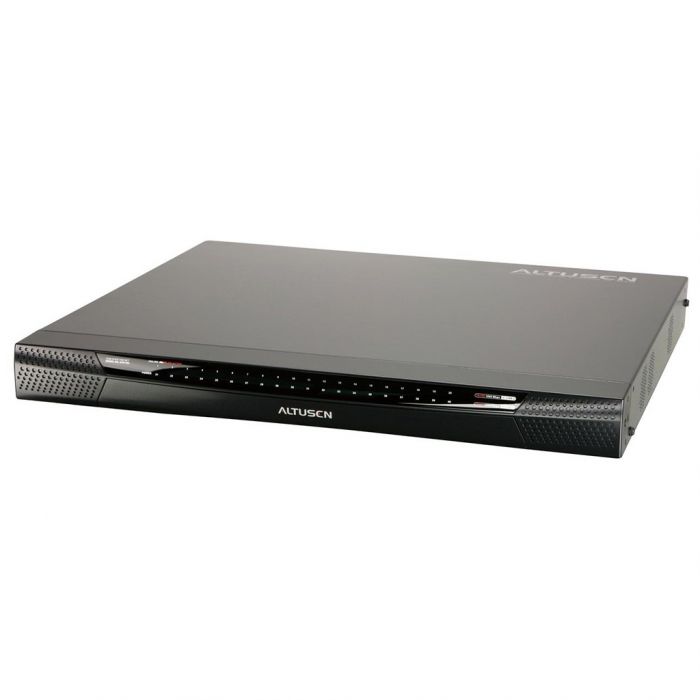

main product photo

Description


The new generation of KVM over the NET™ switches allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser.
A special Message Board feature - which like an internet chat program - lets any number of remotely logged in users exchange information and communicate with each other or to cooperatively manage the installation. A Panel Array Mode - allows real-time monitoring of 24 servers at once. Other features that contribute to the switches' powerful capabilities include: Mouse DynaSync, Adapter ID, and Virtual Media support.
With their dual on-board NICs and dual power supplies, these switches have been built for 24/7 reliability to ensure the highest rate of availability for your server room and data center services.
Now, using Altusen KVM Over the NET™ switches, IT administrators can manage their server rooms and data centers from practically anywhere - minimizing travel costs and MTTR (Mean Time to Repair) - and ensuring the highest availability of data center services possible.

Compatible KVM Adapter Cables:
KA7120, KA9120  PS/2 KVM Adapter Cable
KA7170, KA9170  USB KVM Adapter Cable
KA7130, KA9130  Sun Legacy KVM Adapter Cable
KA7140, KA9140  Serial KVM Adapter Cable
KA7175  USB Virtual Media KVM Adapter Cable
KA7176  USB Virtual Media KVM Adapter Cable with Audio


Voor meer informatie.

Features

  • 1x KN4124VA KVM over IP Switch
  • 2x Power Cords
  • 1x Mounting Kit
  • 2x Lok-U-Plugs
  • 1x Lok-U-Plug Installation Tool
  • 1x Foot Pad Set (4 pcs.)
  • 1x User Instructions

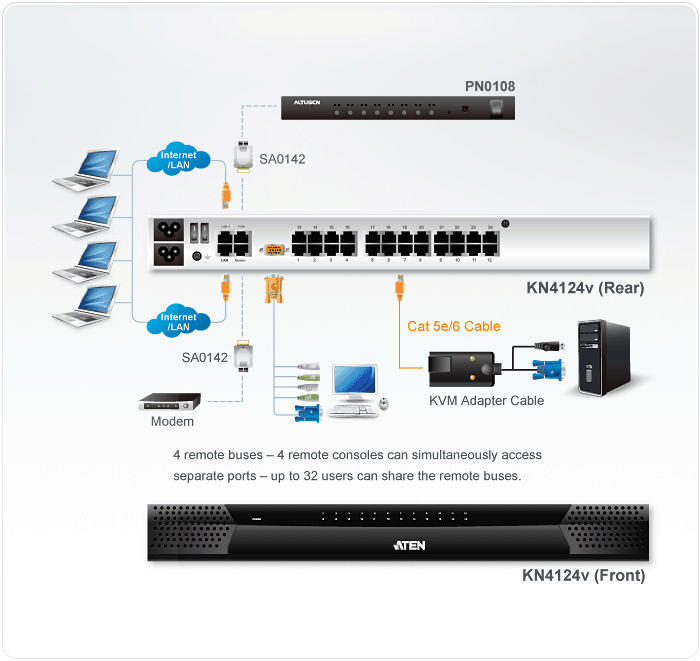

Diagram

Content

• 1x KN4124v KVM over IP Switch
• 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
• 2x 1ADP-0008-001G Power Cords
• 2x Utility Power Cord
• 1x 5-in-1 Console Cable
• 1x Rack Mount Kit
• 1x Foot Pad Set (4 pcs.)1x User Instructions

Specifications

Computer Connections Direct 24
Max 384 (via Cascade)
Console Connections Local 1
Remote 4
Port Selection Pushbutton, GUI, Hotkey
Connectors Console Port 1 x SPHD-18 Female (Yellow)
KVM Ports 24 x RJ-45 Female (Black)
Power 2 x 3-prong AC socket
LAN 2 x RJ-45 Female (Black)
PON 1 x RJ-45 Female (Black)
Modem 1 x RJ-45 Female (Black)
USB 3 x USB Type A Female (White)
Audio 2 x Audio Jack Female
Switches Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker
Port Selection 2 x Pushbutton
LEDs On Line 24 (Green)
Selected 24 (Red)
Power 1 (Blue)
Link
10 / 100 / 1000 Mbps		 2 (Red / Red + Green / Green)
Emulation Keyboard/Mouse PS/2 / USB (PC, Mac, Sun) / Serial
Video 1600x1200 @ 60Hz
Scan Interval 1-255 Seconds
I/P Rating 100-240VAC; 50-60Hz; 1.0A
Power consumption Single Power 115V / 43.7W; 230V / 44.6W
Dual Power 115V / 49.1W; 230V / 50W
Environment Operating Temp. 0 - 50?C
Storage Temp. -20 - 60?C
Humidity 0 - 80% RH, Non-condensing
Physical Properties Housing Metal
Weight 6.04 kg
Dimensions
( L x W x H )		 43.36 x 40.94 x 4.40 cm (19"/1U)
• * The specification and pictures are subject to change without notice.
• * All trademarks and logos are the properties of their respective holders.
