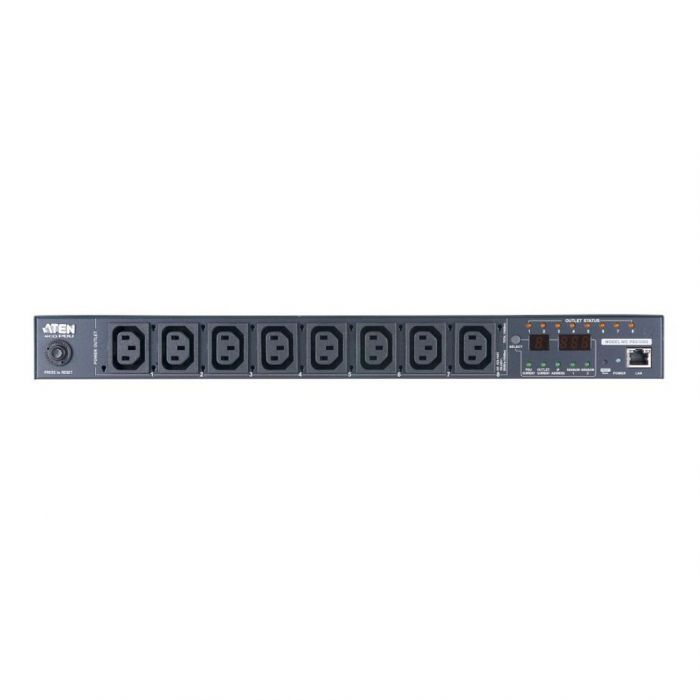

Aten PE8108G 8-Port Power in the NET ECO PDU

Be the first to review this product

€548.82 €453.57

Item in stock

8 Port Eco PDU 1-U , 8xC13 , 10 Ampere , Port measurement

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

• 8 outlets
• 15A (UL derated 12A) / 10A
• Outlet Power Measurement

The PE8108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs at the PDU device level from practically any location via a TCP/IP connection.
The eco PDU supports any 3rd party v3 SNMP Manager Software and The eco Sensors (Energy Management Software). The eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With ALTUSEN eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.
With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.
*Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.
Voor meer informatie.

Features

Power Distribution
Space saving 1U rack mount design with rear mounting
IEC or NEMA outlet models
3 digit 7-segment front panel LED shows Current / IP Address
Remote users can monitor outlet status via web pages on their browsers
Safe shutdown support
Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker
Remote Access
Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
eco PDU Power Management software – eco Sensors
Supports SNMP Manager V3
Operation
Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Firefox, Chrome, Safari)
RTC support to keep the timer running during times of no power.
Supports up to 8 user and 1 administrator accounts
Management
Power status measurement at the PDU level
LED indicators for current and IP address at the PDU device level
Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the PDU level
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis.
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian
Security
Two-level password security
Strong security features include password protection and advanced encryption technologies – 128 bit SSL
Remote authentication support: RADIUS
eco Sensors Energy Management Software
Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time power outlet management
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and Syslog
Power Analysis Report
pe8208_power_cord

Diagram

Content

1x PE8108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Grounding Wire
1x Software CD
1x Quick Start Guide

Specifications

Function			PE8108A	PE8108B	PE8108G
Power Outlets	Direct		8
Connectors	Power Inlets		1 x IEC 320 C20
	Power Outlets	NEMA	8 x NEMA 5-15R	NA
		IEC	NA	8 x IEC 320 C13	8 x IEC 320 C13
	Sensor		2 x RJ-11
	LAN		1 x RJ-45 (F)
LEDs	Outlet Status		8 (Orange)
	Outlet / IP		1-digit 7-segment (Orange)
	PDU Current / Outlet Current / IP		3 (Green)
	Current / IP		3-digit 7-segment (Orange)
	Power		1 (Blue)
	10/100 Mbps		1 (Orange / Green)
	Link		1 (Green)
	Sensor		2 (Green)
Switches	Reset		1 x Semi-recessed Pushbutton
	Power		1 x Non-fuse Breaker
I/P Rating			100–120V~; 50/60Hz; 12A	100–240V~; 50/60Hz; 12A	100–240V~; 50/60Hz; 10A
Load Capacity			1440W	2880W	2400W
O/P Rating	Per Port		100–120V~; 50/60Hz; 12A	100-240V; 50/60Hz, 12A	100-240V; 50/60Hz, 10A
	Total		100–120V~; 50/60Hz; 12A	100-240V~; 50/60Hz, 12A	100-240V~; 50/60Hz, 10A
Environment	Operating Temp.		0 - 50°C
	Storage Temp.		-20 - 60°C
	Humidity		0-80% RH Non-condensing
Physical Properties	Housing		Metal
	Weight		2.80 kg	2.87 kg	2.87 kg
	Dimensions ( L x W x H )		43.24 x 21.93 x 4.40 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
