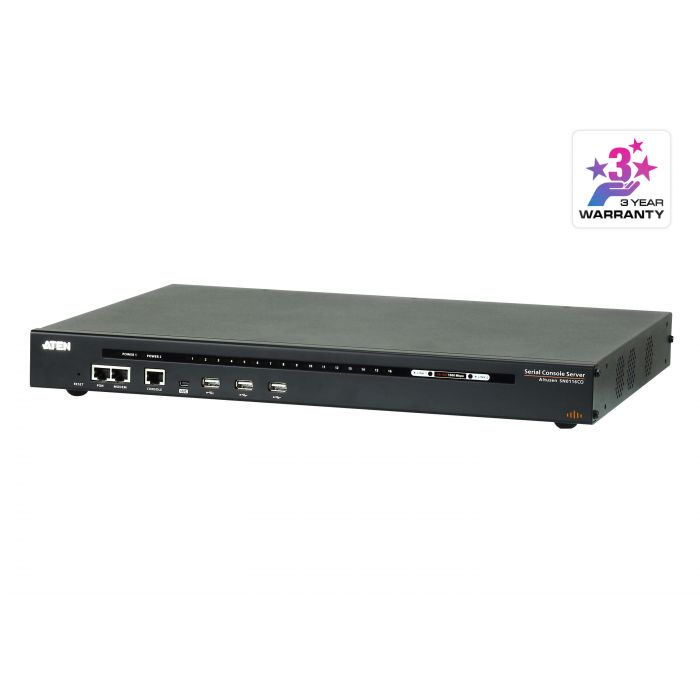

ATEN SN0116CO 16-Port Serial Console Server W/Dual POW

€2,926.99 €2,419.00
Delivery time: 3-5 working days
16-Port Serial Console Server W/Dual POW

Description

ATEN launches a new generation of Serial Console Servers, the SN01xxCO Series (SN0108CO / SN0116CO / SN0132CO / SN0148CO). With dual power / LAN in SN01xxCO models, they integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers.

Features

  • System Accessibility and Availability
    • Secure in-band and out-of-band remote serial console access
    • Browser access with an intuitive GUI
    • Terminal-based access with a menu-driven UI
    • Modem dial-in/dial-back/dial-out access
    • Front USB ports for storage or USB-based PC cards
    • Laptop USB Console (LUC) port for local console access via laptop
    • Dual Ethernet ports allow fail control or dual IP address access
    • Dual power supply



  • Serial Console Management
    • Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
    • Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
    • Response Check - checks the system status of the connected serial devices, and a notification will be sent out if the check fails (e.g. system crash)
    • Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
    • Easy port access via selectable ActiveX or Java serial viewer
    • Comprehensive viewer functions – copy/paste, logging, data import, macros, broadcasting and message board
    • Sun Solaris ready – Sun “break-safe”
    • Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
    • Command filter – administrators can restrict users to execute only pre-defined commands
    • Multiple users can simultaneously access the same port – up to 16 connections per port
    • Modes for simultaneous access – Exclusive/Occupy/Share
    • Integrates with ATEN PDU* products for power management of each port



  • Security
    • Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
    • Configurable user permissions for port access and control
    • Local and remote authentication and login
    • Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
    • IP and MAC address filter for enhanced security protection
    • High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
    • Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control



  • System Management
    • System configuration via web browser, Telnet/SSH client and local console
    • System log and event login
    • Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive
    • SNMP agent
    • Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
    • Backup / Restore system configuration and upgradeable firmware
    • Multi-browser support – Internet Explorer, Chrome, Firefox
    • NTP for time server synchronization
    • IPv4 / IPv6 support
    • Integrates into CC2000 software for centralized data center management
    • Integrates into CCVSR software for user session recording



  • Serial Device Management
    • Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
    • Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
    • Real TTY driver for Linux
    • Fixed TTY driver for UNIX**
    • Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps



  • Language
    • Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese

      Note:
      * PG Series
      ** Fixed TTY Driver Supports 1) OpenServer (Sco Unix); 2) UnixWare 7, SVR 5; 3) UnixWare 2.1, SVR 4.2; 4) QNX 4.25,QNX 6; 5) FreeBSD; 6) Solaris 10; 7) AIX 5.x; 8) HP-UX 11i

Diagram

Content

1x SN0116CO Serial Console Server1x LIN6-04U1-M18G Laptop USB Console Cable2x LIN2-418K-E12G Power Cords (AC models)1x KC06-0029-B02G Mounting Kit2x 0X12-0017-301G Lok-U-Plug1x 0X12-0017-401G Lok-U-Plug Installation Tool1x Foot Pad Set (4 pcs.)1x User Instructions

Specifications

Connection16
Connectors
Serial16 x RJ-45 Female
LAN Ports2 x RJ-45 Female
Power2 x IEC 60320/C14
PON1 x RJ-45 Female (Reserved)
Modem1 x RJ-45 Female
USB Port3 x USB Type A Female
Laptop USB Console (LUC) Port1 x Mini USB
Local Console1 x RJ-45 Female
Switches
Reset1 x Recessed Pushbutton
Power2 x Rocker Switch
Maximum Input Power Rating100-240V~, 1A, 50/60Hz
Power ConsumptionAC110V:15.4W:104BTU
AC220V:14.9W:102BTU
LEDs
Serial16 (Green)
10/100/1000 Mbps2 (Red / Orange / Green)
Power2 (Blue)
Mode of OperationConsole Management, Console Management Direct, Real Com Port, TCP Server/Client, UDP Server/Client, Virtual Modem
Environmental
Operating Temperature0 - 40˚C
Storage Temperature-20 ~ 60˚C
Humidity0 - 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight4.48 kg ( 9.87 lb )
Dimensions (L x W x H)43.72 x 32.98 x 4.40 cm
(17.21 x 12.98 x 1.73 in.)
NoteSN0116COD with dual DC power (I/P Rating: 36-48 V DC; 1.6 A in 5-Pin Terminal Block, Power Consumption: DC48V/16.22W) available at customer’s request
