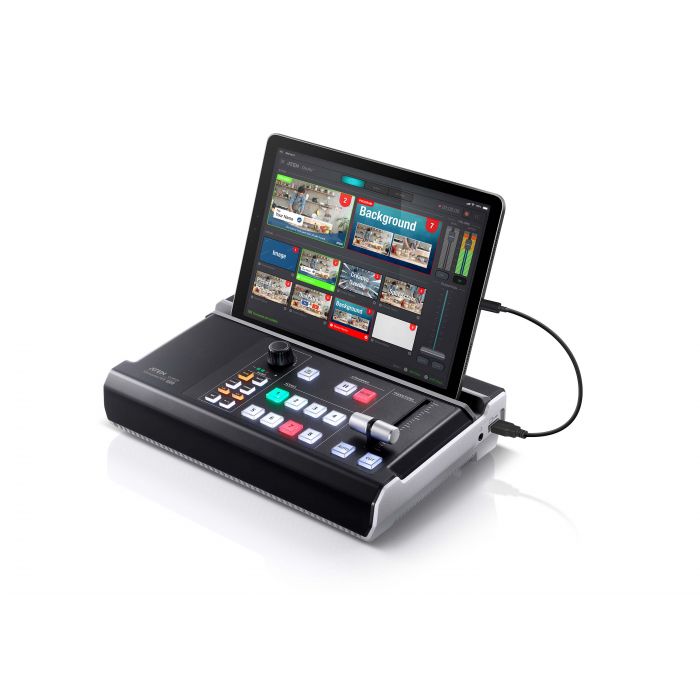

ATEN UC9020 StreamLIVE HD Multi-Channel AV Mixer

€1,178.73 €974.16
Delivery time: 3-5 working days
StreamLIVE HD Multi-Channel AV Mixer

Features

The StreamLIVE™ HD is a portable, all-in-one, multi-channel audio/video mixer device that integrates a 1080p video capture, video recorder, video switch, stream broadcaster, video converter, video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE™ HD makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook,and Twitch.

For added convenience, the StreamLIVE™ HD provides an intuitive app, making it easy to monitor, edit image layouts, and adjust PIP settings. The StreamLIVE™ HD is PC and software-free, and with its well-designed control panel, it makes livestreaming operations smooth and effortlessly. You can even preview video and monitor audio levels before going live with your web broadcast! To get started, simply connect video/audio sources, and an Ethernet with an ATEN app-installed iPad, and you are ready to roll.

Whether you're capturing, editing or streaming, the StreamLIVE™ HD with its ergonomic and practical design, it is flexible enough to fit all independent live streaming broadcasting environments. With a rich feature set, the StreamLIVE™ HD addresses the challenges that independent live streaming broadcasters encounter and provides an easy-to-use solution.



  • All-in-one design to simplify streaming workflow–Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer
  • Professional-quality live streaming to global audiences by any CDN platform , with a low entry threshold, even entry-level users can quickly get started
  • 1080P Recording – features a media recording that can be used to record a program and save recordings directly to a connected external hard drive or flash drive via USB
  • PC-free and software-free with plug-n-roll capability
  • Intuitive app for preview and program monitoring, change video layout in Full Screen/PBP/PIP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish
  • Storyboard-like management – preset up to 8 scenes for later while streaming and during performances to reduce the need to interact with hardware
  • Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys
  • Fanless and optimized thermal air flow system for quiet operation
  • Multitask designed handle-stand to enhance portability and ergonomic comfort angle

Diagram

Content

1x UC9020 StreamLIVE™ HD1x LIN6-09B1-C11G USB-A to USB-C Cable1x LIN5-04U1-U1HG USB-A to USB-A Cable1x LIN2-418K-E12G AC Power Cable1x User Instructions

Specifications

Video Input
Interfaces1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted)
2 x HDMI Type-A Female
(up to 1080p60, switcher, unencrypted )
Video Output
Interfaces1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female
(up to 1080p60, unencrypted)
Video Sampling4:2:2 8-bit
Color Space4:2:2 YUV
Video ResolutionHDMI 1 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25

HDMI 2A/2B Input:*
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25

*Only selected port show video, another one show non-video photo or graph.


SRC/PGM HDMI Output:
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25

HDMI Loop-Through Output:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25
Audio Inputs
InterfacesHDMI captured inputs (stereo)
1 x Mic input, 1/4 TRS jack (dual mono)
1 x Line input, RCA jack, signal level: -10 dBV
Audio Outputs
InterfacesHDMI outputs (stereo)
1x 1/8" TRS jack (stereo)
Network ProtocolDual-stream encoder supports direct live streaming to CDN sever over ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
-------------------------------------------------------
Video Encoding

Format: H.264
Bit rate: 512Kbps~10Mbps
Color format: YUV420
Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
-------------------------------------------------------------------
Audio Encoding

Format: AAC
Sampling Rate: 48kHz
Bit rate: 128kbps
Recording StorageMax. video resolution: 1080p30/25
File format:MP4
Support media: USB 3.x compatible mobile drive (HDD / SSD) or flash drive, at least 32GB of free space
Connection1x USB 3.1 Gen1 Type-A Female (Blue)
1x USB2.0 Type-A(White)
1x GbE LAN port
Environmental
Operating Temperature0 - 40 ºC
Storage Temperature-20 – 60 ºC
Humidity0 - 80% RH, Non-Condensing
OS Support• iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)
Power
Maximum Input Power RatingIEC C14, 100-240 Vac (w/250V fuse)
Power Consumption110V:12.9W:80BTU
220V:12.7W:79BTU
Physical Properties
HousingMetal
Weight1.89 kg ( 4.16 lb )
Dimensions (L x W x H)28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.)
