ATEN US3311 2-Port USB-C 4K DisplayPort KVM Dock Switch with Power Pass-through and USB 3.2 Peripheral Support

Be the first to review this product
€180.34 €149.04
Item in stock
2-Port 4K DisplayPort USB-C KVM Switch with Power Pass-through | Duo Flex (8K, USB 3.2 / 4.0, Thunderbolt 4 Compatible)

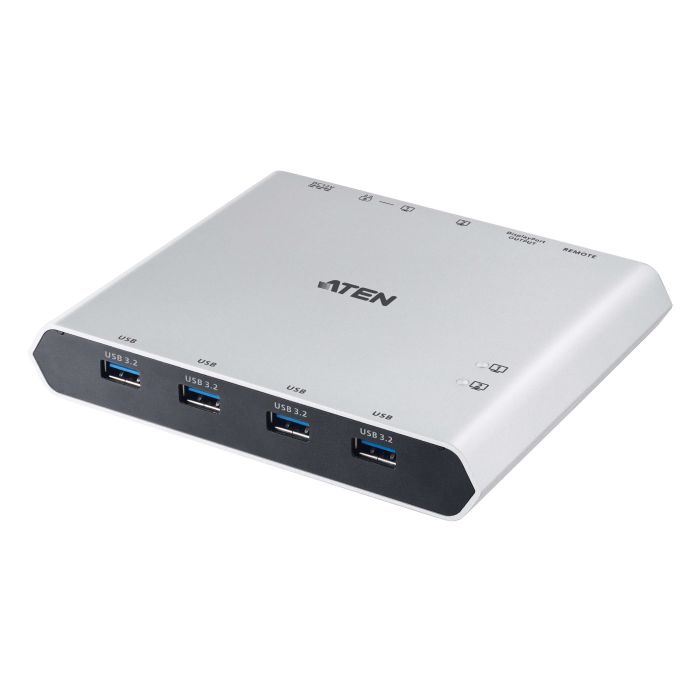

main product photo

Features

  • 2-in-1 solution for 2 USB-C host devices – combines a KVM switch and a multiport dock with 4 x USB 3.2 Gen 1 Type-A ports, 1 x DisplayPort, 1 x USB-C PD input, and 1 x DC jack input
  • Supports DP 1.4 Alt Mode
  • Superior video quality – up to 8K 7680 × 4320, 4K 3840 x 2160 @ 144 / 120 / 60 Hz*
  • ATEN's Video DynaSync™ technology – always optimizes display settings
  • USB 3.2 Gen 1 compliant
  • Up to 5 Gbps data transfer rates
  • Supports PD 3.0 up to 100 W USB PD charging – allows your laptop to obtain the maximum power via your USB-C power adapter
  • Host devices can be selected with the included port switch button or the hotkeys set via ATEN KVM Utility app
  • Plug-and-Play – no drivers needed

    Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz.

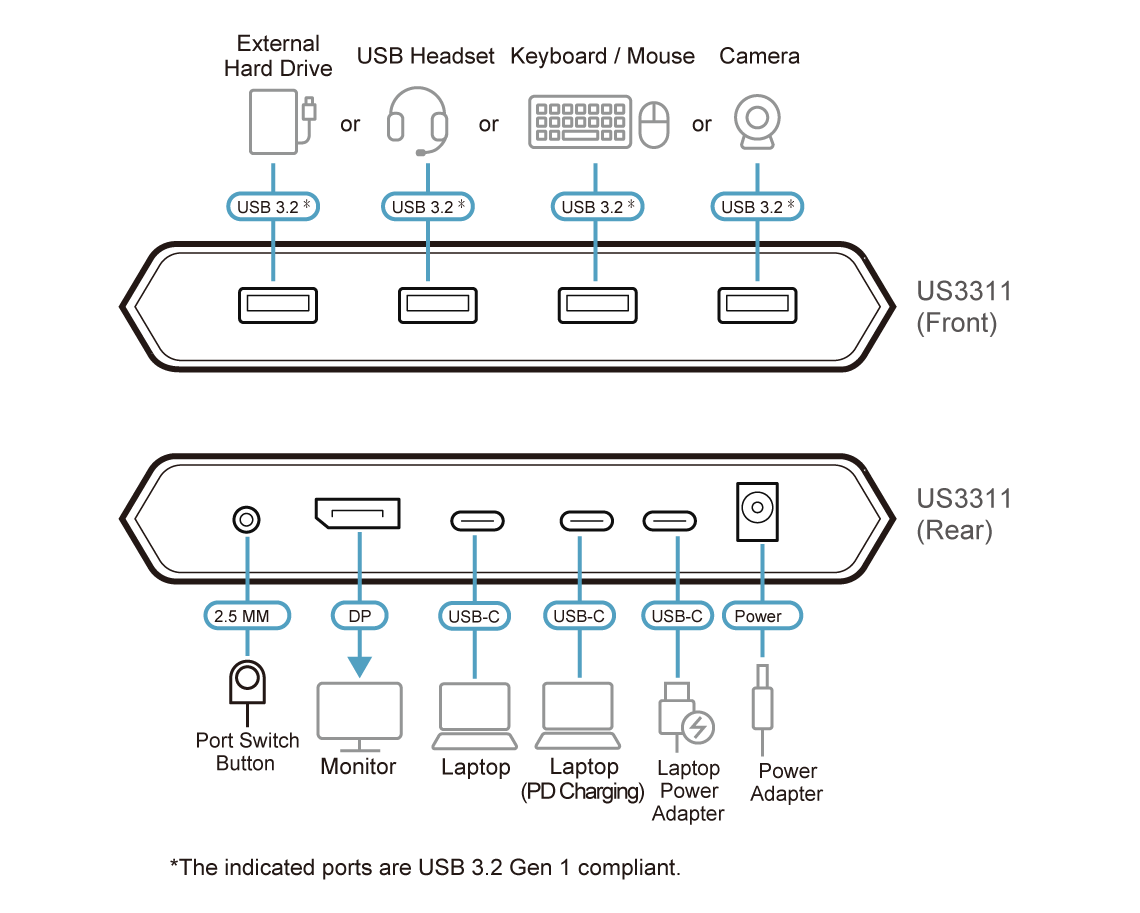

Diagram

Content

1x US3311 2-Port 4K DisplayPort USB-C KVM Switch with Power Pass-through | Duo Flex (8K, USB 3.2 / 4.0, Thunderbolt 4 Compatible)
1x power adapter and power cord
2x USB-C 3.2 Gen 2 full featured cables
1x port switch button
1x user instructions

Specifications

Computer Connections2
Connectors
ComputerCPU1:
1 x USB Type C Female
CPU2:
1 x USB Type C Female
Device4 x USB 3.2 Gen 1 Type-A Female
Video Output1 x DisplayPort Female
Power1 x DC jack for 12V 3.3A
1 x USB-C Female*
Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output
Port 2 : Supports max. 5V, 3A output

*Supports maximum 100W USB-C PD power adapter input.
Port Selection
InputPort Switch Button
Video Resolution3840 x 2160@60
3840 x 2160@120
3840 x 2160@144
7680 x 4320

Note: Please make sure your host device and its accessories meet the Thunderbolt 4 or USB 4.0, with DP 1.4 specifications to deliver up to 4K @ 144 / 120 Hz and 8K resolutions. The USB bandwidth may be limited to USB 2.0 when the video output resolution is over 4K @ 60 Hz.
System RequirementsWindows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 and later, USB-C enabled computer

Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode**
**Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3311"s user manual.

iPadOS 13.1 and later, iPad Pro (USB-C)*
*Support video output in mirror mode

iOS 17.1 and later*
*Compatible with the Apple iPhone 15 Pro series.
Power
Maximum Input Power RatingDC12V, 3.3A
Power ConsumptionDC12V:1.68W:117BTU/h
LEDs
Selected2 (White)
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingAluminum
Weight0.35 kg ( 0.77 lb )
Dimensions (L x W x H)14.30 x 11.90 x 2.38 cm
(5.63 x 4.69 x 0.94 in.)
