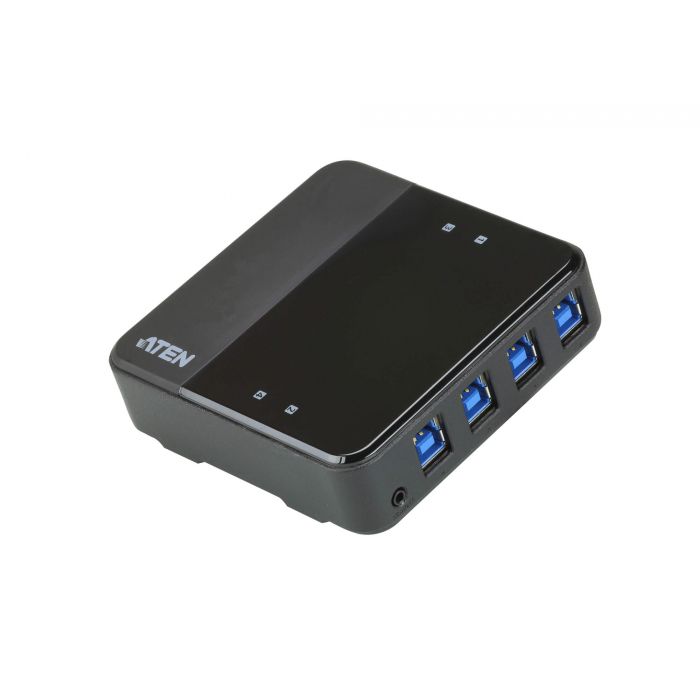

ATEN US3344 4-port USB to USB-C Sharing Switch

€118.23 €97.71
Delivery time: 3-5 working days
4-port USB to USB-C Sharing Switch

Description

ATEN US3344 is a 4-port USB 3.1 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different general computers by using USB 3.1 Gen 1 Type-B to Type-A cables.

Features

  • Enables 4 computers to share 4 USB 3.1 Gen1 devices
  • Simple port selection via remote port selector for convenient switch placement
  • USB 3.1 Gen1 compliant, supporting data transfer rates of up to 5Gbps
  • LEDs indicates which computer is active
  • Over-current protection
  • Micro USB power jack for additional power supply
  • Bus-powered – no external power supply needed
  • Plug and Play – no drivers or external power adapter needed
  • Multiplatform support – Windows, Linux and Mac

Diagram

Content

1x 4 x 4 USB 3.1 Gen 1 Peripheral Sharing Switch2x USB 3.1 Gen 1 Type-B to Type-A Cables 1.2M2x USB 3.1 Gen 1 Type-B to Type-A Cables 1.8M2x USB 3.1 Gen 1 Type-B to Type-C Cables 1.8M1x Remote Port Selector1x User Instructions

Specifications

Computer Connections4
Port SelectionRemote port selector
Connectors
Computer4 x USB Type B Female (Blue)
Device4 x USB Type A Female (Blue)
Power (Optional)1 x USB micro B Female (Black)
Cable Length
USB CableUSB 3.1 Gen 1 B to A Cable 1.2m x 2
USB 3.1 Gen 1 B to A Cable 1.8m x 2
USB 3.1 Gen 1 B to C Cable 1.8m x 2
Remote Port Selector1.8 m
LEDs
Selected4 (White)
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.13 kg ( 0.29 lb )
Dimensions (L x W x H)9.37 x 9.30 x 2.68 cm
(3.69 x 3.66 x 1.06 in.)
