ATEN US434 4-port USB 3.0 Peripheral Sharing Device

€77.33 €63.91
Item in stock
4-port USB 3.0 Peripheral Sharing Device

Description

ATEN US434 is a 4-port USB 3.1 Gen1 peripheral sharing device that allows users to share four USB devices between 4 different computers. US434 is USB 3.1 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.

Features

  • Enables 4 computers to share 4 USB 3.1 Gen1 devices
  • Simple port selection via remote port selector for convenient switch placement
  • USB 3.1 Gen1 compliant, supporting data transfer rates of up to 5 Gbps
  • LEDs indicates which computer is active
  • Over-current protection
  • Multiplatform support – Windows, Linux and Mac
  • Bus-powered
  • Micro USB power jack for additional power supply
  • Hot pluggable, no driver or software required

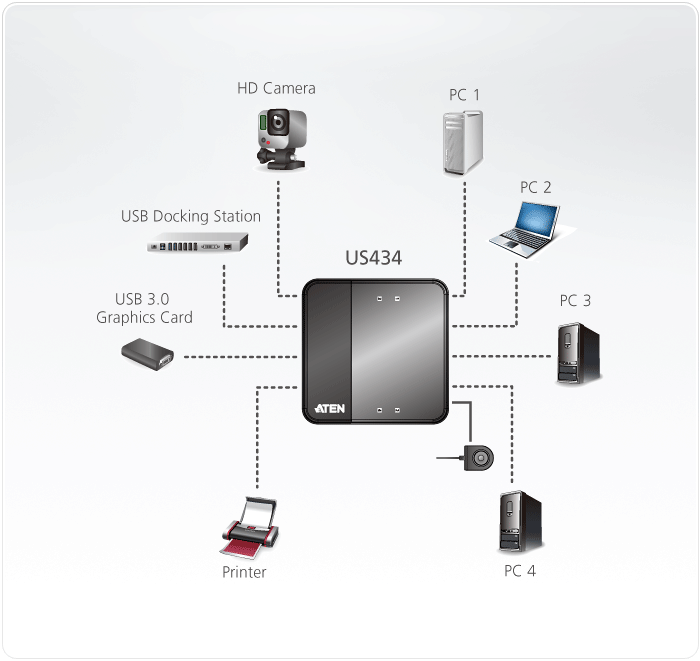

Diagram

Content

1x US434 4 x 4 USB 3.1 Gen1 Peripheral Sharing Switch
2x LIN6-11C1-E11G USB 3.1 Gen1 Type-B to Type-A Cables (1,2m)
2x LIN6-11C1-E12G USB 3.1 Gen1 Type-B to Type-A Cables (1,8m)
1x Remote Port Selector
1x User Instructions

Specifications

Computer Connections4
Port SelectionRemote port selector
Connectors
Computer4 x USB Type B Female (Blue)
Device4 x USB Type A Female (Blue)
Power (Optional)1 x USB micro B Female (Black)
Cable Length
USB Cable2 x 1.2 m / 2 x 1.8 m
Remote Port Selector1.8 m
LEDs
Selected4 (White)
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.13 kg ( 0.29 lb )
Dimensions (L x W x H)9.37 x 9.30 x 2.68 cm
(3.69 x 3.66 x 1.06 in.)
