Aten VB100 VGA Booster

Name: Aten VB100 VGA Booster
Brand: Aten
SKU: VB100
Price: 66.79 EUR
Availability: InStock

Be the first to review this product

€66.79 €55.20

Item in stock

HDMI Audio/Video Extender + IR + RS232 over one Fiber (20km)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The VB100 VGA Booster amplifies the VGA signal from a source device and transmits it to a display up to 70 meters away. The VGA booster extends the display distance without any signal loss; to bring you a crystal clear video display at a longer distance. The VB100 is built with a compact housing design for easy installation and manual gain control to improve image quality at different distances. The VB100 can be powered from the VGA source and has a built-in LED indicator for power. The VB100 supports hotplugging and requires no software forinstallation, making it an easy, compact, and affordable solution to extend your VGA display.

Voor meer informatie.

Features

Long distance transmission – up to 70 m
Adjustable video compensation – manually adjust signal strength to compensate for distance
Superior video quality – up to 1920 x 1200 (30 m); 1280 x 1024 (70 m)
Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
Supports wide screen formats
Supports hot-plugging
Compact housing
LED indication of power status and source device
Plug-and-play – no software installation required

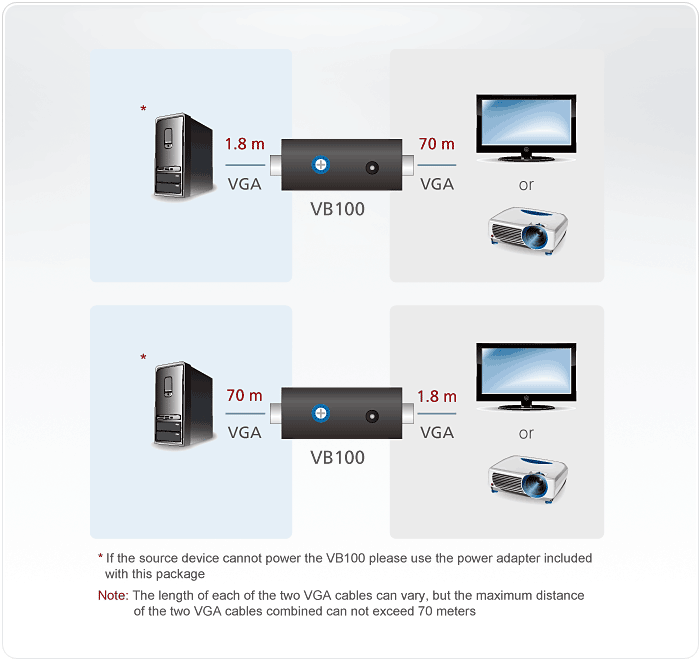

Diagram

Content

1x VB100 VGA Booster
1x 0AD6-1705-10EG Power Adapter
1x User Instructions

Specifications

Connectors	Video In	1 x HDB-15 Female (Blue)
	Video Out	1 x HDB-15 Female (Blue)
	Power Jack	1 x DC Jack
Switches	Manual Gain Control	1 x Knob
LED	Power	1 (Green)
Video	Signal Range	1920 x 1200@60Hz 30 m, 1280 x 1024@60Hz 70 m
Power Consumption		DC 5V; 0.9W
Environment	Operating Temp.	0-50°C
	Storage Temp.	-20-60°C
	Humidity	0–80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	56 g
	Dimensions (L x W x H)	6.88 x 3.53 x 2.06 cm
