Aten VB802 HDMI Over Cat5 Repeater

Be the first to review this product
€189.67 €156.75
Delivery time: 3-5 working days
VB802 HDMI Over Cat5e/6 Audio/Video Repeater (60m)

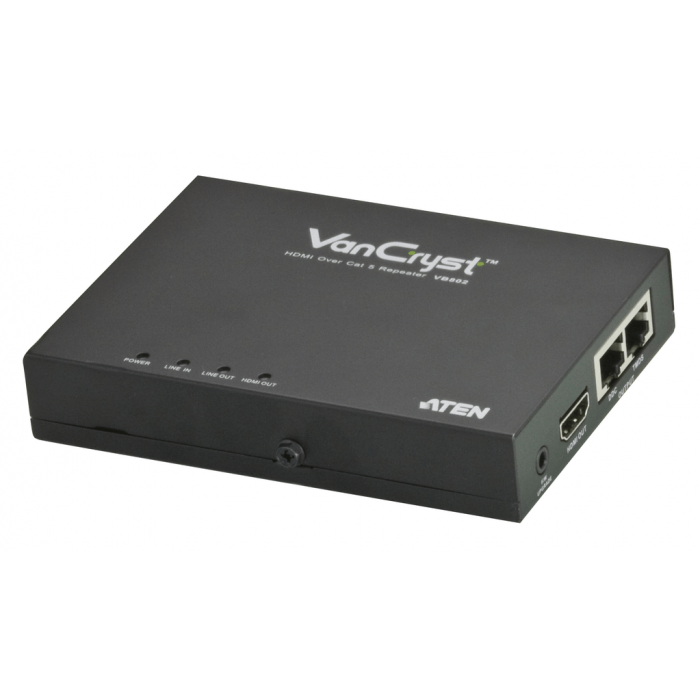

main product photo

Description

The VB802 HDMI Over Cat 5 Repeater is an HDMI signal extension device which is compatible with ATEN HDMI Over Cat 5 Splitters or Extender. The VB802 extends the transmission range an extra 60m over two Cat 5e cables.

The use of an additional repeater means the HDMI signals can be transmitted over even longer distances. By using up to 4 x VB802 and 1 x VE800R in one installation, signals can be transmitted over longer distances (up to 300m).

Voor meer informatie.

Features


Uses two Cat 5e cables to extend HDMI signal
Long distance transmission – up to 60 m
Provides the quickest and most efficient way to move multimedia content from Transmitter to Receiver
Offers local HDMI output
HDMI and HDCP compatible
HDMI (3D)
Supports Dolby True HD and DTS HD Master Audio
8-level EQ adjustment to improve image quality
Cascadable to five levels*
Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
* Signal quality depends on cables. We recommend STP Cat 5e/6 cables or ATEN low skew cable (Part No. 2L-2801)

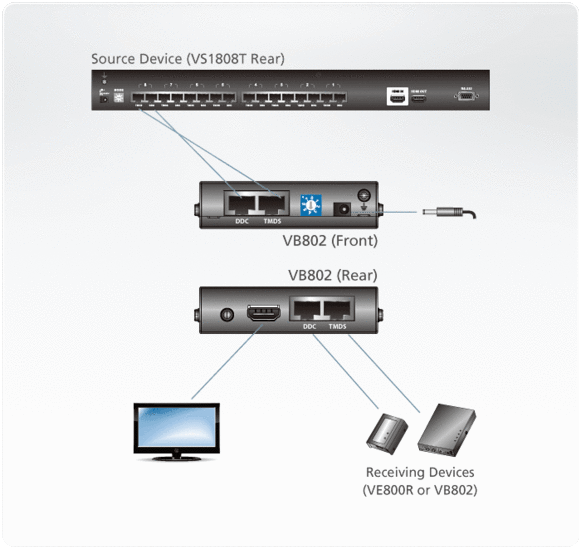

Diagram

Content

1x VB802 HDMI Over Cat 5 Repeater
1x 0AD6-1605-24EG Power Adapter
1x Mounting Kit
1x User Instructions

Specifications

Connectors Line In TMDS 1 x RJ-45 Female
DDC 1 x RJ-45 Female
Line Out TMDS 1 x RJ-45 Female
DDC 1 x RJ-45 Female
HDMI Out 1 x HDMI Type A Female (Black)
F/W Upgrade 1 x 3.5mm Jack (Black)
Power 1 x DC Jack
Switches EQ Adjustment 1 x 8-position Switch
LEDs Power 1 (Green)
Line In 1 (Green)
Line Out 1 (Green)
HDMI Out 1 (Green)
Video 1080p @ 40 m; 1080i @ 60 m
Power Consumption DC5.3V, 5.3W
Environment Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 252 kg
Dimensions
(L x W x H)		 11.95 x 8.56 x 2.26 cm
