VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m. .
• Uses a single Cat 5e cable to connect the transmitter and receiver • Uses Cat 5e cable to connect the transmitter and receiver uints • Cascadable up to 10 levels • Long distance transmission up to 150m • Superior video quality – 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m) • Audio enabled (mono) • Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance • Built-in 8KV/15KV ESD protection • Rack-mountable • Complies with VESA FDMI mount standard

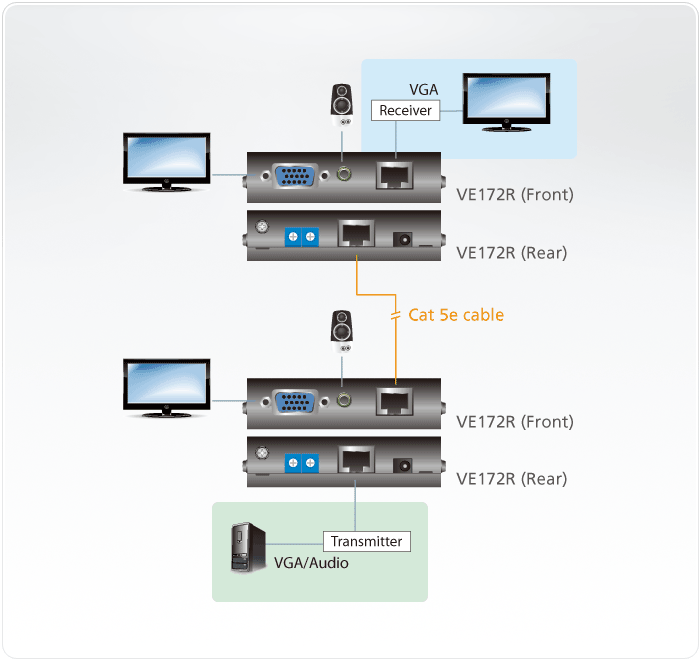

Diagram
Content
1x VE172R A/V Over Cat 5 Receiver with Cascade 1x 0AD6-1605-09EG Power Adapter 1x Mounting Kit 1x User Instructions
Specifications
Connectors
Video Out
1 x HDB-15 Female (Blue)
Audio Out
1 x Mini Stereo Jack Female (Green)
Line Input
1 x RJ-45 Female
Line Output
1 x RJ-45 Female
Power
1 x DC Jack
LEDs
Power
1 (Green)
Switch
Manual Gain / Compensations Control
2 x Knob
Video
1920 x 1200 @60Hz (30m), 1600 x 1200 @60Hz (100m), 1280 x 1024 @60Hz (150m)
Power consumption
DC5.3V, 2.3W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0–80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
242g
Dimensions (L x W x H)
11.95 x 8.56 x 2.26 cm
• * The specification and pictures are subject to change without notice. • * All trademarks and logos are the properties of their respective holders.
