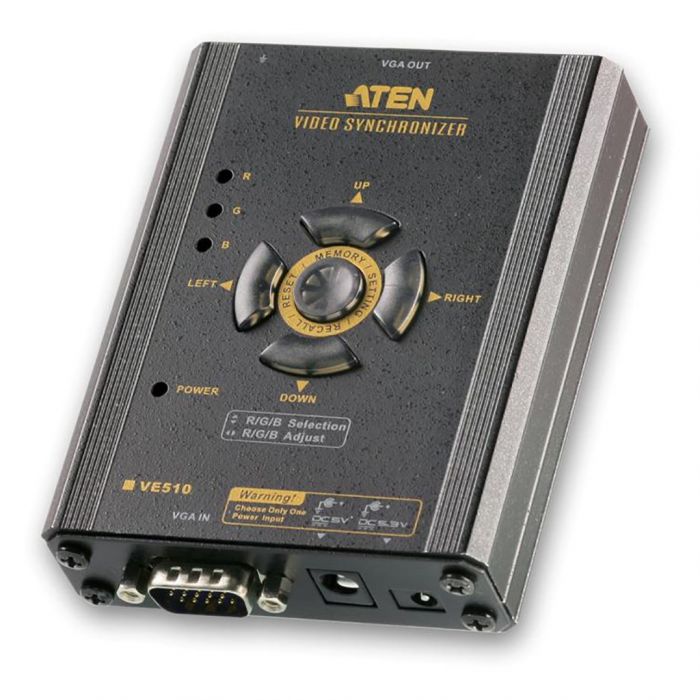

Aten VE510 Video Synchronizer

Name: Aten VE510 Video Synchronizer
Brand: Aten
SKU: VE510
Price: 199.95 EUR
Availability: InStock

Be the first to review this product

€199.95 €165.25

Discontinued

Video Synchronizer

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The VE510 Video Synchronizer is designed to compensate for video signal delays over large distances. The VE510's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings, store the settings and retrieve them later using the memory button.

Voor meer informatie.

Features

Connects VGA based video devices to VGA displays and enhances the video quality in long distance installations
Compensates for a delay and synchronizes signal delays
RGB delay tuner-manually synchronizes the RGB signals via pushbuttons
Skew equalization
Memory set button-allows the storing and recalling of user settings
LED display for status monitoring
Easy to install
Hot pluggable
Compact Size-Din Rail and Wall mountable
Compatible with ATEN KVM Extenders, Video Extenders and KVM Switches

Remark: Color Adjustment Picture:
640x480 800x600 1024x768 1280x1024

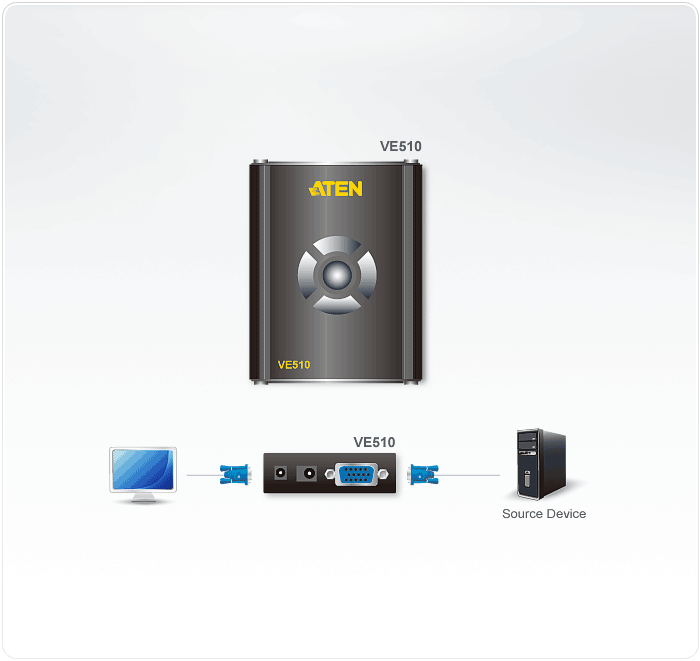

Diagram

Content

1x VE510 VGA Video Synchronizer
1x VGA Cable
1x Power Transfer Cable
1x Mounting Kit
1x Grounding Wire
1x User Guide

Specifications

Connectors	Video In	1 x HDB-15 Male (Blue)
	Video Out	1 x HDB-15 Female (Blue)
	Power Jack 1	1 x DC 5V Jack
	Power Jack 2	1 x DC 5.3V Jack
Switches	R/G/B Selection	2 x Pushbutton
	R/G/B Delay Tuner	2 x Pushbutton
	Memory/Setting/ Recall/ Reset	1 x Pushbutton
LEDs	Power	1 (Orange)
	Red	1 (Red)
	Green	1 (Green)
	Blue	1 (Blue)
Power Consumption		DC 5.3V 1.48 W ; DC 5V 1.48W
Environment	Operating Temp.	0-50?C
	Storage Temp.	-20-60?C
	Humidity	0~80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	0.21 kg
	Dimensions (L x W x H)	11.02 x 7.90 x 2.44 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
