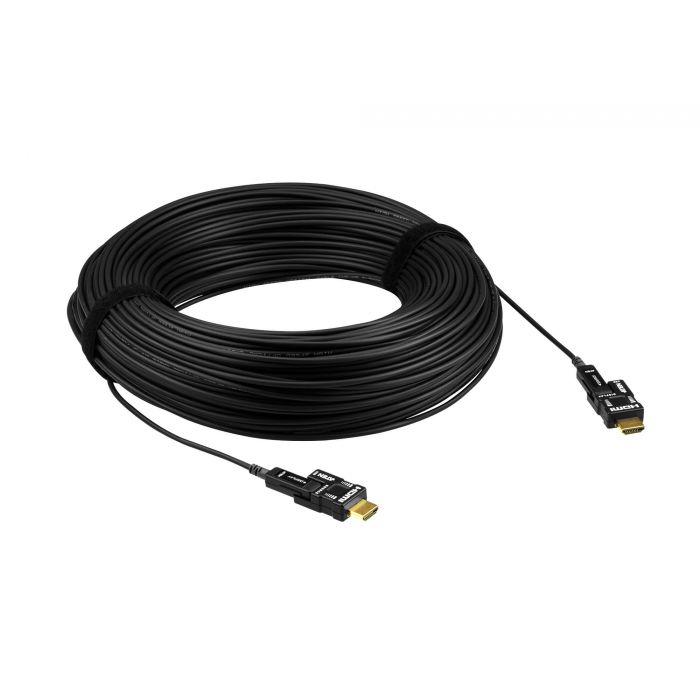

ATEN VE7835 100m 4K HDMI Active Optical Cable

Name: ATEN VE7835 100m 4K HDMI Active Optical Cable
Brand: Aten
SKU: VE7835
Price: 1205.52 EUR
Availability: InStock

Be the first to review this product

€1,205.52 €996.30

Delivery time: 3-5 working days

100M True 4K HDMI 2.0 Active Optical Cable (True 4K@100m)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 100 m
Reduced EMI and RFI for lower noise interference
Gold-plated connectors for reliable transmissions
Pluggable gender for easy installation

Features

HDMI 2.0 (3D, Deep Color, True 4K); HDCP 2.2 compliant
Extends True 4K signals (4096 x 2160 @ 60Hz 4:4:4) up to 100 m
Reduced EMI and RFI for lower noise interference
Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
Additional power source is available via Micro USB cable for better compatibility
Gold-plated connectors for reliable transmissions
Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)
Pluggable gender for easy installation
Plug-and-play

Diagram

Content

1x VE7835 100M True 4K HDMI 2.0 Active Optical Cable
1x Wiring Tool
2x Screws
2x Micro USB to USB Cables
1x Installation Notice
1x User Instructions

Specifications

Certifications
Certifications	Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF
Notification	Bend Radius: 6mm (Min.) Connector Pull Strength: Max. 10kg (100N) Compression Load Resistance: Max. 50kg (500N) Reduced EMI & RFI
Jacketed
Material	UL Plenum (CMP-OF)
Conductor
Construction	6 x Insulated Copper wire (28 AWG) 4 x Fiber
Cable Length	100M / 328ft
Communication
Signals	TMDS / HDCP 2.2 / EDID / CEC
Power (Optional)	Optional power source: Micro USB to USB cable (45cm) 5V, 0.148A
Audio
Input	PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output	PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Cable Type	Cable Type: Hybrid optical with fiber and copper wire HDMI Standards: High Speed HDMI Cable (HDMI 2.0)
Video Input
Interfaces	1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black) 1 x HDMI Type-D Male (Black)
Video Output
Interfaces	1 x HDMI 19-pin Type-A Male (gold-plated) pluggable (Black) 1 x HDMI Type-D Male (Black)
Video
Max. Data Rate	18 Gbps (6 Gbps per Channel)
Max. Pixel Clock	600 MHz (Max.)
Compliance	HDMI 2.0 (3D, Deep Color, 4K, HDR) HDCP 2.2 Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 Color Depth: 30 / 36 / 48 bit
Max. Resolutions / Distance	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 100m
Power Consumption	DC5.3V:0.63W:2.15BTU
Environmental
Operating Temperature	0°C to 50°C (32? to 122?)
Storage Temperature	-20°C to 70°C (-4? to 158?)
Humidity	0 - 85% RH, Non-Condensing
Physical Properties
Housing	Connector Case: ABS (Acrylonitrile Butadiene Styrene)
Weight	1.64 kg ( 3.61 lb )
Cable Outer Dimension	Cable Outer Diameter: 3.4mm (± 0.2mm)
Conductor Gauge	Copper wire (28 AWG)
Conductor Material	Copper
Unit weight	1.64 kg / 3.61 lb
Carton Lot	5 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Datasheet

ATEN VE7835 100m 4K HDMI Active Optical Cable Datasheet
