Aten VE803 HDMI&USB2.0 Extender

€139.31 €115.13
Item in stock
USB2.0 Full Speed ( 12Mbit/s ) 1080P 40meters / 1080i 60mbeters

Description

The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.

The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.

The VE803 is ideal for transportation centers, medical facilities, shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience, the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant, providing an easy and ideal HDMI extender solution for any application.

Voor meer informatie.

Features


Uses two Cat 5e cables to connect the local and the remote units
Extends 1080p by 40m; extend 1080i by 60m
Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
Supports USB touch panel
8 segment equalization adjustment switch optimizes display quality
Support Dolby True HD and DTS HD Master Audio
Built-in 8KV/15KV ESD protection
Supports USB 2.0 full speed devices (12 Mbit/s)
Supports wide screen formats
HDMI (3D, Deep Color); HDCP compatible – signaling rates up to 2.25Gbits
Powered local unit via USB cable

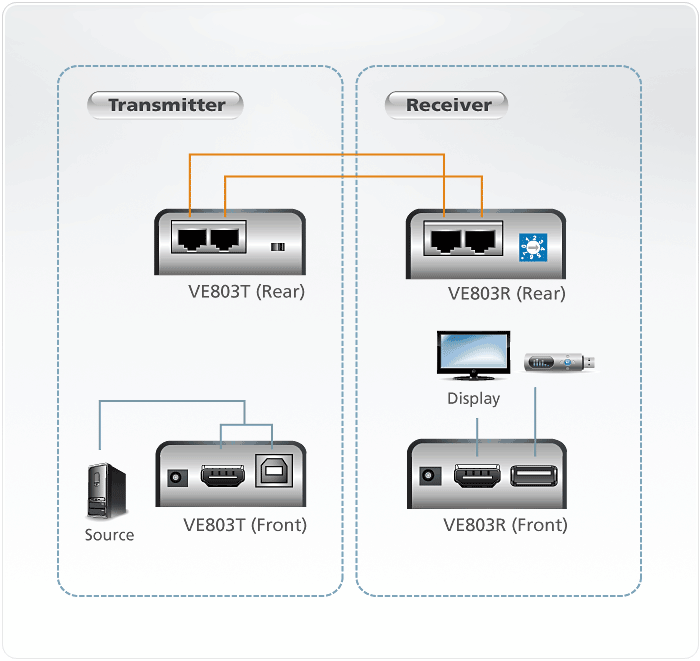

Diagram

Content

1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions

Specifications

Function VE803T VE803R
Connectors HDMI In 1 x HDMI Type A Female (Black) N/A
HDMI Out N/A 1 x HDMI Type A Female (Black)
USB 1 x USB Type B Female (White) 1 x USB Type A Female(White)
HDMI/USB Port * 2 x RJ-45 Female (Silver)
Power 1 x DC Jack
Switches EQ
Compensation
N/A 1 x 8 position switch
EDID Selection 1 x slide switch N/A
LEDs Power 1 (Green) 1 (Green)
HDMI N/A 1 (Green)
USB N/A 1 (Green)
Video 1080p @ 60Hz, at 40m
1080i @ 60Hz, at 60m
Power Consumption DC5V, 1W DC5V, 3.9W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.16 kg
Dimensions
(L x W x H)
7.16 x 3.16 x 2.30 cm
