Aten VE812 HDMI Extender

Be the first to review this product
€469.89 €388.34
Delivery time: 3-5 working days
HDMI Extender over 1 CAT5e/6 ,4Kx2K , 3 level cascadable (100m)
main product photo

Description

The VE812 HDMI over Single Cat 5 Extender enables an HDMI display to be located up to 100 meters away from the source device. It can conveniently be extended using only one Cat 5e cable, which is cost-effective.
The VE812 not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k x 2k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display.

The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.

Voor meer informatie.

Features

• Uses a single Cat 5e cable to connect the transmitter and receiver
• Supports HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
• Long distance transmission - up to 100m
• Superior video quality - up to 1080p, 4kx2k
• Supports Dolby True HD and DTS HD Master Audio
• Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

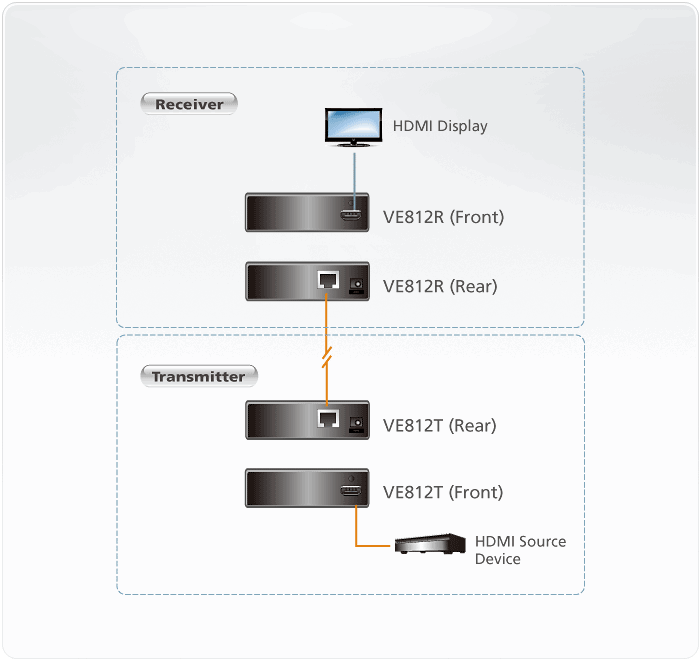

Diagram

Content

1x VE812T HDMI Over Single Cat 5 Transmitter
1x VE812R HDMI Over Single Cat 5 Receiver
2x 0AD6-1605-24EG Power Adapters
1x User Instructions

Specifications

Function VE812T VE812R
Connectors HDMI In 1 x HDMI Type A Female (Black) N/A
HDMI Out N/A 1 x HDMI Type A Female (Black)
Line In/Out 1 x RJ-45 Female (Silver)
Power 1 x DC Jack (Black)
LEDs Power/Link 1 (Green)
HDMI Out N/A 1 (Green)
Video 4k x 2k, 1080p @ 60Hz at 100m
Power Consumption DC5.3V, 1.9W DC5.3V, 4.5W
Environment Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties		 Housing Metal
Weight 0.40 kg
Dimensions
(L x W x H)		 14.17 x 10.30 x 3.00 cm
    • * The specification and pictures are subject to change without notice.
    • * All trademarks and logos are the properties of their respective holders.
