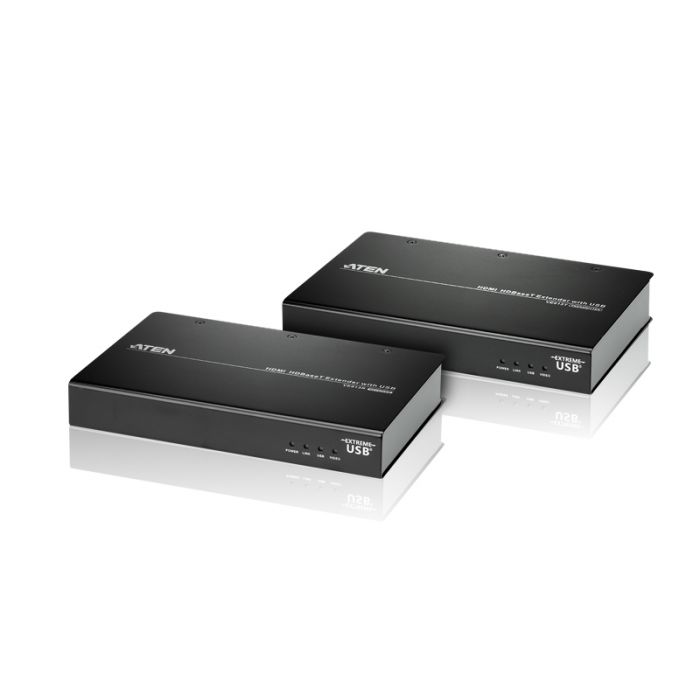

The VE813 HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and ExtremeUSB technology. The VE813 can extend an HDMI signal up to 100 meters from the HDMI source using a single Cat 5e/6 cable. The VE813 supports HDMI features such as 3D, Deep Color, 4k2k, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for syncing files and folders between portable and desktop computers. The VE813 is ideal for medical imaging and digital signage.
Features
Implements HDBaseT extension technology using only one Cat 5e/6 cable to connect the transmitter and receiver
Long distance transmission – up to 100 m
Supports resolutions of up to Ultra HD 4Kx2K and 1080p Full HD
HDMI (3D, Deep Color, 4Kx2K); HDCP compatible
Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
Supports up to 340MHz bandwidth for high performance video
Signaling rated up to 3.4 Gbits
ExtremeUSB® Support – supports all USB 2.0 High Speed device
Supports Dolby True HD and DTS HD Master Audio
Consumer Electronics Control (CEC)Support
Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
USB 2.0 Support – connects devices such as keyboard, mouse, flash drive, printer, microphone, speakers, USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth
Note: The VE813 supports USB transfer rates of up to 30 Mbps.

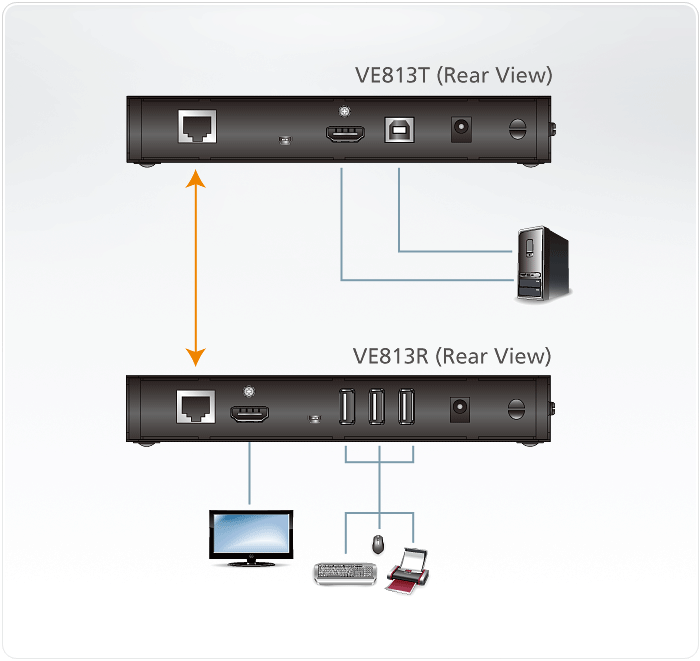

Diagram
Specifications
Function
VE813T
VE813R
Connectors
HDMI In
1 x HDMI Type A Female (Black)
N/A
HDMI Out
N/A
1 x HDMI Type A Female (Black)
USB
1 x USB Type B Female
3 x USB Type A Female
Firmware Upgrade
1 x RJ-11 Female (Black)
Power
1 x DC Jack (Black)
Unit to Unit
1 x RJ-45 Female
LEDs
Power
1 (Green)
Link
1 (Green)
USB
1 (Green)
Video
1 (Green)
Video
1920x1200 ; 1080P ; 4Kx2K
Power Consumption
DC 5V, 15 W
Environment
Operating Temp.
0–50°C
Storage Temp.
-20–60°C
Humidity
0–80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.61kg
0.60 kg
Dimensions (L x W x H)
18.20 x 11.61 x 2.87 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
