Place your HDMI displays up to 100 meters away from your HDMI source devices with the VE814T HDMI Transmitter over single Cat 5 with Dual Display. Connecting to the VE814R receiver via affordable and easily available Cat 5e/6 cable, your media can be streamed to up to three HDMI displays – dual displays connected to the receiver and another to the transmitter.
Features
Extends the distance between HDMI source and HDMI display
Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
Supports one local and two remote displays
Supports two IR channels for bi-directional IR signal transmission
Extends Ethernet communication with pass-through port
HDMI (3D, Deep Color,4kx2k); HDCP Compatible
Long distance transmission – up to 100 m
Supports wide screen
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Supports up to 340 MHz bandwidth for high performance video
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
RS-232 Serial Port for serial device peripherals, such as touch screens, bar coders scanners, and so on
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
Easy to install – no software required
Rack Mountable

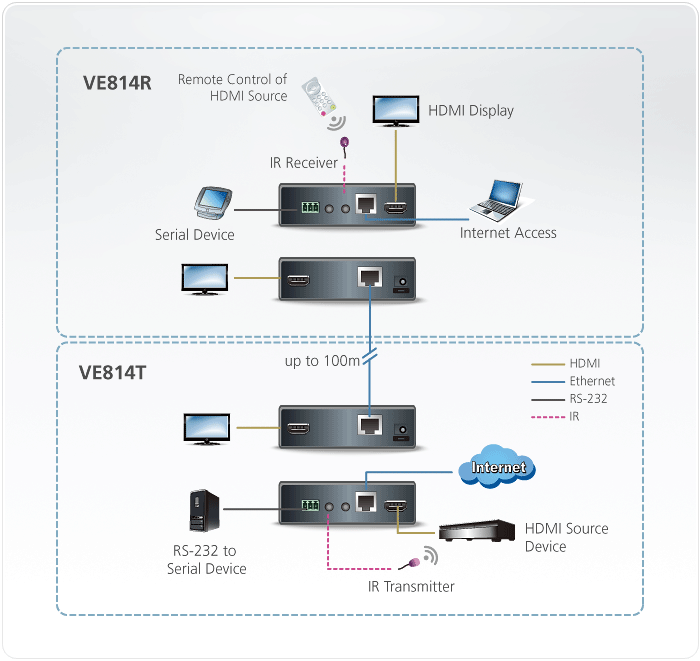

Diagram
Content
1x VE814T 1x Mounting Kit 1x 0AD6-1605-24EG Power Adapter 1x User Instructions
Specifications
Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
1.8 m
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ?
Video
Max. Data Rate
10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock
Up to 340 MHz
Compliance
HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
