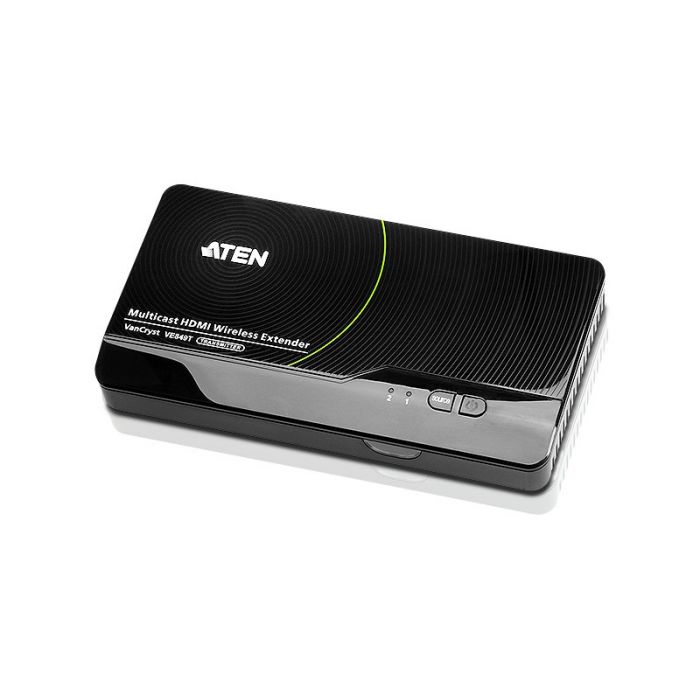

The VE849T Multicast HDMI Wireless Transmitter allows you to position HDMI displays up to 30m* away from HDMI sources when used in unison with up to 4 VE849R receivers. Easily connect two HDMI source devices, a local HDTV and up to four receivers (connected to remote HDTVs) wirelessly, while ensuring crystal clear image quality (Full 1080p), 5.1 channel Dolby digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices remotely from the receiver side, making watching up to one local and four wirelessly connected HDTVs simultaneously a breeze!
Features
Connect 2 HDMI inputs to 5 HDMI outputs (1 local + 4 remote) via wireless extension*
Wirelessly extend four HDMI displays up to 30m* from the HDMI source
Connect and transmit wireless video content from your Blu-ray DVD player, media players, or other HDMI device wirelessly
Multicast signal - 1 transmitter streams HDMI transmissions to 4 receivers simultaneously
Supports Dynamic Frequency Selection (DFS) - greatly reduces Wi-Fi signal interference for improved transmission quality and stability
Wireless 3D supported
Wireless Full HD (1080p) and 5.1 channel Dolby with AC3 and DTS digital audio
Superior video quality: 480p, 720p, 1080i, and 1080p (24 / 30 / 60fps)
Keeps home theater electronic devices neatly out-of-sight
Built-in IR receiver with IR blaster cable allows control of remote source devices
WHDI™ Technology - Low latency <1ms
HDCP compatible
No software or driver installation needed
* Distance may vary depending on the actual environment; solid objects such as steel, concrete, or brick may cause interference and shorten the transmission distance

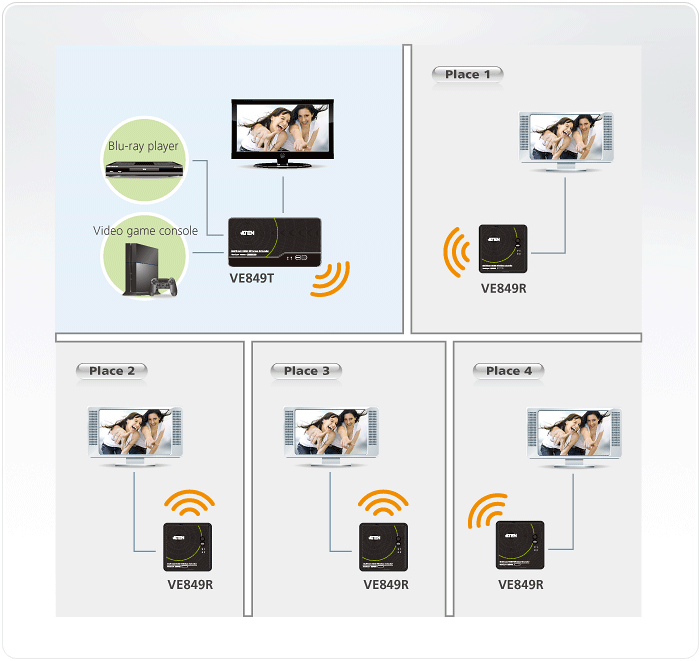

Diagram
Content
1x VE849T Multicast HDMI Wireless Transmitter 1x IR Remote Control with 2 AAA Batteries 1x IR Blaster Cable 1x 0AD6-1705-26EG Power Adapter 1x User Instructions
Specifications
Video Input
Interfaces
2 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
1.8 m
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ?
Video
Max. Data Rate
6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock
225 MHz
Compliance
HDMI (3D) HDCP Compatible
Max. Resolutions / Distance
Up to 1080p@30m (Line of Sight) *
Audio
Input
2 x HDMI Type A Female (Black)
Output
1 x HDMI Type A Female (Black)
Control
IR
1 x 2.5mm Mini Stereo Jack Female (Black)
Connectors
Power
1 x DC Jack
Power Consumption
5 VDC, 10W
Environmental
Operating Temperature
0 - 40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Plastic
Weight
0.21 kg ( 0.46 lb )
Dimensions (L x W x H)
18.00 x 9.50 x 3.00 cm (7.09 x 3.74 x 1.18 in.)
Carton Lot
5 pcs
Note
* Distance may vary depending on the actual environment; solid objects such as steel, concrete or brick may cause interference and shorten the transmission distances.
