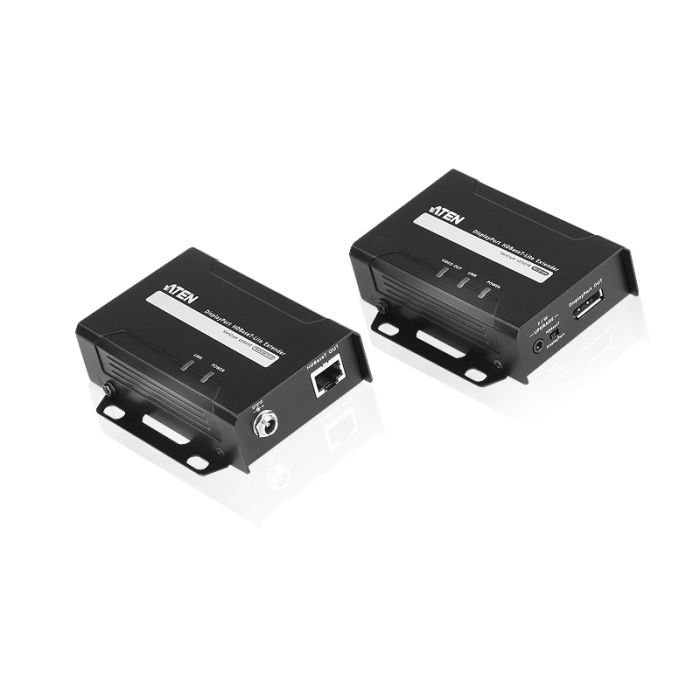

The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
| Function | VE901R | VE901T |
| Video Input | ||
| Interfaces | N/A | 1 x DisplayPort Female (Black) |
| Impedance | N/A | 100 ? |
| Max. Distance | N/A | 1.5 m |
| Video Output | ||
| Interfaces | 1 x DisplayPort Female (Black) | N/A |
| Impedance | 100 ? | N/A |
| Video | ||
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) | 10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock | 297 MHz | 297 MHz |
| Compliance | DisplayPort (Deep Color, 4K) HDCP Compatible | DisplayPort (Deep Color, 4K) HDCP Compatible |
| Max. Resolutions / Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | N/A | 1 x DisplayPort Female (Black) |
| Output | 1 x DisplayPort Female (Black) | N/A |
| Connectors | ||
| Power | 1 x DC Jack (Black) with locking | 1 x DC Jack (Black) with locking |
| Power Consumption | DC5V:5.72W | DC5V:2.84W |
| Environmental | ||
| Operating Temperature | 0-40°C | 0-40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.27 kg ( 0.59 lb ) | 0.24 kg ( 0.53 lb ) |
| Dimensions (L x W x H) with bracket | 9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.) | 9.77 x 8.70 x 3.00 cm (3.85 x 3.43 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.) | 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.) |
