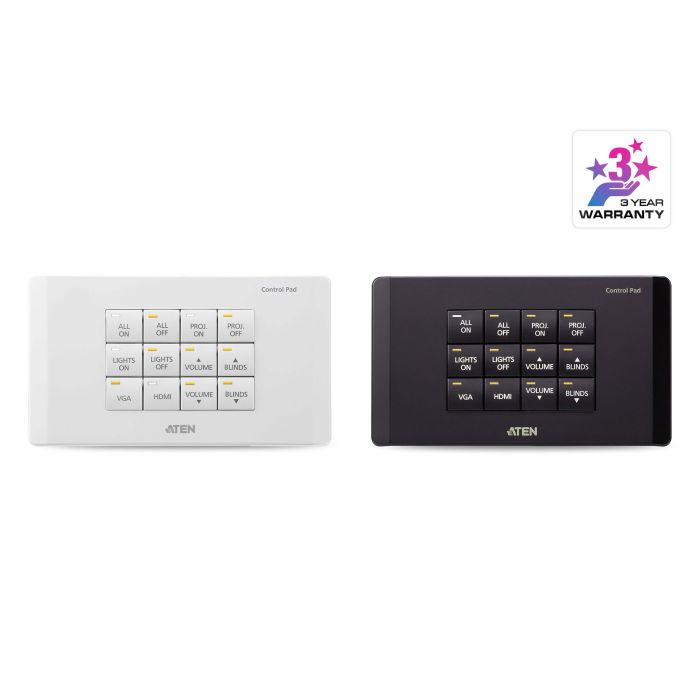

The VK0200 is a fully-customizable 12-button Control Pad that integrates a controller with a keypad as an all-in-one solution. Aimed for small/medium meeting room or classroom control, the VK0200 offers a ready-to-use solution that easily connects the devices, configures via the intuitive VK6000 Configurator Software, and flexibly customizes keypad button functions and layout to fulfill most applications.
Features
Supports various interface connections: • 2 x RS-232 ports • 2 x Relay channels • 1 x Digital input channel • 1 x Ethernet port
Designed to mount in 2-gang EU-type and MK-type junction boxes
Fully customizable with 125 layout combinations of 6 to 12 buttons
Available in black or white color
Web Viewer – integrated with 3rd-party systems or any web-based console for easier room equipment management
Supports native KNX IP for building management systems
TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
Supports Modbus protocol - enables integration with Modbus devices, including TCP, RTU and its checksum data
Supports Telnet CLI (command-line interface) mode for third-party system integration
Supports Modbus protocol – enables integration with Modbus devices, including TCP, RTU and its checksum data
Supports Telnet CLI (command-line interface) mode for third-party system integration
Supports project file backup1
Web GUI for easy system configuration
Supports SSH communication for data monitoring2
LED indication of connection and hardware status
Dual-color LEDs for clear indication in dark environments
Dual power supplies – Power over Ethernet (PoE) and DC 5V (optional)
Customized button engraving service
Allows for remote control via mobile device3
Flexible installation is made easier with the keypad tabletop kit (VK0200TTK), allowing for device mounting on the table or to the wall
Note: 1. Each ATEN Control Box is capable of backing up one project file. 2. The SSH protocol can be used for monitoring the receiving / transmission data of the Control Pad. 3. Mobile device control requires a license. Please refer to the Specifications or contact your local sales representative for more details about licenses.

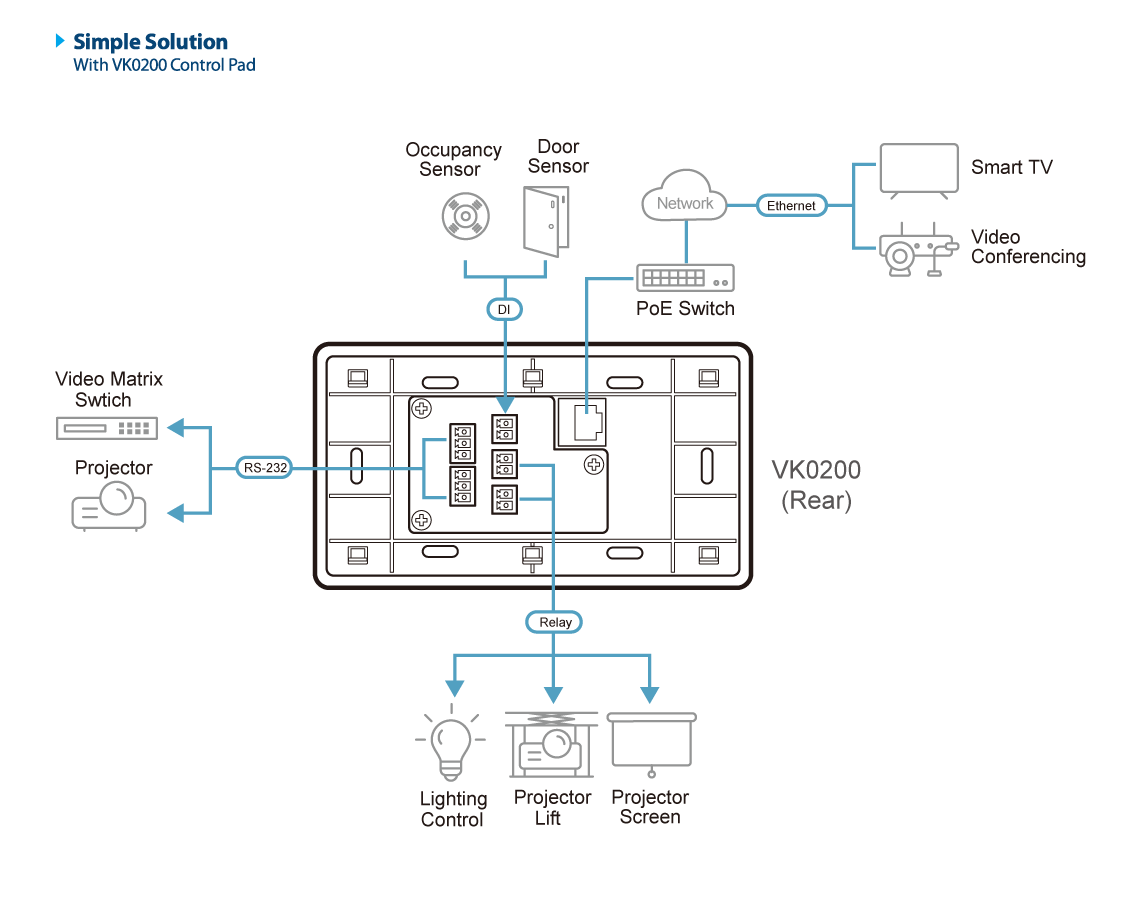

Diagram
Content
1x VK0200 12-button Control Pad
1x Button Pack
6x Terminal Blocks
1x 0X12-0078-100G Faceplate
1x User Instructions
Specifications
Interfaces
Keypad Layout
6~12 buttons customizable in 125 keypad layouts
Serial
• 2 x Bi-directional RS-232 Port (2 x 3-Pole Terminal Block Connector); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), even or odd
Relay
• 2 x Relay Channel (2 x 2-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 1A
I/O
• 1 x Digital Input Channel (1 x 2-Pole Terminal Block Connector); – VDC Mode Input Voltage Range: 0 to 5 VDC; Programmable Range: 1 to 5 VDC; – Dry Contact Mode Pull-up 2k ohms to + 5 VDC
Ethernet
• 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
Switches
Controller ID
1 x 16-segment Switch
Reset Button
1 x Semi-recessed Pushbutton
Power Consumption
DC5V:1.15W:5BTU/h POE:1.44W:7BTU/h
Environmental
Operating Temperature
0 – 50°C
Storage Temperature
–20 – 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Plastic
Weight
0.19 kg ( 0.42 lb )
Dimensions (L x W x H)
8.32 x 14.76 x 4.80 cm (3.28 x 5.81 x 1.89 in.)
License
Max. No. Allowed
10 licenses
Note
Each time a mobile device connects to an ATEN Control Pad for remote control, one license on the Control Pad will be occupied. To purchase and add additional licenses to your ATEN Control Pad, contact your local sales representative for more information.
