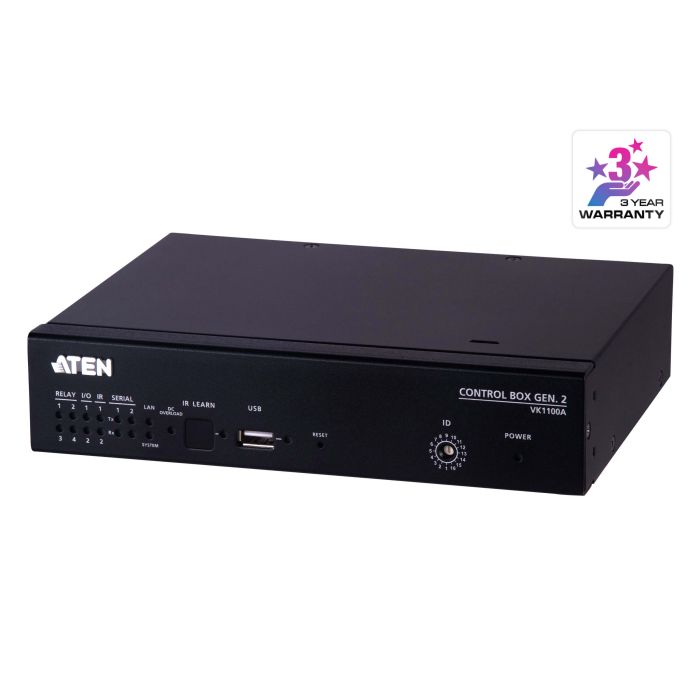

ATEN VK1100A Multi-interface Compact Control Box with 2 App licenses Gen 2

Name: ATEN VK1100A Multi-interface Compact Control Box with 2 App licenses Gen 2
Brand: Aten
SKU: VK1100A
Price: 1149.05 EUR
Availability: InStock

Be the first to review this product

€1,149.05 €949.63

Item in stock

ATEN Control System - Compact Control Box Gen. 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

VK1100A ATEN’s 2nd-generation Control Box equipped with a quad-core CPU, Gbps LAN, and 512MB memory size, provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. Its LAN can be connected to ATEN Unizon™, a centralized management platform streamlining daily AV / IT management that provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.

Features

High-performance processor embedded with quad-core CPU and 512MB memory for designing and controlling complex projects
Supports various interface connections for hardware-software integration and mobile device control
DC outputs for power supply connections
USB port for easy project upload
IR learning function for adding IR device drivers
Web Viewer – integrated with 3rd-party systems or any web-based console for easier room equipment management
Supports native KNX IP for building management systems
TCP, UDP, Telnet, HTTP, HTTPS, WebSocket, ONVIF, and PJLink compliant
Supports Pronto formatted IR codes - IR command codes can be entered in Hex format
Supports Modbus protocol - enables integration with Modbus devices, including TCP, RTU and its checksum data
Supports Telnet CLI (command-line interface) mode for third-party system integration
Supports centralized control and management by ATEN Unizon™
Supports project file backup
Web GUI for easy system configuration
Supports SSH communication for convenient data monitoring
LED indication of connection and hardware status
2 free licenses for mobile control*

Note: If you require more than 2 licenses, contact the local sales representative. For more information on licenses, see Specifications.

Diagram

Content

1x VK1100A Compact Control Box Gen. 2
1x power cord
1x foot pad set (4 pcs)
1x terminal block kit
1x user instructions

Specifications

Memory
SDRAM	512MB
Flash	8GB
Interfaces
Serial	• 1 x Programmable Bi-directional RS-232/422/485 Port (1 x 5-Pole Terminal Block Connector, configurable via pin assignments); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd; – Flow Control: None (default) or RTS/CTS • 1 x Bi-directional RS-232 Port (1 x 3-Pole Terminal Block Connector); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd
IR/Serial	• 2 x Programmable IR / Uni-directional RS-232 Port (2 x 2-Pole Terminal Block Connector); IR: TTL level (0 to 5 V) – Carrier Frequency: 10KHz~455KHz; Serial: Uni-directional RS-232 (0 to 5 V) – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd
Relay	• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 2A
I/O	• 2 x Programmable Digital Input / Output Channel (1 x 3-Pole Terminal Block Connector); Digital Output: 300 mA sink from 24 VDC Digital Input: – VDC Mode Input Voltage Range: 0 to 24 VDC; Programmable Range: 1 to 24 VDC; – Dry Contact Mode Pull-up 2k ohms to + 12 VDC
Ethernet	• 1 x RJ-45 Female, 10/100/1000Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
VDC	• 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector); • Power Supply: 12 VDC, 1A Max
USB	1 x USB Type A
Switches
Power	1 x On/Off Switch
IR Learning	1 x IR Receiver LED
Reset Button	1 x Semi-recessed Pushbutton
Power Consumption	AC110V:4.3W:82BTU/h AC220V:4.5W:83BTU/h
Power
Maximum Input Power Rating	Internal Power: 100-240 VAC, 50-60 Hz
Environmental
Operating Temperature	0 – 50°C
Storage Temperature	–20 – 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	1.19 kg ( 2.62 lb )
Dimensions (L x W x H)	20.00 x 16.41 x 4.40 cm (7.87 x 6.46 x 1.73 in.)
License
Basic (free)	2 free licenses
Max. No. Allowed	16 licenses
Note	The ATEN Control Box comes with two free licenses which are stored in the device itself. Each time a mobile device connects to an ATEN Control Box for remote control, one license on the Control Box will be occupied. To purchase and add additional licenses to your ATEN Control Box, contact your local sales representative for more information.

Datasheet

ATEN VK1100A Datasheet
