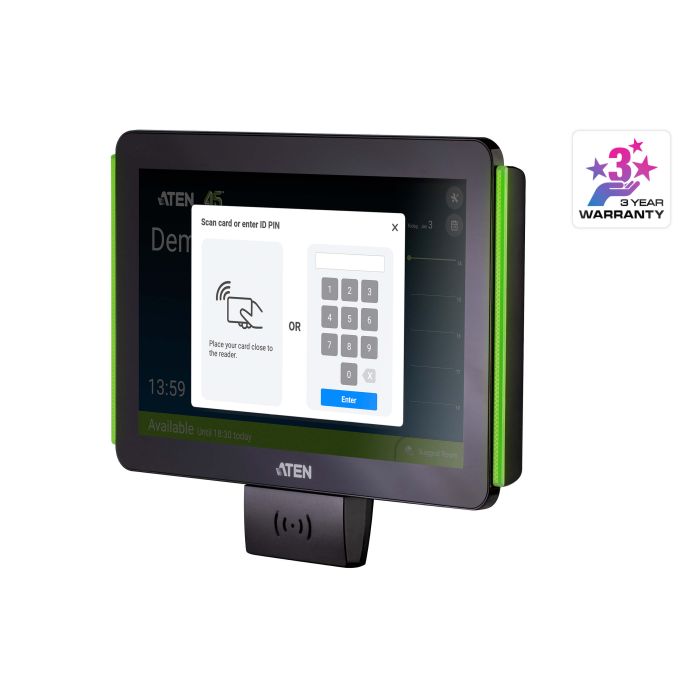

ATEN VK430 10.1” Touch Panel with Room Booking System

Be the first to review this product

€1,144.36 €945.75

Item in stock

Room Booking System - 10.1" RBS Panel

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

ATEN VK430 RBS Panel is a 10.1" touch-screen panel used to manage conference rooms, and is centrally configured by ATEN RBS Configurator – centralized management software of RBS Panels while integrating with calendar servers, such as Microsoft 365 Calendar, Google Workspace Calendar, and Microsoft Exchange Server – to provide convenient scheduling and availability allocation for all conference rooms in the system. That is, through a few simple taps, authorized personnel can make conference room reservations, extend or release room usage, and check the booking schedules of any conference room directly on the VK430 while enjoying its user-friendly interface. In addition, through ATEN RBS Configurator, administrators can have a centralized view of the availabilities and locations of all conference rooms in real time as well as manage each VK430 connected from afar, elevating meeting room utilization efficiency. In conjunction with the VK401, the system enables exclusive card-access functionality. This allows authorized users to efficiently book and check in meeting rooms, thereby contributing to the streamlined automation of conference room operations.

Features

10.1” capacitive touch-screen panel
Supports integration with calendar servers, such as Microsoft 365 Calendar, Google Workspace Calendar, and Microsoft Exchange Server
Supports RBS Configurator for batch upgrade, customizable booking options, and calendar settings
In conjunction with the VK401, the system enables exclusive card-access functionality; only authorized users can scan cards to book and check in meeting rooms and facilitate conference room automation
Supports central management through ATEN Unizon to allow administrators to monitor managed devices in real time, generate room usage analyses, and update app in batch
Support TCP protocol for third-party system integration
Supports Power over Ethernet (PoE), which allows it to receive power and communication over a single Ethernet cable
LED light bars illuminating user-defined colors to indicate the room’s availability at a glance
Preinstalled with a wall mount kit and provided with 3M VHB™ Tape for easy mounting onto a hard or glass wall
75*75 mm VESA-compliant for flexible mounting across various installation scenarios

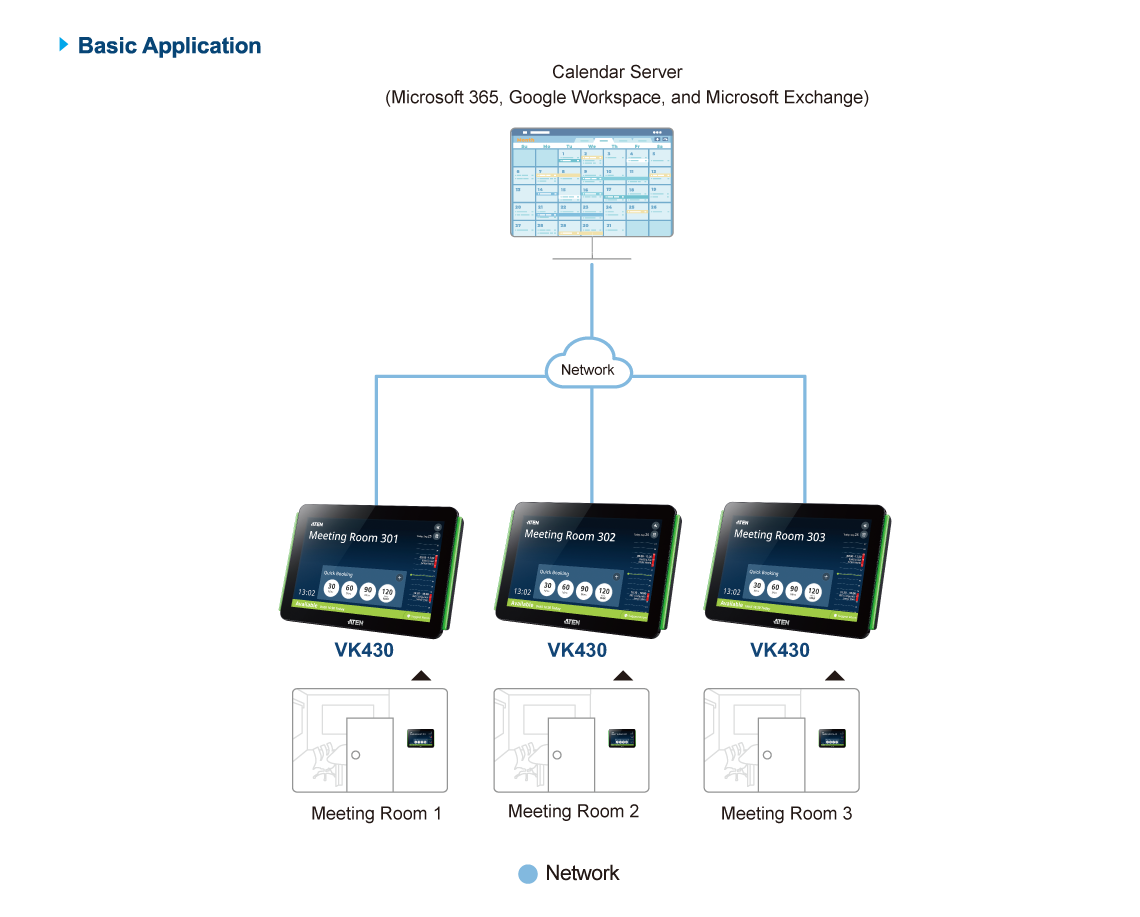

Diagram

Content

1 x VK430 10.1" RBS Panel with 2 x LED light bars
1 x wall mount kit
2 x 3M glass mount tape
1 x 90° RJ-45 cable adapter
1 x user instructions

Specifications

Processor	Quad-core
Memory
SDRAM	2GB
Flash	16GB
Panel Spec
Display Type	TFT-LCD
Size	10.1"
Touch Screen	Capacitive
Resolution	1280 x 800
Aspect Ratio	16 : 10
Color Depth	8 bit
Contrast Ratio	800 : 1
Backlight	LED
Viewing Angle	± 85° (H), ± 85° (V)
Luminance	500 cd/m²
Interfaces
Ethernet	1 x RJ-45 Female, 10 / 100 / 1000 BaseT
USB	1 x USB Type A
Power Inputs
Power over Ethernet (PoE)	802.3 at PoE+
Power Consumption	DC12V:17.8W:60.70BTU/h POE:20W:68.24BTU/h
Environmental
Operating Temperature	0 – 40°C
Storage Temperature	–10 – 55°C
Humidity	10 - 80% RH, Non-Condensing
Physical Properties
Housing	Plastic
Weight	0.68 kg ( 1.5 lb )
Dimensions (L x W x H)	26.30 x 17.78 x 2.45 cm (10.35 x 7 x 0.96 in.)
Note	No license is required for running ATEN Room Booking System. However, additional costs may be charged for the resource accounts by the calendar service provider.

Datasheet

ATEN VK430 Datasheet
