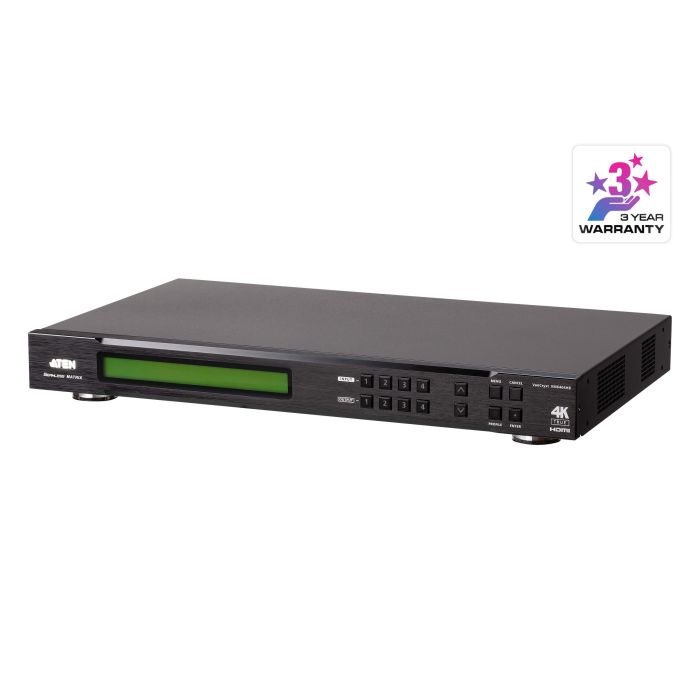

True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN’s VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.
Features
4 x 4 HDMI input/output connections
Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 control, and Ethernet connection for web GUI or Telnet
View and control via ATEN Video Matrix Control App in a swift and agile way
True 4K Resolutions –handles uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4)
4K Scaler –features a 4K video scaler to convert input resolutions to the optimum display resolutions
Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
Video Wall –allows you to create custom video wall layouts via intuitive web GUI*
True 4K EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Audio-enabled – HDMI audio can be extracted to stereo audio
HDMI (3D, Deep color, 4K); HDCP 2.2 compatible
Consumer Electronics Control (CEC) support
ESD protection for HDMI
Rack-mountable (1U design)
*Note: 1.When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats,make sure to disable Seamless Switch™. 2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device

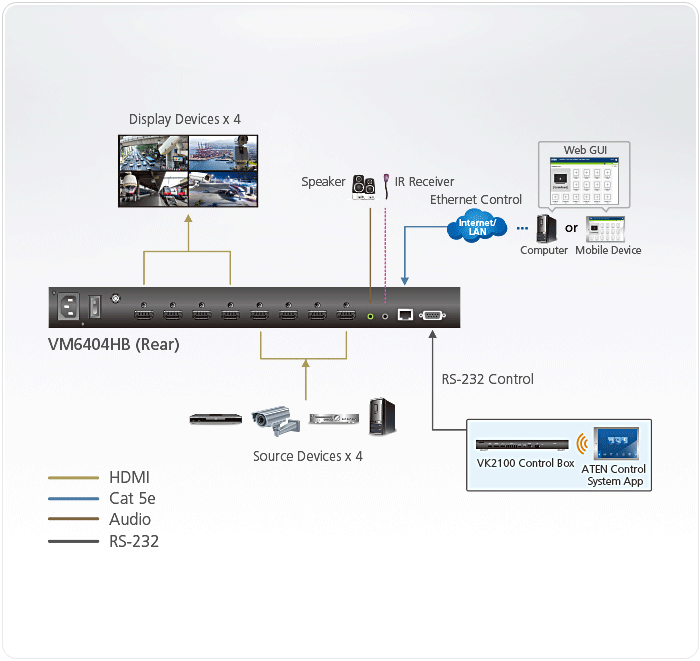

Diagram
Content
1x VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x KC06-0012-B07G Mounting Kit
1x User Instructions
Specifications
Video Input
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5.0 m
Video Output
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 Ω
Max. Distance
5.0 m
Video
Max. Data Rate
18.0 Gbps (6.0 Gbps per lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance
Up to 5.0 m
Audio
Output
1x Mini Stereo Jack Female
Control
RS-232
Connector: 1 x DB-9 Female (Black); Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No
