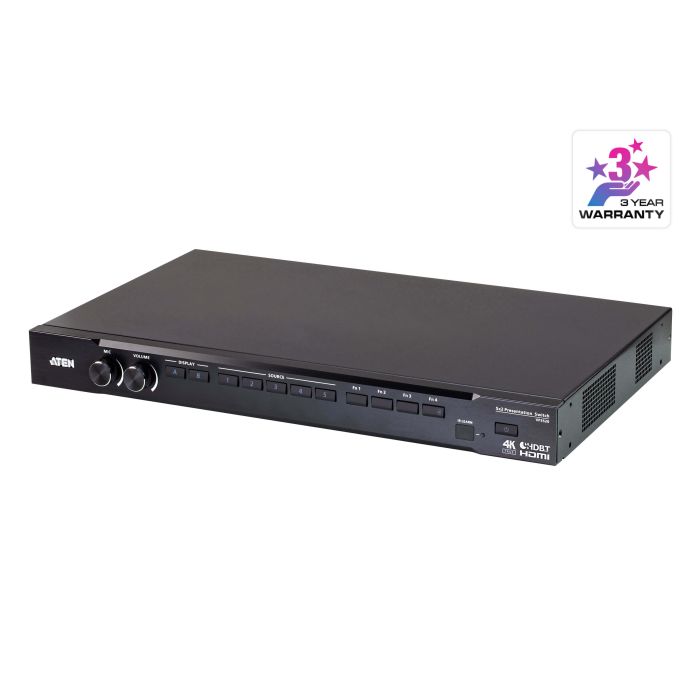

The ATEN VP3520 is a multi-in-one presentation matrix switch that integrates a video matrix switch, 4K scaler, HDBaseT extender, and audio DSP functions into one compact device that easily mounts under a table or in a rack. The VP3520 seamless presentation matrix switch with control features the True 4K video resolutions of 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) and HDR technology, guaranteeing crystal-clear images across two displays. The VP3520 supporting 4K @ 60 Hz, HDMI, and HDCP 2.2 features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance 4K scaler, the VP3520 easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across the two displays.
Features
Display Control
Auto display on / off control – supports display control through CEC, IR, RS-232, PJLink and controls projector screen through relay port
Flexible control methods – triggered by source detection or 4 function keys on front panel
Audio embedding – stereo audio can be embedded into display output or separated to stereo line out and coaxial audio output
Audio de-embedding – HDMI / HDBaseT audio can be extracted to stereo line out
Built-in Audio DSP – supports microphone input with selectable 48 V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output
Automatically reduces program audio when a microphone signal is detected
Auto switching – automatically detects and switches to a new source as soon as it is connected
Audio amplifier – 2 x 10 W built-in power amplifier with speaker outputs on terminal block connectors
High-Definition Video with Optimum Output
Superior video quality – True 4K resolutions up to 4096 x 2160 @ 60 Hz (4:4:4) (HDMI) / 4096 x 2160 @ 60 Hz (4:2:0) (HDBaseT)
Supports 4K HDR
4K Scaler –features a 4K video scaler to convert input resolutions to the optimum display resolutions
Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
EDID Expert™ –automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across the connected devices
HDMI; HDCP 2.2 compliant
Versatile, Streamlined Operation
Multiple control options – flexible control via front-panel pushbuttons, IR remote control, RS-232, and web-based GUI through Ethernet
View the device status and control it via ATEN Video Presentation Control App in a swift and agile way
RS-232 and IR channel – allows AV device control over HDBaseT connection without additional cabling
Supports stand-by mode for power saving and fast waking up
Consumer Electronics Control (CEC) support
Extended Transmission over One Cable
Power over HDBaseT (PoH) – remote powering over existing communication cable with selectable powering device
Long-distance transmission – transmits digital AV signal, RS-232 commands, and IR control signals up to 70 m* via Cat 6/6a or ATEN 2L-2910 Cat 6 cables through HDBaseT Out port
Note: This is achieved using both the HDBaseT In and the HDBaseT Out ports on the VP3520 with each extending the transmission up to 70 m.
Diagram
Content
1x VP3520 5 x 2 True 4K Seamless Presentation Matrix Switch with Control
1x IR receiver
1x IR remote control
1x power cord
3x 2-pole terminal blocks
3x 3-pole terminal blocks
1x 4-pole terminal block
1x rack mount kit
1x foot pad set (4 pcs)
1x user instructions
Specifications
Video Input
Interfaces
3 x HDMI Type A female (Black) 2 x HDBaseT (RJ-45) Female (Silver) with PoH
Max. Distance
HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video Output
Interfaces
1 x HDMI Type A female (Black) 1 x HDBaseT (RJ-45) Female (Silver) with PoH
Max. Distance
HDMI: 4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at 15m HDBaseT: 4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60Hz at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
Video
Max. Resolution
HDMI: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) HDBaseT: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) ; Up to 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Compliance
HDMI; 4K HDR HDCP 2.2 Compatible; Consumer Electronics Control (CEC)
Audio
Output
Line Out (Unbalanced): 1 x Captive Screw Connector, 3-pole Digital Audio: 1 x Coaxial Amplifier out: 1 x Captive Screw Connector, 4-pole
Input
Stereo Audio (HDMI/HDBT): 1 x mini stereo Jack female (Green) Microphone: 1 x Captive Screw Connector, 3-pole (with selectable phantom power)
Control
RS-232
1x DB-9 Female (Black); VP device control & configuration 1 x Captive Screw Connector, 3-pole ; AV device control
IR
1 x Mini Stereo Jack Female (Black); VP device control 1 x Captive Screw Connector, 2-pole; AV device control
Ethernet
1 x RJ-45 Female (Silver); Support PJLink protocol
Interfaces
Relay
2 x Captive Screw Connector, 2-pole
Switches
Power
1 x Pushbutton (LED: Green / Orange) 1 x Slide Switch (+48V Phantom Power)
Video Input Port Selection
5 x Pushbutton (LED: Green)
Video Output Port Selection
2 x Pushbutton (LED: Orange)
Selection
Mic: 1 x Knob Volume: 1 x Knob Mode / Unlock: 1 x Pushbutton Function keys: 4x Pushbutton
EDID Settings
EDID Mode: ATEN Default / Display A / Remix
Connectors
Power
1 x 3-Prong AC Socket
Power Consumption
AC110V:46.7W:314BTU/h AC220V:45.8W:310BTU/h
Environmental
Operating Temperature
0-40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
3.80 kg ( 8.37 lb )
Dimensions (L x W x H)
43.24 x 27.23 x 4.40 cm (17.02 x 10.72 x 1.73 in.)
