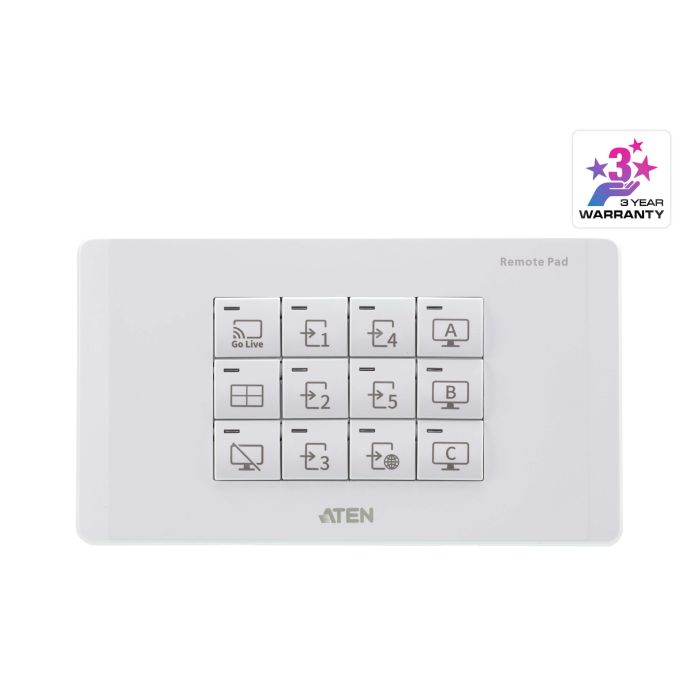

The VPK312 is a 12-key, network-based remote pad designed for use with ATEN Presentation Switches. It offers an intuitive interface for function control of the connected Presentation Switch from a standard 2-gang EU wallmounted keypad. Created with flexibility in mind, the functions and layout of the keys can be easily customized via an intuitive web GUI to meet different application requirements.
Features
12-key Network Remote Pad for ATEN Presentation Switches
Easy pairing with a Presentation Switch via the host Presentation Switch's web console
Effortless configuration via the intuitive web GUI
Fully customizable for the functions and layout of the keys
Dual-color button LEDs for clear indication and visibility
Power redundancy supported when both DC power and Power over Ethernet (PoE) are supplied
Convenient reset of system and network settings using the built-in reset button
Firmware upgradable
Engraved buttons for intuitive port indication and operation
Note: VPK312K1 provides 29 engraved buttons to support multiple function control with VP2730.
Diagram
Content
1x VPK312 12-Key Network Remote Pad
1x Faceplate
1x Pack of Button Caps
1x 0AD6-1705-10EG Power Adapter
1x JCNT-3301-102G 2-pole Terminal Block
1x User Instructions
Specifications
Interfaces
Keypad Layout
12 engraved buttons
Ethernet
• 1 x RJ-45 Female, 10/100Base-T • Supported Protocol: DHCP, HTTP/ HTTPS • DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0
