Aten VS0108HA 8Port HDMI Splitter 4K/2K

Name: Aten VS0108HA 8Port HDMI Splitter 4K/2K
Brand: Aten
SKU: VS0108HA
Price: 234.14 EUR
Availability: InStock

Be the first to review this product

€234.14 €193.50

Item in stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The VS0108HA HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high defi nition video to eight HDMI displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS0108HA HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Voor meer informatie

Features

Connects one HDMI source to eight HDMI displays at the same time
HDMI (3D, Deep, Color, 4kx2k); HDCP Compatible
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Features EDID Expert technology :
• EDID Library with default EDID configurations
• Built-in EDID Mode selection
• Copies a display's EDID to the source device
Built-in bi-directional RS-232 serial control port for high-end system control
Supports Dolby True HD and DTS HD Master Audio
Long distance transmission – up to 15 m (24 AWG)
Supports up to 340MHz bandwidth for high performance video
Signaling rates up to 3.4 Gbits
Plug-and-play – no software installation required

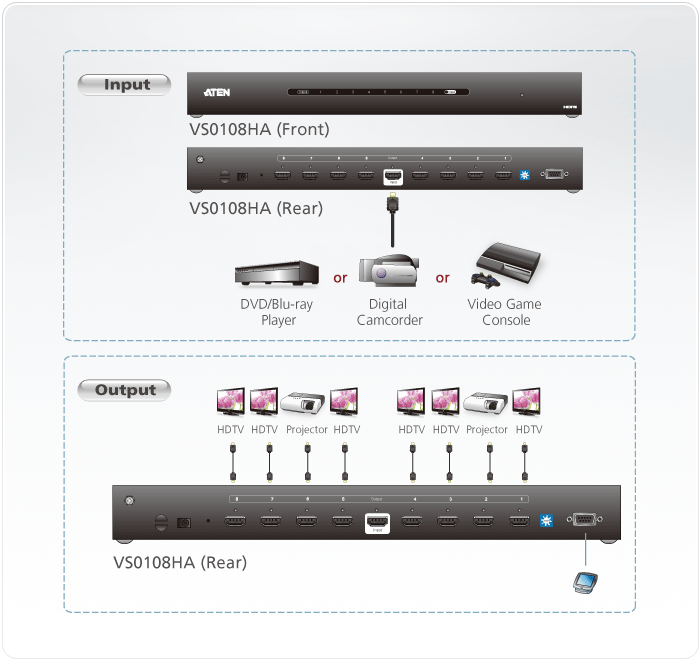

Diagram

Content

1x VS0108HA 8-Port HDMI Splitter
1x Power Adapter
1x Mounting Kit
1x User Instructions

Specifications

Display Connections			8
Connectors	Device	HDMI In	1 x HDMI Type A Female (Black)
	Display	HDMI Out	8 x HDMI Type A Female (Black)
	Power		1 x DC Jack
LEDs	Power		1 (Green)
	Input		1 (Green)
	Output (1-8)		8 (Green)
Video			4k x 2k, 1080p
Power Consumption			DC5V, 14.84W
Environment	Operating Temp.		0-50°C
	Storage Temp.		-20-60°C
	Humidity		0–80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		1.74 kg
	Dimensions (L x W x H)		43.72 x 15.78 x 4.40 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
